HEPD 80 Flush Mounting Kit NHA58709
Instruction Bulletin 01/2016
© 2016 Schneider Electric USA, Inc. All Rights Reserved6
For troubleshooting, call the Surgelogic Technical Assistance Group at 1-800-577-7353.
ENGLISH
18. Connect the ground wire from the SPD to the grounding lug located in the power
panel. See Figures 10 and 11.
19. Connect the SPD black wires now located in the power panel to a 20 amp
two-pole circuit breaker. See Figures 10 and 11.
NOTE: Confirm that the two-pole circuit breaker is in the OFF position prior to
installing the wires.
20. Connect the SPD white wire now located in the power panel to the neutral bus.
See Figures 10 and 11.

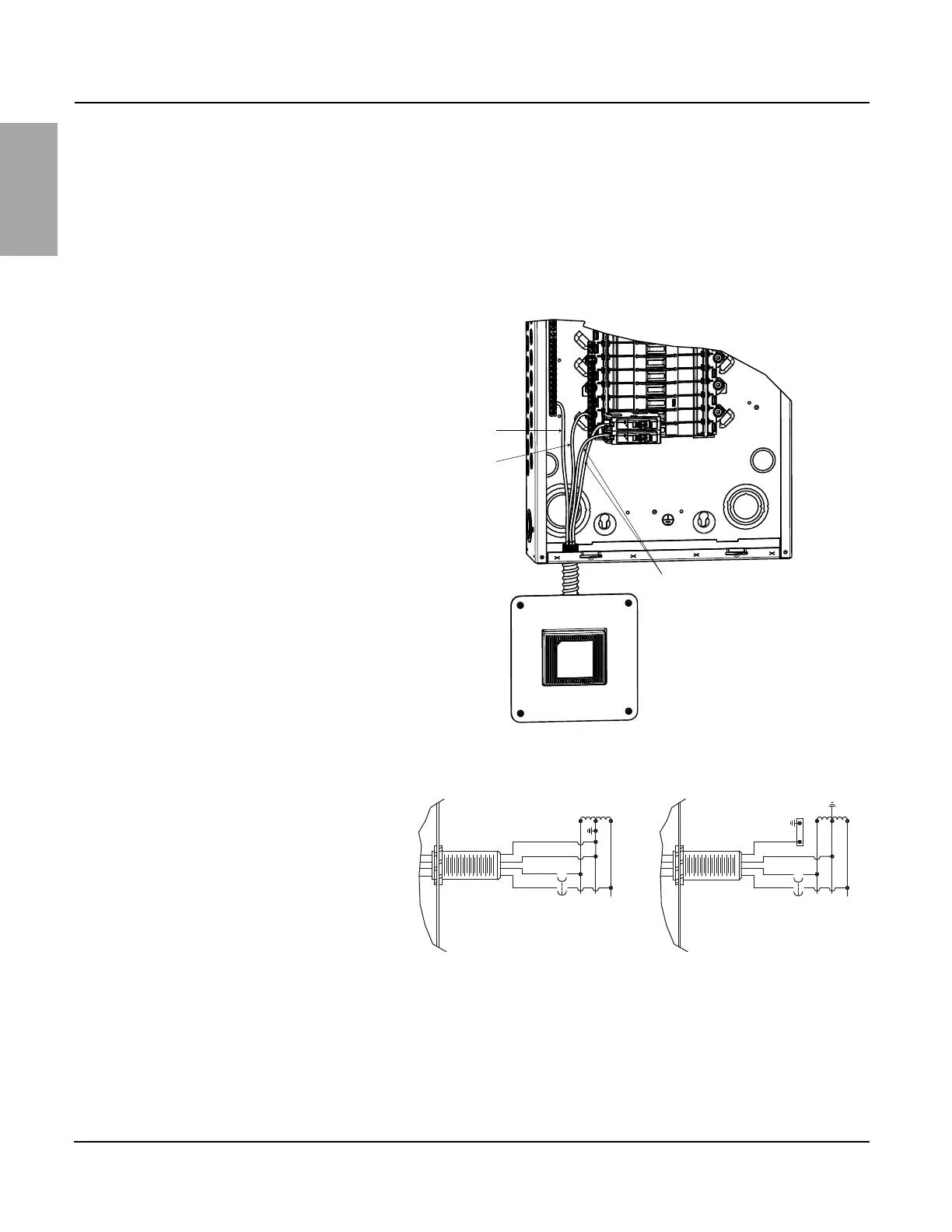

Figure 10: HEPD Layout
Figure 11: Typical AC Surge Module Wiring Connection Diagrams
Black
White
Green
Service Entrance
without Grounding Bar
120/240 V
1Ø, 3-Wire Circuit
Sub-Panel or
Service Entrance
with Grounding Bar
120/240 V
1Ø, 3-Wire Circuit
Black
Black
White
Green
L2 N L1 L1
Equipment
Grounding Bar
OCPD
OC
P
D
NL2
Green
White
Black
Black
Released for Manufacturing
Printed on 2016/08/08
