NHA58709 HEPD 80 Flush Mounting Kit
01/2016 Instruction Bulletin
© 2016 Schneider Electric USA, Inc. All Rights Reserved
5
For troubleshooting, call the Surgelogic Technical Assistance Group at 1-800-577-7353.
ENGLISH

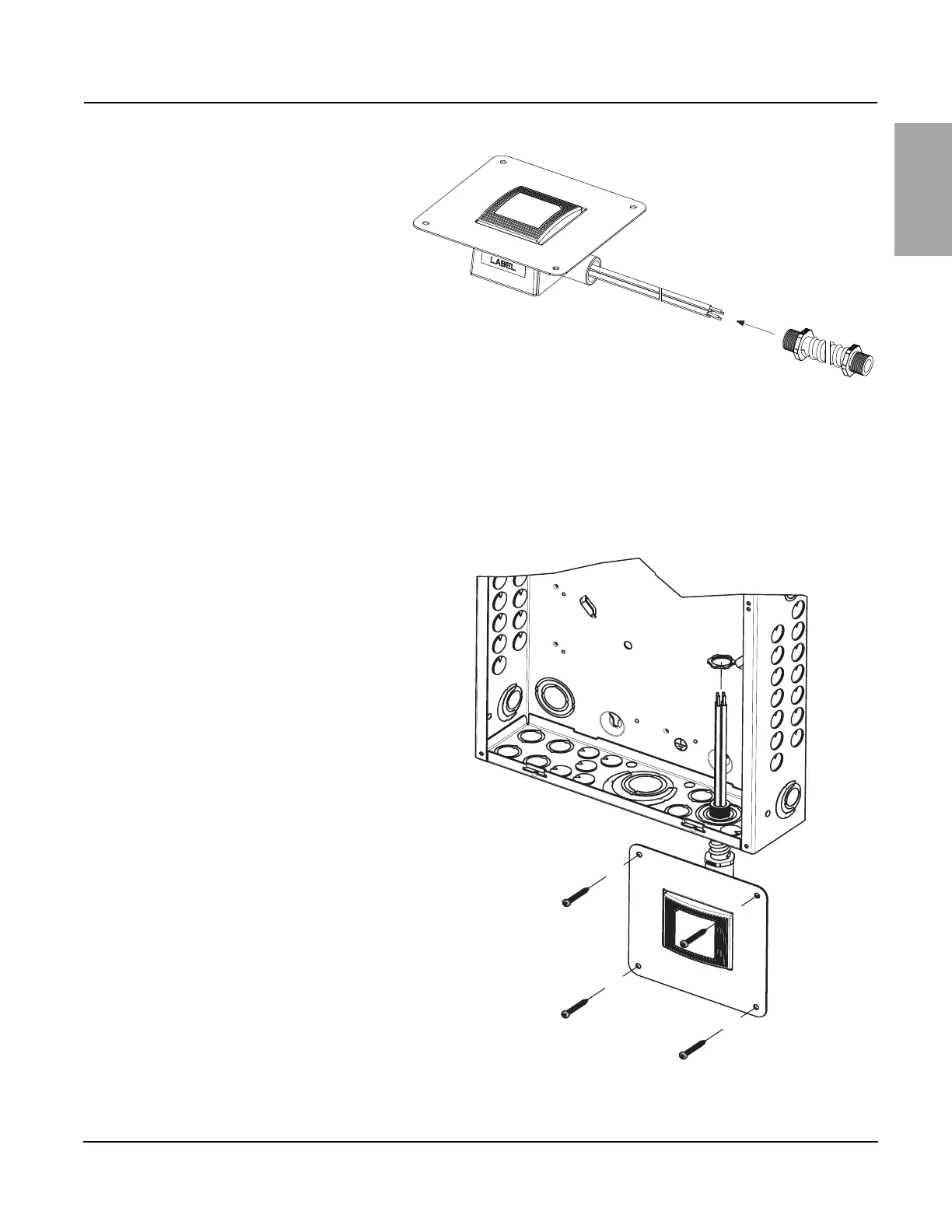

Figure 8: Coupling Installation
16. Thread the wires and SPD assembly through the hole in the wall and through the
knockout of the load center. Slip the lock nut over the wires and secure the
conduit in place, as shown in Figure 9.
17. Secure the mounting bracket to the wall using the four screws provided. See
Figure 9.
Figure 9: Attach the Conduit
Released for Manufacturing
Printed on 2016/08/08
