HEPD 80 Flush Mounting Kit NHA58709
Instruction Bulletin 01/2016
© 2016 Schneider Electric USA, Inc. All Rights Reserved4
For troubleshooting, call the Surgelogic Technical Assistance Group at 1-800-577-7353.
ENGLISH

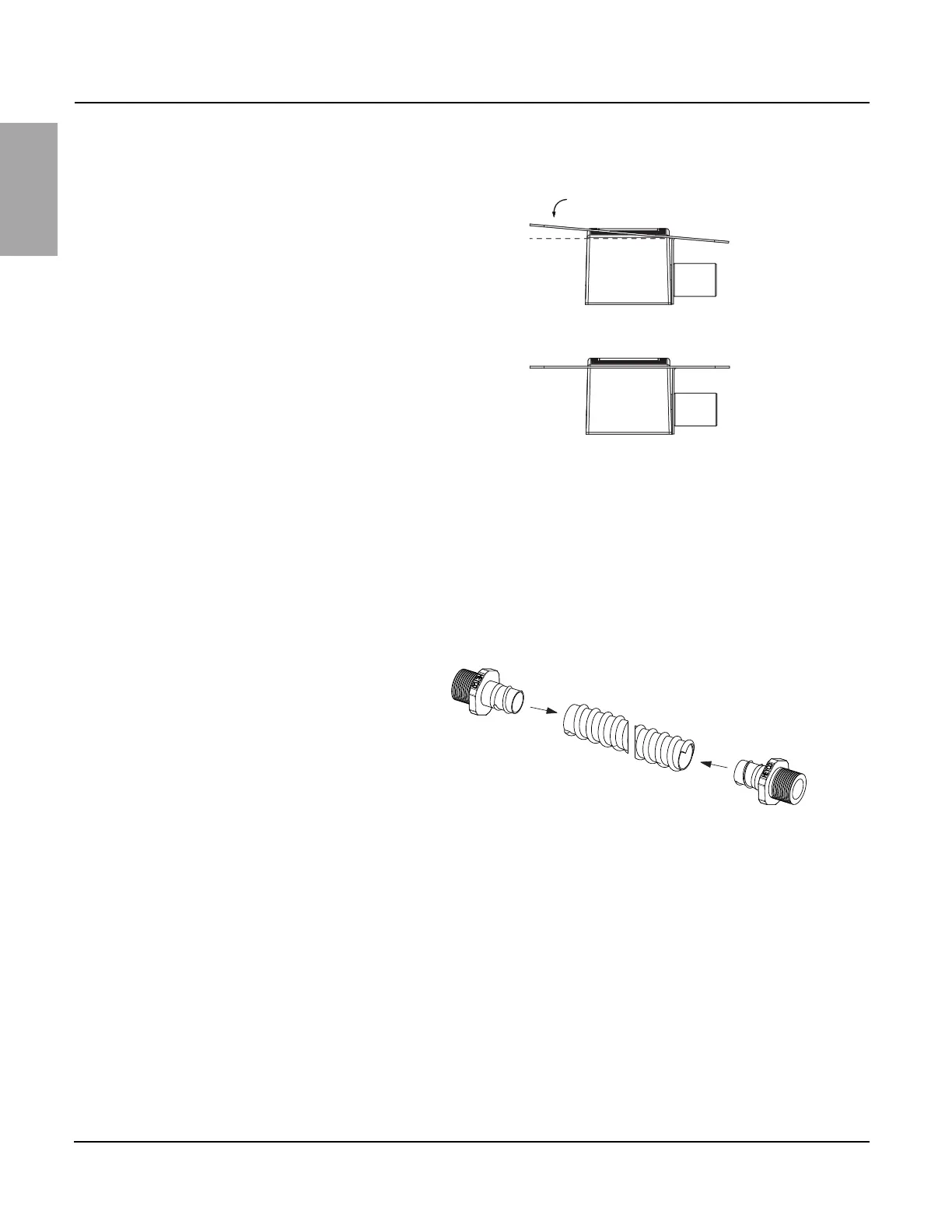

12. Carefully flex the bracket onto the SPD, as shown in Figure 6.
Figure 6: Bracket Flexing
13. Cut the flexible conduit to the appropriate length to accommodate the installation.
Note: The length of conduit will be the same as the offset distance from the
bottom of the load center, as identified in step 1. See Figure 1.
Example: If the offset distance from the bottom of the load center is three inches,
the conduit length should also be three inches.
14. Install the two flex conduit fittings onto each end of the flex conduit.
See Figure 7.
Figure 7: Coupling Installation
15. Thread the flex conduit assembly over the SPD wires and attach to the coupling
of the SPD assembly.
Note: Finger tighten the conduit coupling and tighten for an additional 1/4 turn.
See Figure 8.
Released for Manufacturing
Printed on 2016/08/08
