1765274 08/2012 15

9. Configuration

9. 1. Communication parameters

Configure the following parameters in the [1.9 - COMMUNICATION] (COM-) menu, [BACnet] (BACN) submenu.

These parameters can only be modified when the motor is stopped.

Modifications will be taken into account by the drive after power cycled.

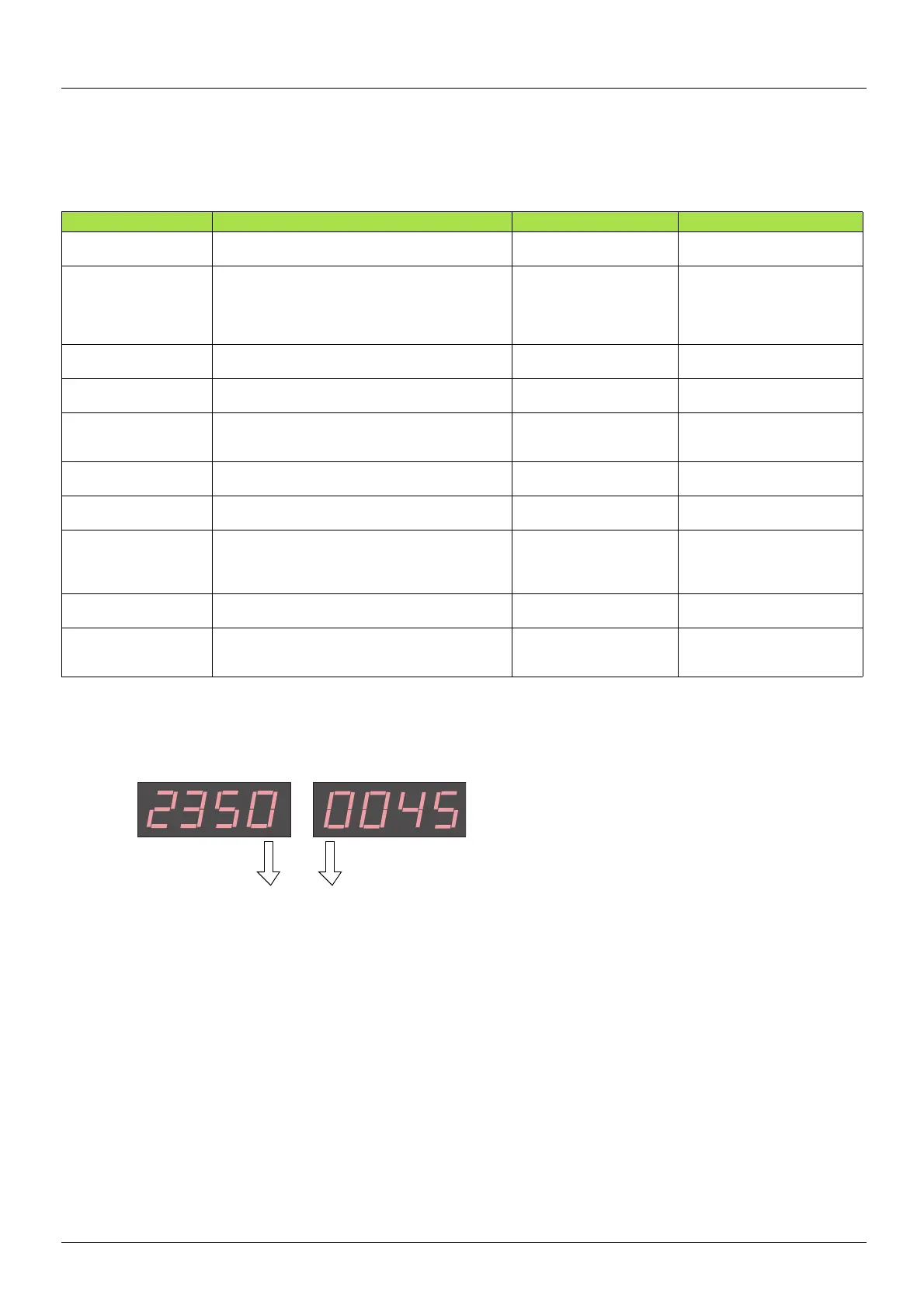

* : detail of the instance number edition on the local HMI.

(1)Sometimes also named BACnet device ID.

Example: 2350045 is the value for the instance number. On the local HMI INHP will receive the value of 2350 and INLP will receive 045.

(2)When defining this number ensure that its value is not lower than the device Address (ADRC) defined by switches. If this value is lower

than ADRC, an EPF2 fault will be generated.

(3)Max information frames defines max. number of frames that can be sent before passing token to next master.

Parameter Possible values Terminal display Default value

[Address]

(AdrC)

1 to 127 [1] (1) to [127] (127) Value taken from the address

switches

[Bit rate]

(Bdr)

AUTO

9600 bit/s

19200 bit/s

38400 bit/s

76800 bit/s

[AUTO] (AA)

[9600 Bd] (96)

[19200 Bd] (19 2)

[38400 Bd] (38 4)

[76800 Bd] (76 8)

[AUTO] (AA)

[Format]

(FOr)

[8-N-1] (8n1) [8-N-1] (8n1)

Display parameter (read only)

[Time - out]

(tLP)

Communication time-out in seconds x 0.1. 1 to 60s [1] (1) to [600] (600) [10] (10)

[Instance number]

(

InHP) and (InLP)

Device instance number: 0 to 4194303 (1)

INHP: 0 to 4194 *

INLP: 0 to 999

[1] (1)

[0] (0) to [4194] (4194)

[0] (0) to [999] (999)

[1] (1)

[0] (0)

[1] (1)

[Max Master]

(MMn)

Max Master device address on the MS/TP subnet:

0 to 127 (2)

[0] (0) to [127] (127) [127] (127)

[Max Info frames]

(MIF)

Max information frames: 1 to 100 (3) [1] (1) to [100] (100) [10] (10)

[Data rate used]

(bdrU)

Displays the baud rate used on the BACNet

network, this value is useful when the baud rate

parameter is set to AUTO.

[9600] (96)

[19200] (19 2)

[38400] (38 4)

[76800] (76 8)

[Frame counter] (tFC) Displays the total number of frames received by the

communication card since the last power ON.

[Invalid Frame counter]

(EFC)

Displays the total number of bad frames received

by the communication card since the last power

ON.

4 digit

display

INHP INLP

[ Instance number ]
