14 1765274 08/2012

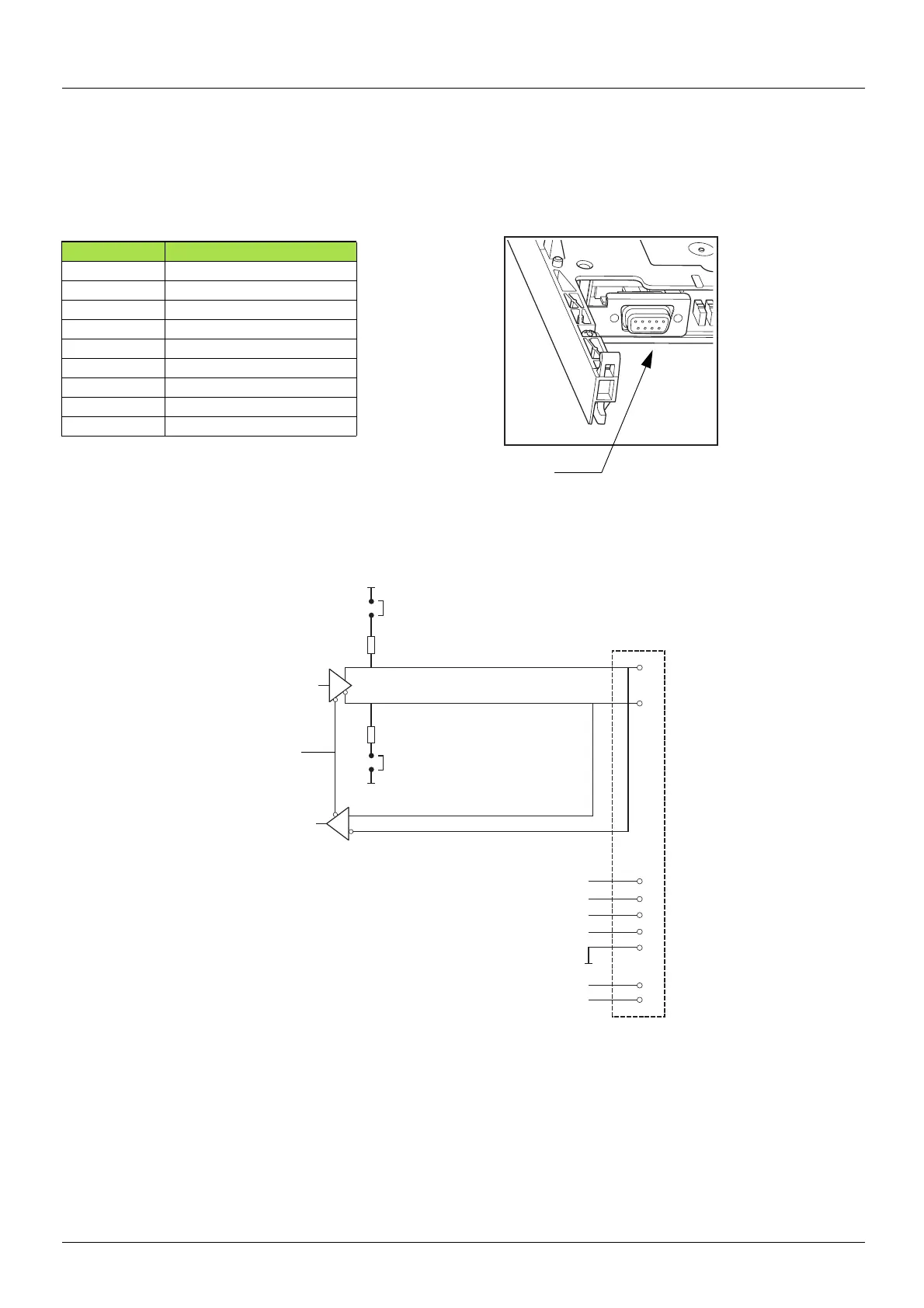

8. Connecting to the bus
8. 4. Dsub 9-pin connector
If you have the older option card VW3 A3 315:
The communication card has a Dsub 9-pin connector for connection to the network.
You can also use an additional Dsub 9-pin to open style adapter to connect the network cable to the card
Contact no. Signal
1 Reserved (do not connect)
2RXD0 = RD(A)
3-
4 Ground
5 RxD1 = RD(B)
6 RxD1 = RD(B)
7+
8 Reserved (do not connect)
9 Supply (5 V)
5 V
0 V
R
G
Tx
Rx
4.7 kΩ
4.7 kΩ
+ = D1 = B/B' = D(B)
7
3
5
6
2
4
- = D0 = A/A' = D(A)
0 V
Reserved
Reserved
Ground =
01
06
Reserved
Reserved
Reserved
Reserved
9
Polarization switch
Female 9-pin
Dsub
Enable
Pull-down polarization resistor
Polarization switch
Pull-up polarization resistor
Dsub 9-pin connector
