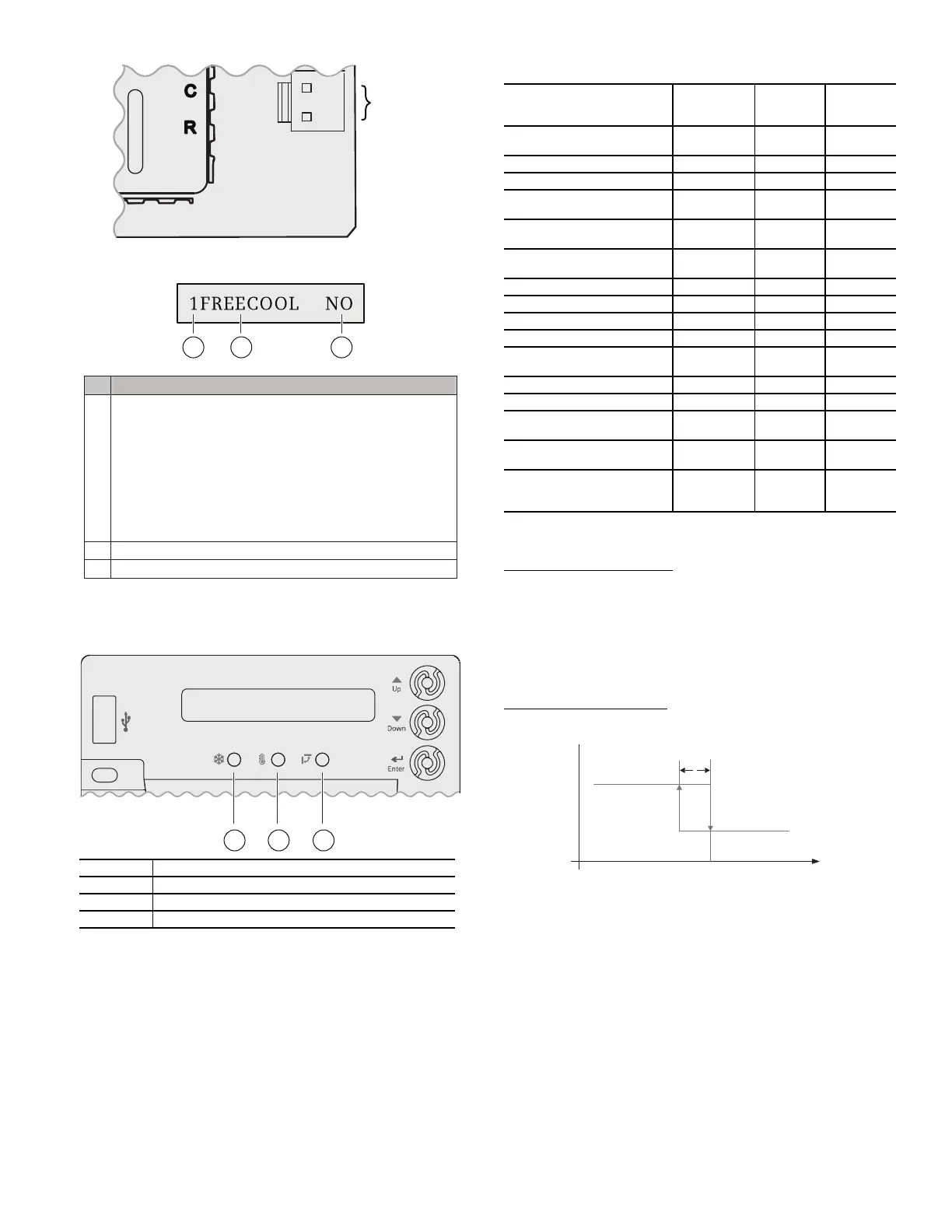

Fig. 67 — Powering the Economizer Controller
Fig. 68 — Menu Structure Descriptions
Fig. 69 — LED Indication
Functions
Free Cooling Economizing
Free cooling uses unconditioned outside air to cool the space di-
rectly. The economizer controller enables or disables free cooling
after it judges which control mode is active. It also uses hysteresis
to ensure a smooth switchover.
Depending on the sensors that are used, there are 4 different con-
trol modes. In different control modes, the assessed conditions are
different. See Table 5.
Default Hysteresis Setting
Hysteresis setting (DB) defaults to 2°F (–16.6°C). See Fig. 70.
Fig. 70 — Hysteresis Settings
Power
No. Description
1 Number representing the first-level menu of Status Display. Different
numbers represent different menus:
1: Status Display
2: Basic Settings
3: Advanced Settings
4: Alarms
5: Enter Configuration State and Reset
6: I/O Config
7: Testing
8: Enter Running State
2 Submenu*
3 Value of the current submenu*
12 3
*See Setup and Configuration on page 52 for detailed submenus, together
with possible values or ranges.
NO. DESCRIPTION
1 Free Cooling LED
2 Sensor LED
3 DAC LED
123
Table 4 — LED Indication
STATUS
FREE
COOLING
LED
SENSOR
LED
DAC LED
Commissioning mode
Yellow
Blinking
Yellow
Blinking
Yellow
Blinking
Power start-up Yellow On Yellow On Yellow On
Free cooling is running Green On — —
Free cooling is available
but not running
Green
Blinking
——
Not economizing when it
should
Red Blinking — —
Economizing when it
should not
Red On — —
Sensor working okay — Green On —
Humidity sensor error —Yellow On—
CO
2
sensor error —LED Off—
Air temperature fault/failure — Red On —
Excess outdoor air —
Red
Blinking
—
Damper working okay — — Green On
Damper not modulating — — Red On
Damper slippage ——
Red
Blinking
Damper unplugged ——
Fast Red
Blinking
Terminal ACT-FB is
configured but no available
feedback signal
——LED Off
On
Off
ShutOff SP OAT
DB
LEGEND
OAT — Outside Air Temperature
DB — Deadband
SP — Set Point
