33

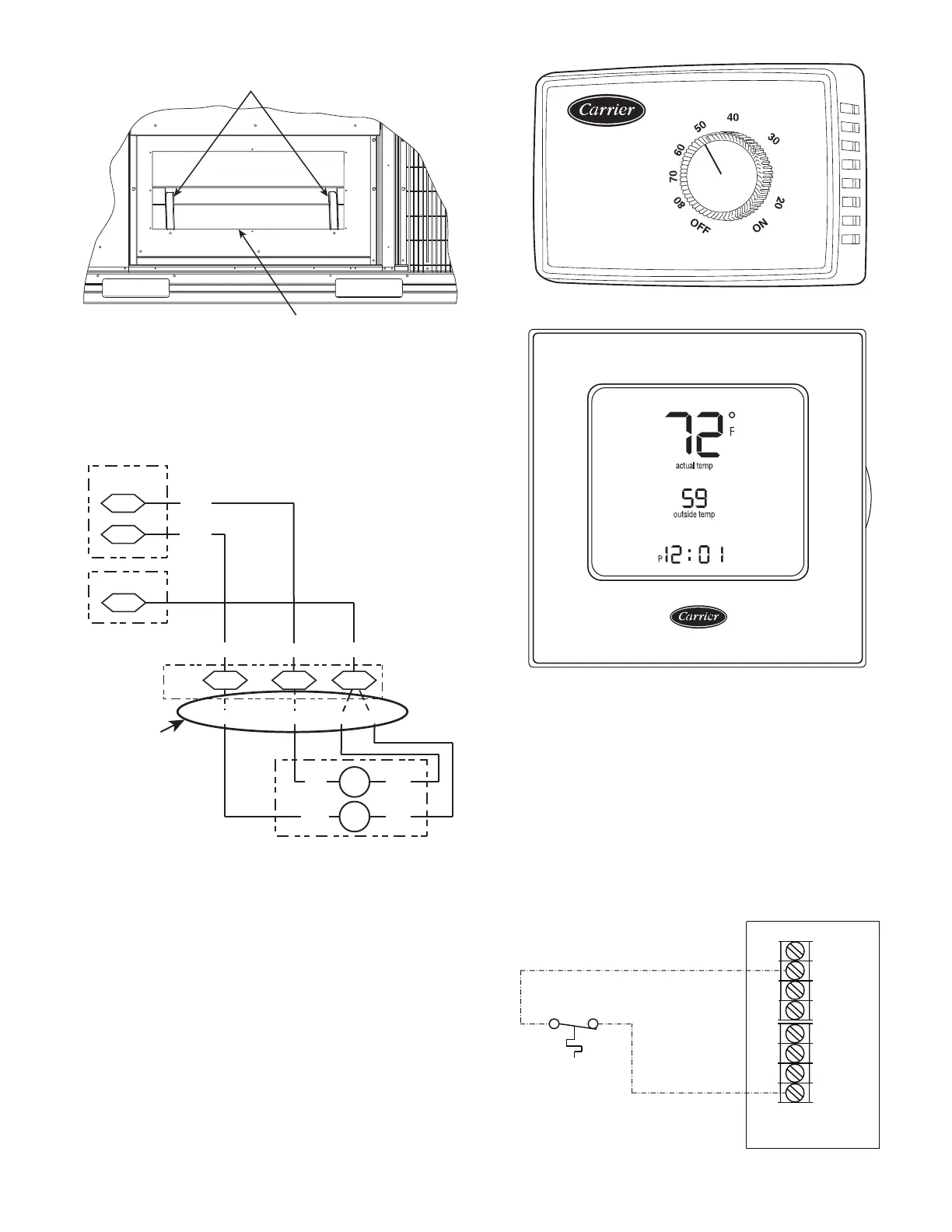

Fig. 51 — Electric Heater Compartment
(Cover Plate Removed)
Low-Voltage Control Connections
Locate the plug assembly in the electric heater section of the main
unit. Connect the plug with the mating low voltage plug located on
the heater. See Fig. 52.
Fig. 52 — Accessory Electric Heater
Control Connections
Humidi-MiZer Control Connections
HUMIDI-MIZER – SPACE RH CONTROLLER
NOTE: The Humidi-MiZer
®
system is a factory installed option
which is available for size 20, 24, 28 and 30 units equipped with
RTPF condenser coils.
The Humidi-MiZer dehumidification system requires a field-
supplied and installed space relative humidity control device. This
device may be a separate humidistat control (contact closes on rise
in space RH above control setpoint, see Fig. 53) or a combination
thermostat-humidistat control device such as Carrier’s Edge
®
Pro
Thermidistat™ device with isolated contact set for dehumidifica-
tion control (see Fig. 54). The humidistat is normally used in ap-
plications where a temperature control is already provided (units
with SystemVu™ control).
Fig. 53 — Accessory Field-Installed Humidistat
Fig. 54 — Edge
®
Pro Thermidistat
To connect the Carrier humidistat (HL38MG029):
1. Route the humidistat 2-conductor cable (field-supplied)
through hole provided in the unit corner post.
2. Feed wires through the raceway built into the corner post (see
Fig. 48) to the 24 v barrier located on the left side of the con-
trol box. The raceway provides the UL-required clearance
between high-voltage and low-voltage wiring.
3. Connect one of the leads from the 2-conductor cable to the
HUM terminal on the UCB (Unit Control Board). Connect
the other lead to the R terminal on the UCB. See Fig. 55.
Fig. 55 — Humidistat Connections to UCB
Electric Heater Tracks
Electric Heater
Opening
WHT HR1 BRN
UCB
Field
Connections
HR1: Heater Circuit 1
HR2: Heater Circuit 2
(if two-circuit module installed)
2
3
C
13
PNK
ORN
ORN
PNK BRN
WHT
BRN BRNVIO
2
TB4
VIO HR2 BRN
Elec Htr
TRAN 1
% RELATIVE HUMIDITY
®
Humidistat
Unit Control
Board
Thermostat
C
HUM
G
W2
W1
Y2
Y1
R
