Je bekijkt pagina 32 van 80
32

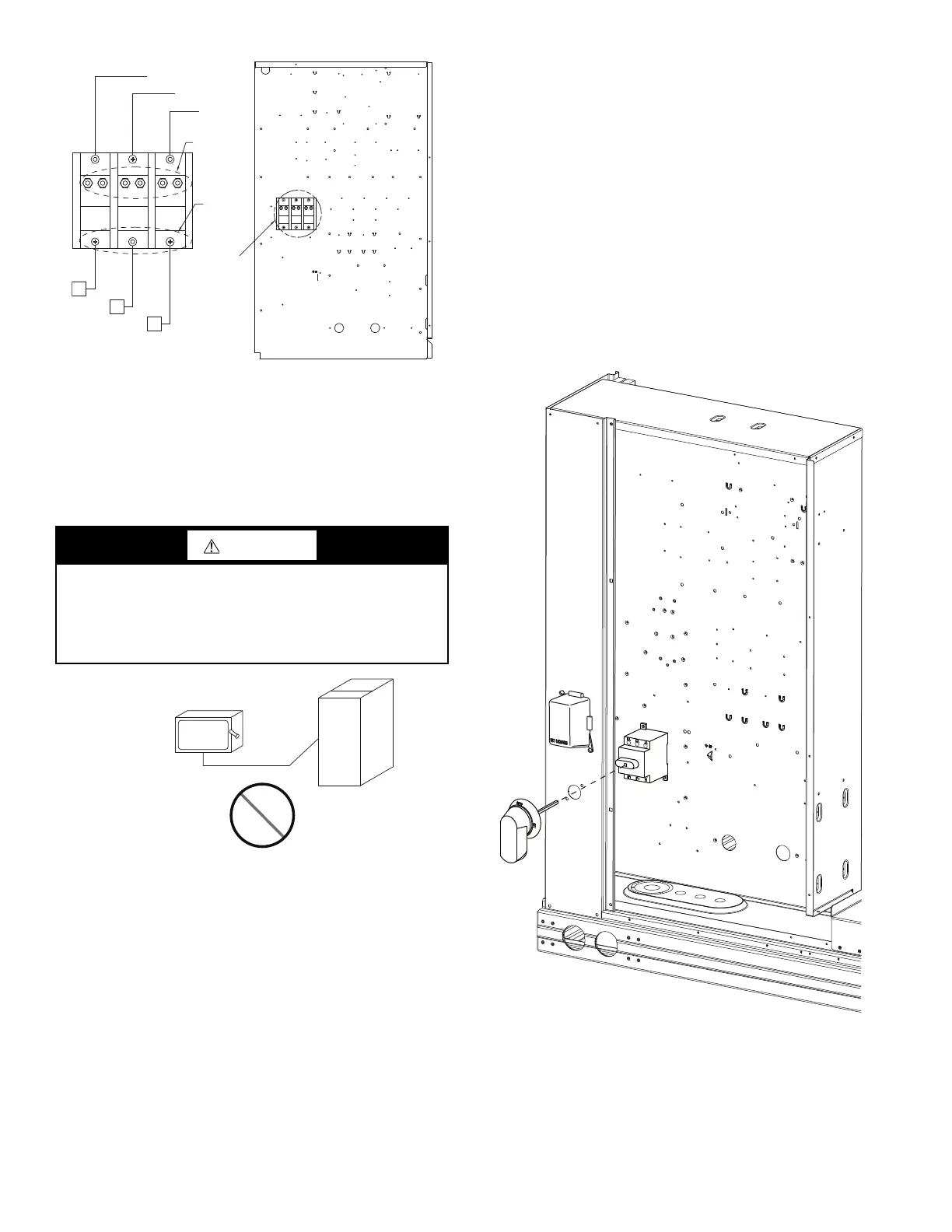

Fig. 44 — Location of TB1
Field power wires are connected to the unit at line-side pressure
lugs on the terminal block (see wiring diagram label for control
box component arrangement) or at factory-installed option non-
fused disconnect switch. Use copper conductors only. See Fig. 45.
NOTE: Make field power connections directly to line connection
pressure lugs only.
Fig. 45 — Disconnect Switch and Unit
UNITS WITHOUT FACTORY-INSTALLED NON-FUSED
DISCONNECT
When installing units, provide a disconnect switch of adequate
size per NEC (National Electrical Code). Disconnect sizing data is
provided on the unit informative plate. Locate on unit cabinet or
within sight of the unit per national or local codes. Do not cover
unit informative plate if mounting the disconnect on the unit
cabinet.
UNITS WITH FACTORY-INSTALLED NON-FUSED
DISCONNECT
The factory-installed option non-fused disconnect switch (NFD) is
located in the main control box. The manual switch handle and
shaft are shipped in the control box and must be mounted on the
corner post adjacent to the control box (see Fig. 46). Note that the
tape covering the hole for the shaft in the corner post must be re-
moved prior to handle and shaft installation.
To field install the NFD shaft and handle:
1. Open the control box panel.
2. Make sure the NFD shipped from the factory is at OFF posi-
tion (the arrow on the black handle knob or on the silver
metal collar is at OFF).
3. Insert the shaft with the cross pin on the top of the shaft in the
horizontal position.
4. Measure the tip of the shaft to the outside surface of the cor-
ner post to be 0.88 inches.
5. Tighten the locking screw to secure the shaft to the NFD.
6. Turn the handle to the OFF position with red arrow pointing
at OFF.
7. Install the handle on to the corner post vertically with the red
arrow pointing up.
8. Secure the handle to the corner post with (2) screws and lock
washers supplied.
Fig. 46 — Handle and Shaft Assembly for NFD
ALL UNITS
All field wiring must comply with NEC and all local
requirements.
Size wire based on MCA (Minimum Circuit Amps) on the unit in-
formative plate. See Fig. 47 for power wiring connections to the
unit power terminal blocks and equipment ground. Maximum
wire size is 2/0 AWG per pole.
WARNING
FIRE HAZARD
Failure to follow this warning could result in personal injury,
death, or property damage.
Do not connect aluminum wire between disconnect switch and
unit. Use only copper wire.
Load
Side
See
Detail A
Detail A
Line
Side
BLK
YEL
BLU
Control Box
L3
L2
L1
Copper
Wire Only
Electric
Disconnect
Switch
Aluminum
Wire
