Horizontal Configuration Units
For horizontal configurations, if removal of the blower assembly
becomes necessary, follow these steps:
1. Disconnect the motor power wires from the motor terminals
before removing the motor from the unit.
2. Shut off the main power supply to the unit and apply lock-
out/tag-out procedures.
3. Remove the three screws located on the motor side of the
blower assembly. See Fig. 52.
4. Twist and pull blower back from welded pins located on
opposite side to the motor, near the evaporator. See Fig. 52.
Ensure all steps are followed for safe and efficient removal of the
blower assembly.

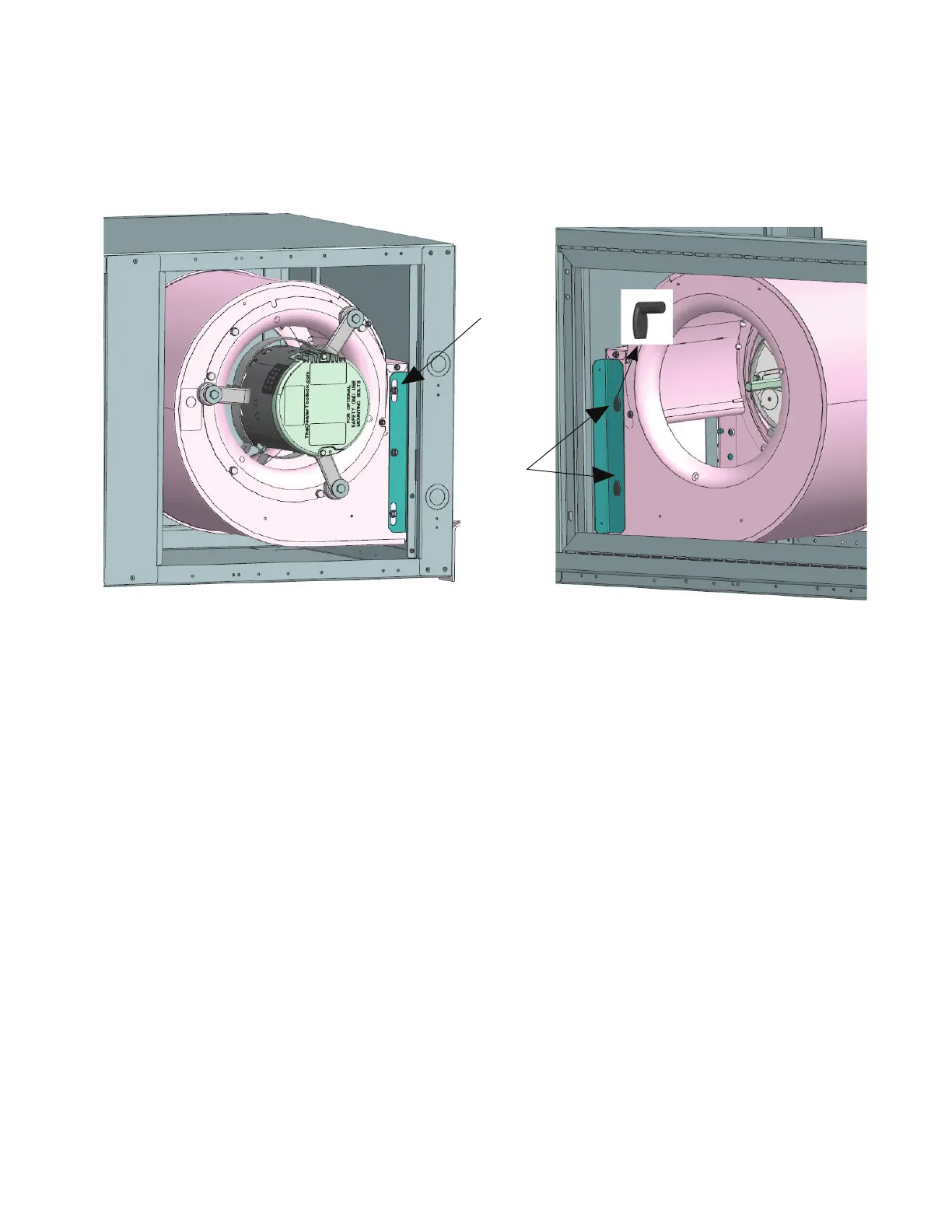

Fig. 52 — Horizontal Units Blower Assembly
.
Screws are
Located on
the Motor Side
Weld Pins
are Located
on Side
Opposite to
Motor
