Je bekijkt pagina 62 van 84
62
Sequence of Operation for Units with TruVu
DDC Controller
Units with TruVu™ DDC controller still feature a UPM board
for unit operation, so the operation will be similar to the se-
quence for units without DDC controller. TruVu™ does feature
advanced functionality, such as automatic fan speed control
and intelligent alarming, which will differ from the units with
UPM board only. Below is an overview of the different fea-
tures for the TruVu™ controls. See Fig. 47 for TruVu™ Con-
trol Board overview.

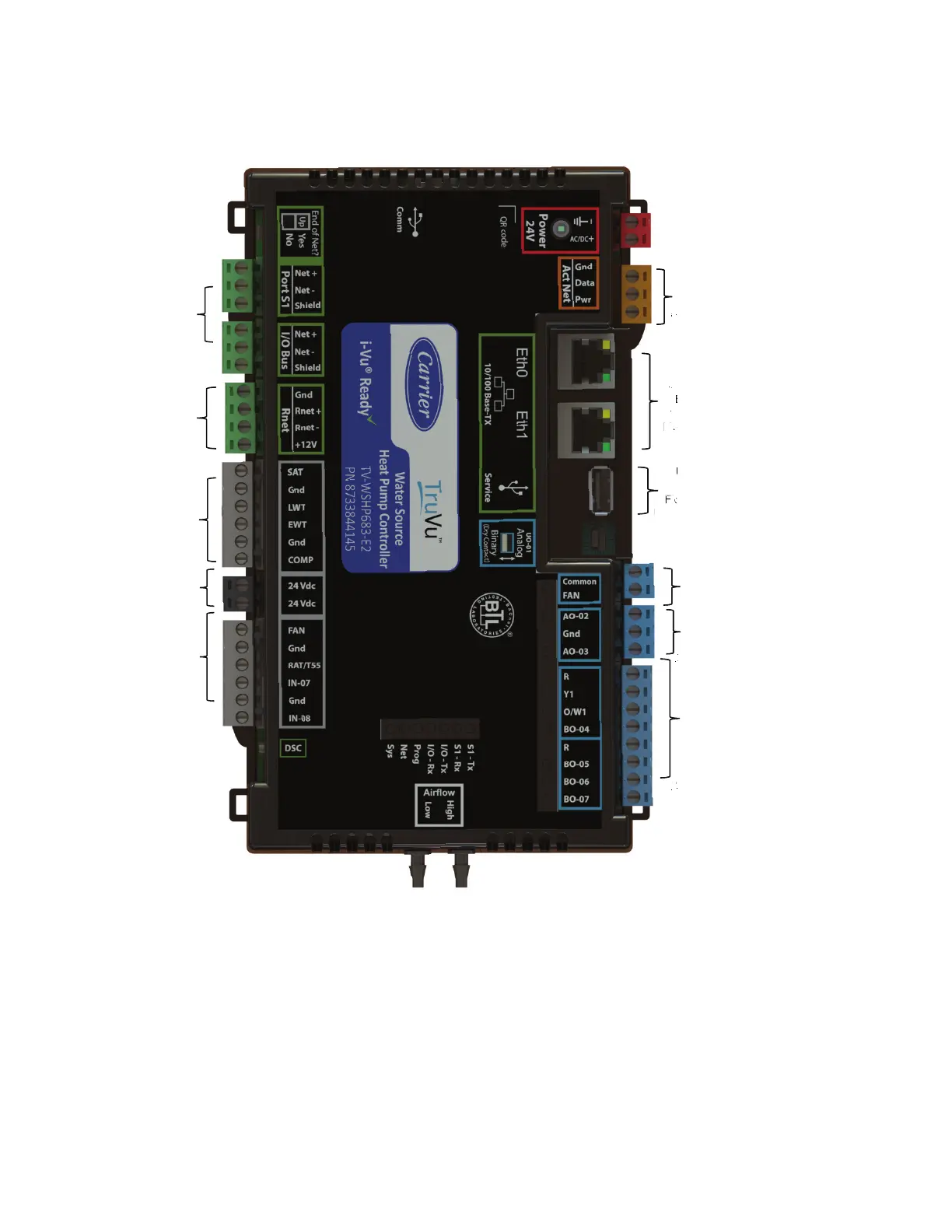

Fig. 47 — TruVu Control Board
ActNet Devices
Source Water i-Vu Smart
Valves, OA Damper Actuator
Network
Communication
BACnet/IP,
BACnet/Ethernet,
Modbus TCP/IP
USB Service Port
TruVu ET Display,
Field Assistant (laptop)
USB Wi-Fi Service Adapter
(USB-W)
Universal Output
Factory -Installed: Fan On G1 /
PWM ECM Fan Modulation /
0-10 VDC VFD Modulation
Analog Outputs
Optional Factory-Installed
Dehumidification (MHGRH).
Optional Field-Installed: Auxillary Heat,
Waterside Economizer, Outdoor Air
Damper, Dehumidification, Source
Water Valve
Binary Outputs
Factory-Installed: Compressor,
Reversing Valve, Auxiliary Heat,
Waterside Economizer, FanOn
(G2/G3), Dehumidification (on/off
HGRH), Cycle with Fan/Compressor
UPM Communication
Factory-Installed
Modbus Card
Accesses
RNET (ZS sensors,
TruVu ET display)
Universal Inputs
Factory-Installed: SAT,
LWT, EWT, Compressor
Status, Fan Status
Universal Inputs
Optional Field-Installed:
RAT, SPT, Emergency
Shutdown, Remote
Occupancy, secondary
Condensate
Overflow Flow Switch
24 vdc Terminal
Optional Factory-Installed:
Differential Pressure
Flow Switch
Va
Va
Com
Co
B
BAC
BA
Mo
Mo
U
U
T
T
FieFie
USBUSB
OO
H
H
