29

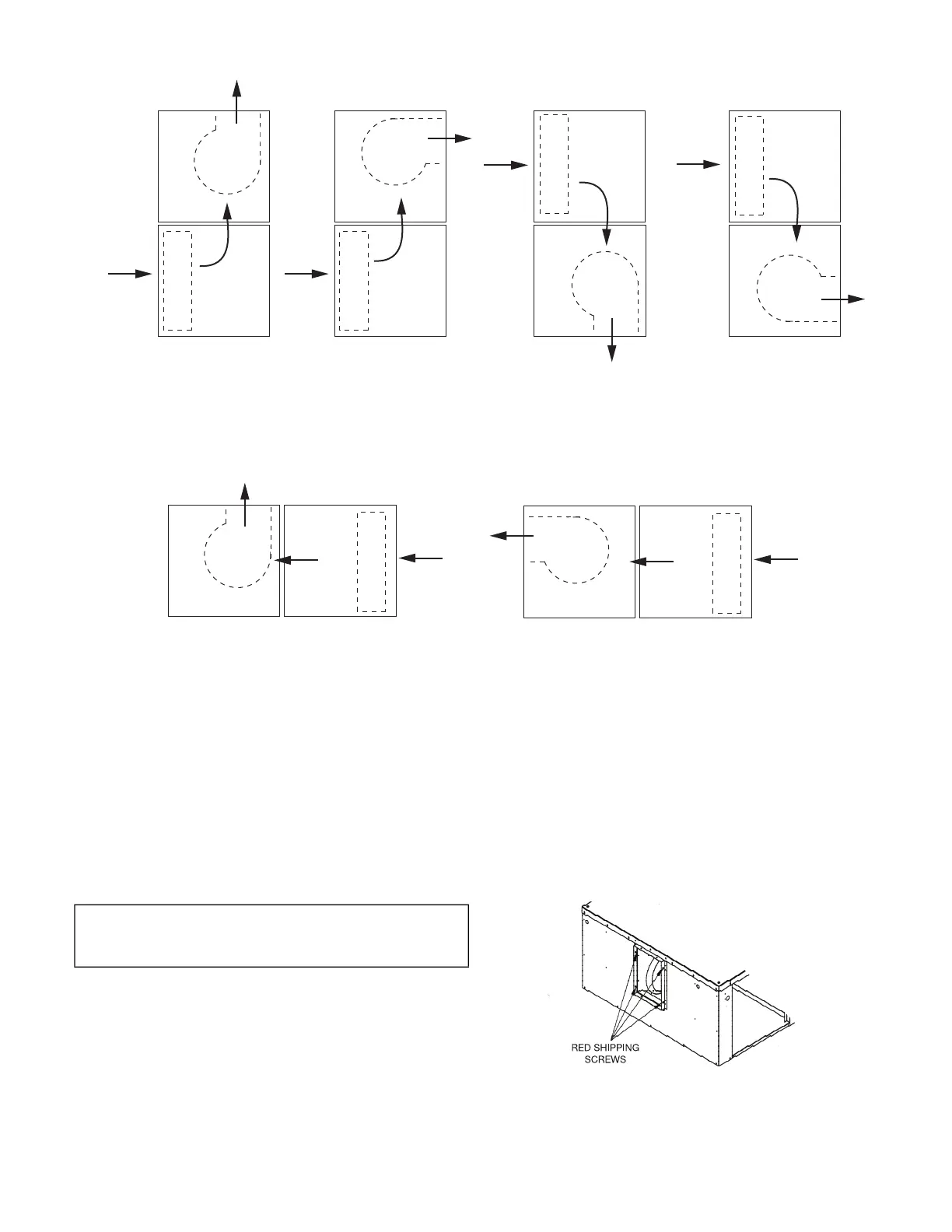

Fig. 24 — 39SM Modular Configurations
JOINING MODULAR SECTIONS
NOTE: 39SM unit sizes 04 and 05 are single-section units and re-
quire no joining.
39SM Unit Sizes 07-17 (Vertical Configurations)
1. Remove red shipping screws from duct flange/blower outlet
before assembly. (See Fig. 25.)
2. Use factory-provided foam gasket tape to seal the joint
between the sections.
NOTE: Gasket material is factory-provided unless the orientation
of the unit is being changed from that ordered. In that case, use
field-provided gasket or factory-provided gasket kit.
3. Stack sections in vertical orientation. See Fig. 24. Sections
must be installed in one of the vertical configurations shown
in Fig. 24. Be sure to orient the blower section to match the
selected configuration as shown in Fig. 24.
4. Remove access panel. See Fig. 26.
5. Install 4 (2 on each side) self-drilling sheet metal screws no.
10 x 3/4 in. long through the end panel flange into the coil
section flange (Fig. 27).
6. Re-install access panel.
7. When coil section is on top of fan section, drive screws from
coil section into fan section.
Fig. 25 — Remove Red Shipping Screws
Blower: Vertical
Coil: Upflow
Blower: Horizontal
Coil: Upflow
Blower: Vertical
Coil: Downflow
Blower: Horizontal
Coil: Downflow
Blower: Vertical
Coil: Horizontal
Blower: Horizontal
Coil: Horizontal
A39-4492
Vertical Configurations
Horizontal Configurations
NOTES:
1. Arrows indicate airflow direction.
2. Diagrams indicate general arrangement of coil and blower sections.
Refer to dimensional drawings for details and connections.
IMPORTANT: Failure to remove red shipping screws can result
in unsatisfactory vibration or blower noise, or excessive air re-
circulation.
NOTE: There may by one or 2 blower discharges.
Single discharge shown.
