NOTE: Two-pole motors operate at a nominal 3600 rpm for 60 Hz and 3000 rpm
for 50 Hz; 4-pole motors operate at a nominal 1800 rpm for 60 Hz and 1500 rpm
for 50 Hz.
ACH580 VFD OPERATION
The VFD keypad is shown in Fig 24 and Fig. 25. The functions of
SOFT KEYS ( and ), change depending on what is
displayed on the screen. The function of SOFT KEY 1 matches
the word in the lower left-hand box on the display screen. The
function of SOFT KEY 2 matches the word in the lower right-
hand box on the display screen. If the box is empty, then the SOFT
KEY does not have a function on that specific screen. Arrow Keys
are used to navigate through the menus. The OFF key is used to
turn off the VFD. The AUTO key is used to change control of the
drive to automatic control. The HAND key is used to change con
-
trol of the drive to local (hand held) control. The HELP button is
used to access the help screens.
For the VFD to operate on the units covered by this document, the
drive must be set in AUTO mode. The word AUTO will appear in
the upper left-hand corner of the VFD display. Press the AUTO
button to set the drive in AUTO mode.

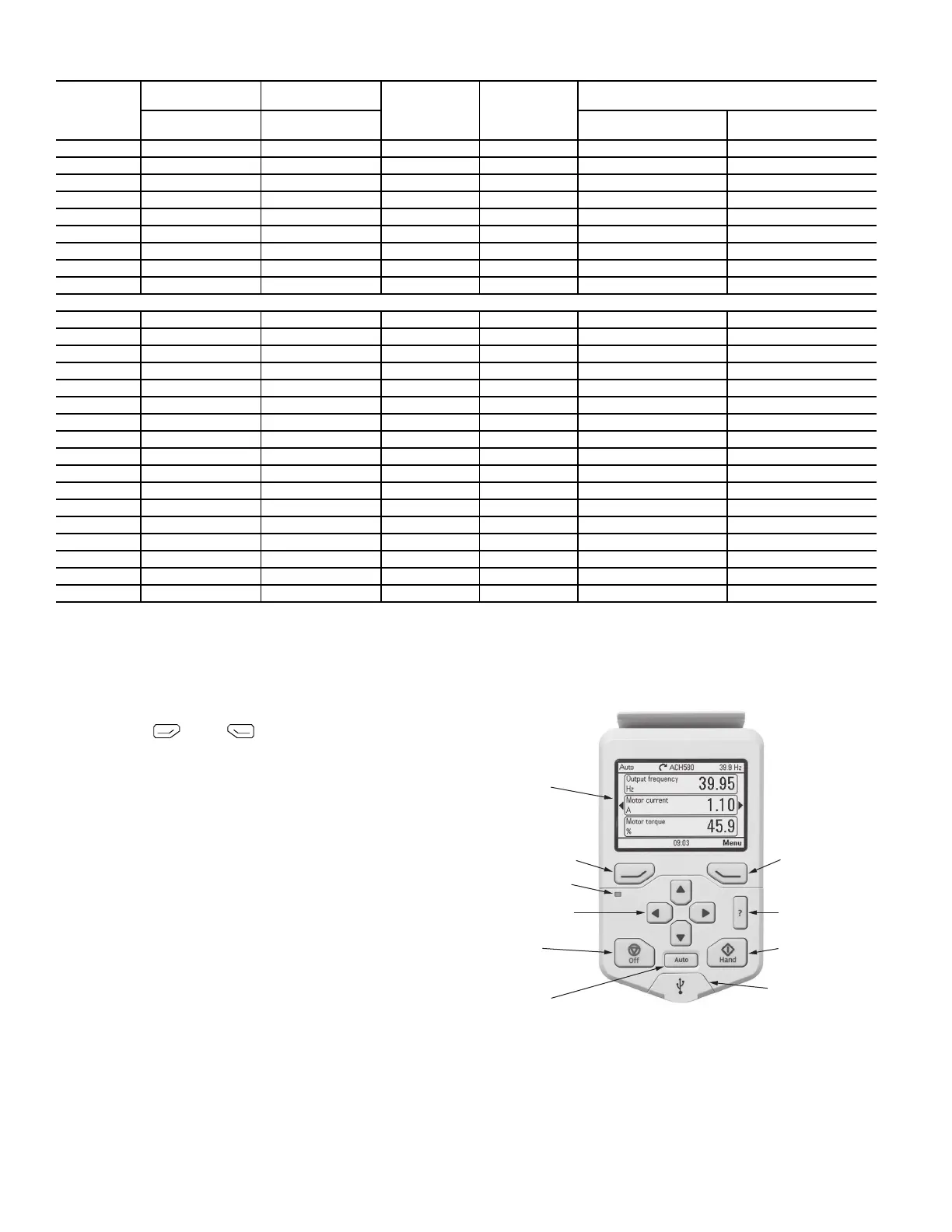

Fig. 24 — ACH580 VFD Keypad (Front)
10 031A-2 30.8 40 40 27.2/ 27.4 30.8/ 30.8
15 046A-2 46.2 60 60 41.4/ 40.5 46.2/ 46.2
20 059A-2 59.4 80 80 53.4/ 49.0 59.4/ 56.0
25 075A-2 74.8 100 100 65.4/ 66.0 74.0/ 74.8
30 088A-2 88 110 110 78.0/ 78.0 86.0/ 86.0
40 114A-2 114 150 150 107.0/107.0 114.0/114.0
50 143A-2 143 200 200 135.0/135.0 135.0/135.0
60 169A-2 169 250 250 169.0/169.0 169.0/169.0
75 211A-2 211 300 300 210.0/210.0 210.0/210.0
(380 VOLTS / 3 PHASE / 50 HZ (PROGRAMMED TO OPERATE AT 400 VOLTS)
1 02A1-4 2.1 10 15 1.7/ 1.7 2.3/ 2.3
1-1/2 03A0-4 3 10 15 2.5/ 2.5 3.3/ 3.3
2 03A5-4 3.5 10 15 3.2/ 3.2 3.8/ 3.6
3 04A8-4 4.8 10 15 4.5/ 4.5 5.4/ 5.3
5 07A6-4 7.6 15 15 7.0/ 7.0 8.5/ 8.0
7-1/2 012A-4 11.9 15 15 10.6/ 8.9 11.9/ 11.0
10 014A-4 14 20 20 13.6/ 11.6 15.4/ 14.6
15 023A-4 23 30 30 20.7/ 17.0 22.6/ 21.0
20 027A-4 27 40 40 26.7/ 24.5 29.3/ 29.0
25 034A-4 34 50 50 32.7/ 29.5 37.0/ 36.0
30 044A-4 44 60 60 39.0/ 39.0 44.0/ 44.0
40 052A-4 52 80 80 53.5/ 45.5 57.0/ 55.0
50 077A-4 77 100 100 67.5/ 67.5 70.0/ 70.0
60 096A-4 96 125 125 84.5/ 84.5 88.0/ 88.0
75 124A-4 124 175 175 105.0/105.0 105.0/105.0
100 156A-4 156 200 200 134.0/134.0 134.0/134.0
125 156A-4 156 200 250 134.0/134.0 134.0/134.0
Table 7 — ACH580 - VFD Data (cont)
39L MOTOR
HP
ABB PART
MAX.
CONTINUOUS
FUSE AMPS
MCCB RATED
AMPS
PROGRAMMED SETTINGS
NO. ACH580-1 OUTPUT AMPS
OVERLOAD TRIP AMPS
4 POLE / 2 POLE
MAX. OUTPUT AMPS
4 POLE / 2 POLE
LEGEND
MCCB — Molded-Case Circuit Breaker
Display
Left Softkey Right Softkey
Status LED
Arrow Keys
Off
Help
Hand
Auto
USB Connector
