8 1765272 10/2011

Hardware setup

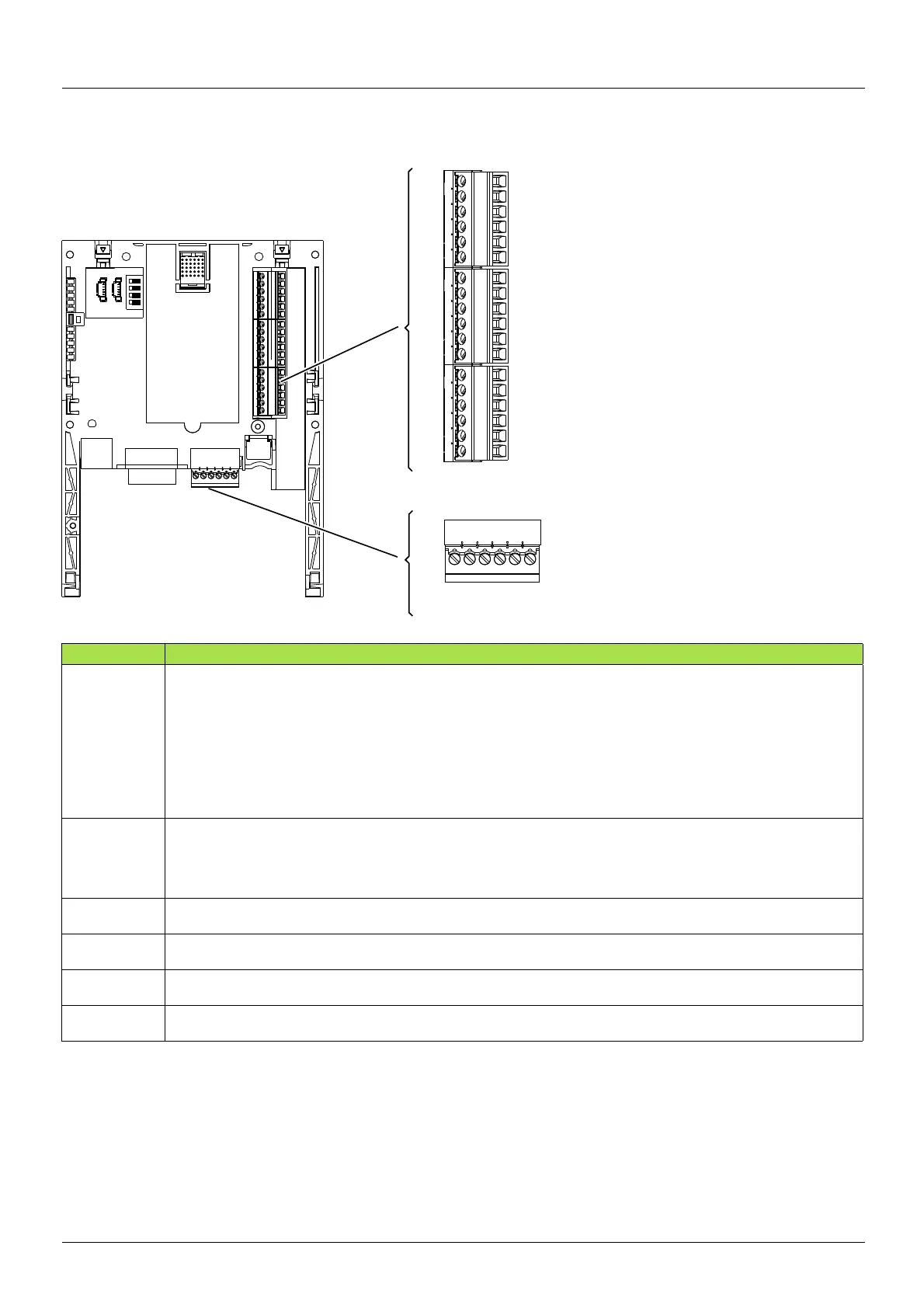

Description of the terminals

Terminals Function

24V Power supply for the pump switching card, logic outputs and analog outputs.

If allowed by the power consumption table (for example if outputs are not being used), the pump switching card can be

c power supply in the drive.

If you are using an external power supply:

• The pump switching card must be turned on before the drive is turned on, or at the same time as the drive is

turned on.

If this order is not followed, the drive will lock in a card fault (ILF). This fault cannot be reset, and the only way to

acknowledge it is to turn off the drive.

• Catalog number for a Schneider-Electric power supply (24 V

c, 2A): ABL7 RE 24 02.

COM

(3 terminals)

Common ground and electrical 0V of the pump switching card power supply, logic inputs, (LI

pp), outputs (LOpp), analog

inputs (AI

pp) and analog outputs (AOpp).

This ground and electrical 0V are common with the drive ground and electrical 0V. There is therefore no point in

connecting this terminal to the 0V terminal on the drive control terminals.

LI51 to LI60 24 V

c logic inputs

LI56 to LI60 = Not used

LO51 to LO56 24 V

c logic outputs

LO56 = Not used

AI51 and AI52 0 ... 20mA analog inputs

Not used

AO51 and AO52 0 ... 20mA analog outputs

Not used

LI54

LI55

24V

COM

LI51

LI52

LI53

LI60

LI59

LI58

LI57

LI56

LO51

LO56

LO55

LO54

LO53

LO52

AI51

AO52

COM

AO51

AI52

COM
