22 1765274 08/2012

9. Configuration

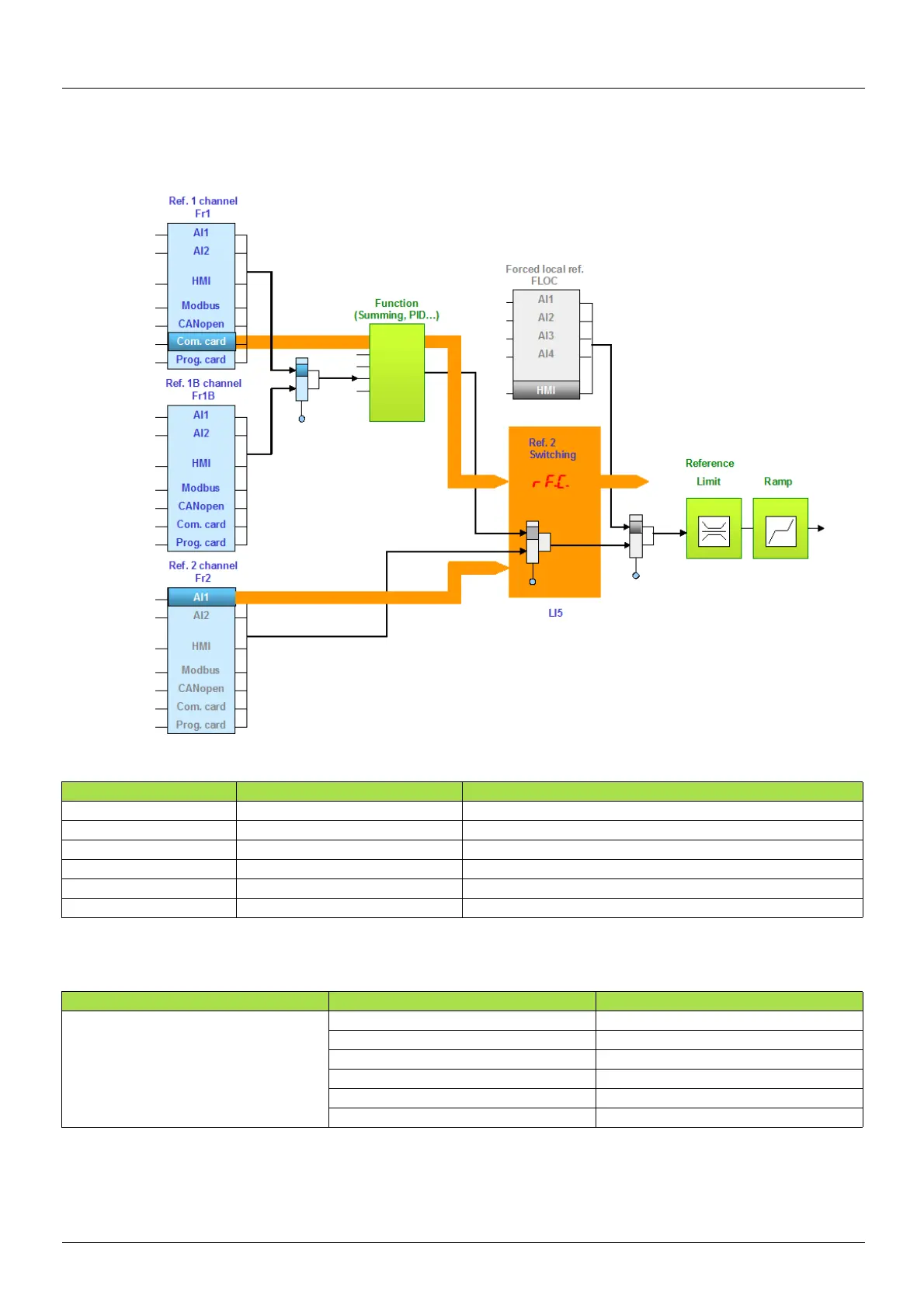

Control via BACnet and switching of the setpoint at the terminals with application function

The command comes from BACnet. Input LI5 is used to switch the setpoint between BACnet and the terminals. When switched to the

terminals, the application functions (summing…) are not active.

Configure the following parameters:

Setpoint 1B is connected to the functions (Summing, etc) that remain active even after switching.

Configuration via the graphic display terminal or the integrated display terminal:

Parameter Value Comment

Profile Separate profile The command and the setpoint can come from different channels.

Setpoint 1 configuration Network card Setpoint 1 comes from BACnet.

Setpoint 2 configuration Analog input 1 on the terminals Setpoint 2 comes from input AI1 on the terminals.

Setpoint switching Input LI5 Input LI5 switches the setpoint (1

↔ 2).

Command 1 configuration Network card Command 1 comes from BACnet.

Command switching Channel 1 Channel 1 is the command channel.

Menu Parameter Value

[1.6 – COMMAND] (Ct L-) [Profile] (CHCF) [Separate] (SEP)

[Ref.1 chan] (Fr1) [Com. card] (nEt )

[Ref.2 chan] (Fr2) [AI1 ref.] (AI1)

[Ref 2 switching] (rFc) [LI5] (LI5)

[Cmd channel 1] (Cd1) [Com. card] (nEt)

[Cmd switching] (CCS) [ch1 active] (Cd1)

BACnet
