1765274 08/2012 21

9. Configuration

Control via BACnet and switching of the setpoint at the terminals with application function

The command comes from BACnet. Input LI5 is used to switch the setpoint between BACnet and the terminals. When switched to the

terminals, the application functions (summing…) remain active.

Configure the following parameters:

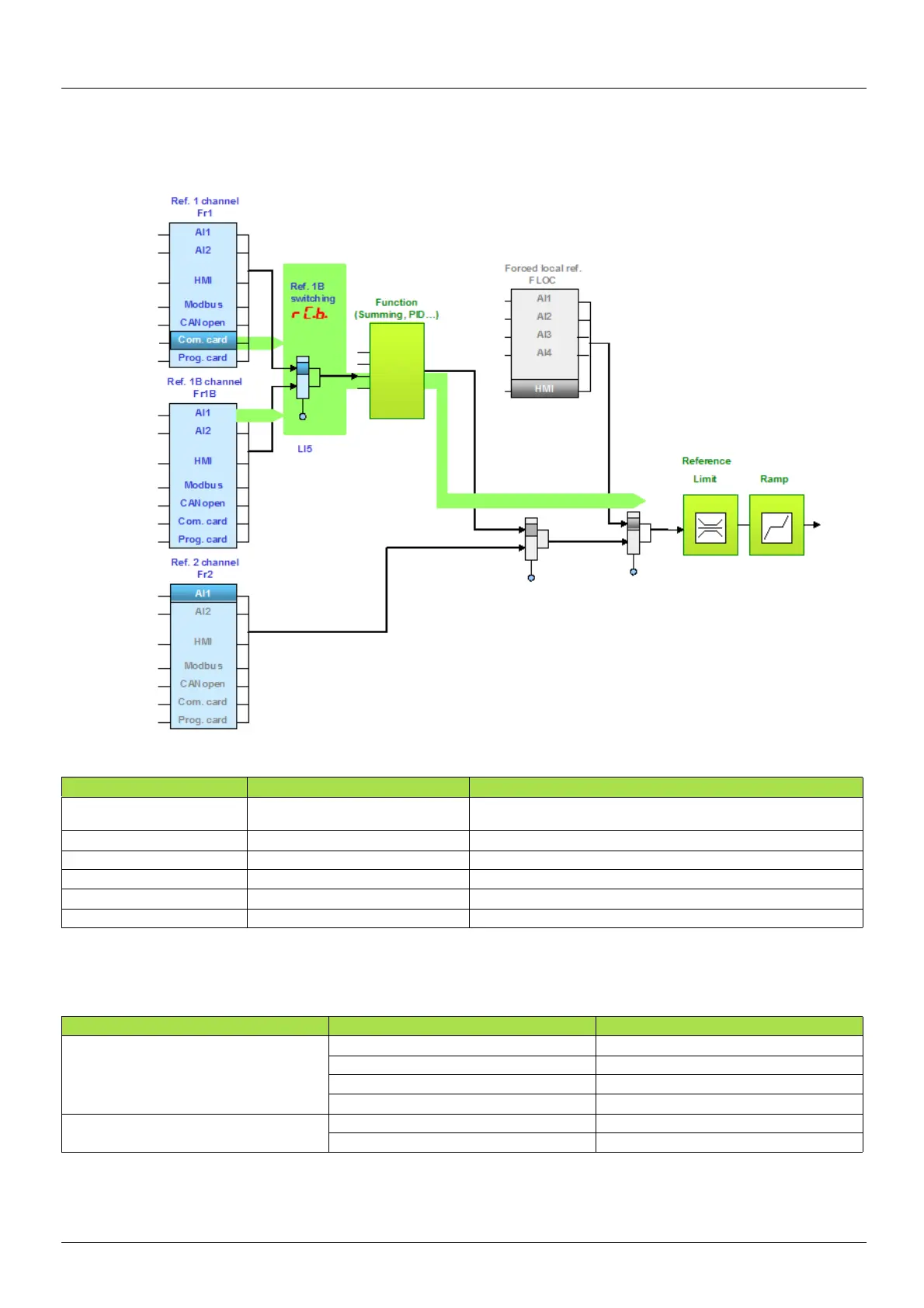

Reference 1B is directly connected to the functions of the drive. If switching to the terminals is performed, the functions that affect the

reference (summing, PID, etc) are active.

Configuration via the graphic display terminal or the integrated display terminal:

Parameter Value Comment

Profile Separate profile The command

and the setpoint can come from different channels.

Setpoint 1 configuration Network card Setpoint 1 comes from BACnet.

Setpoint 1B configuration Analog input 1 on the terminals Setpoint 1B comes from input AI1 on the terminals.

Setpoint switching Input LI5 Input LI5 switches the reference (1

↔ 1B).

Command 1 configuration Network card Command 1 comes from BACnet.

Command switching Channel 1 Channel 1 is the command channel.

Menu Parameter Value

[1.6 - COMMAND] (CtL-) [Profile] (CHCF) [Separate] (SEP)

[Ref.1 channel] (Fr1) [Com. card] (nEt)

[Cmd channel 1] (cd1) [Com. card] (nEt)

[Cmd switching] (CCS) [ch1 active] (Cd1)

[1.7 - APPLICATION FUNCT.] (FUn-)

[REFERENCE SWITCH]

[Ref.1B channel] (Fr1b) [Ref. AI1] (AI1)

[Ref.1B switching] (rCb) [LI5] (LI5)

BACnet
