9. Configuration

Switching of control and setpoint from BACnet to the terminals with application function

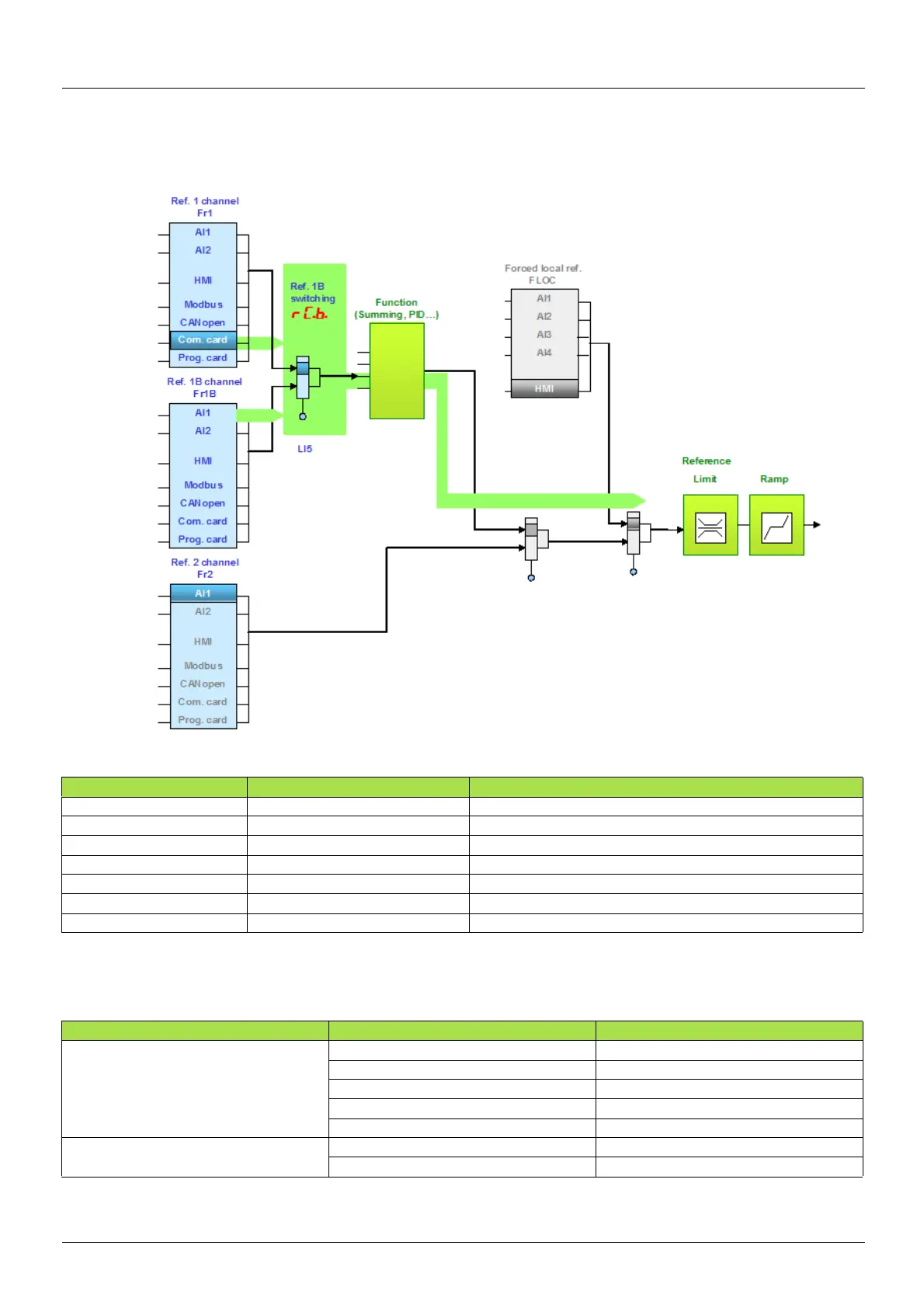

Input LI5 is used to switch the control and the setpoint between BACnet and the terminals. When switched to the terminals, the application

functions (summing…) remain active.

Configure the following parameters:

Setpoint 1B is directly connected to the functions of the drive. If switching to the terminals is performed, the functions that affect the

reference (summing, PID, etc) are active.

Configuration via the graphic display terminal or the integrated display terminal:

Parameter Value Comment

Profile Separate profile The command and the setpoint can come from different channels.

Setpoint 1 configuration Network card Setpoint 1 comes from BACnet.

Setpoint 1B configuration Analog input 1 on the terminals Setpoint 1B comes from input AI1 on the terminals.

Setpoint switching Input LI5 Input LI5 switches the setpoint (1

↔ 1B).

Command 1 configuration Network card Command 1 comes from BACnet.

Command 2 configuration Terminals Command 2 comes from the terminals.

Command switching Input LI5 Input LI5 switches the command

Menu Parameter Value

[1.6 - COMMAND] (CtL-) [Profile] (CHCF) [Separate] (SEP)

[Ref.1 channel] (Fr1) [Com. card] (nEt)

[Cmd channel 1] (cd1) [Com. card] (nEt)

[Cmd channel 2] (cd2) [Terminals] (tEr)

[Cmd switching] (CCS) [LI5] (LI5)

[1.7 - APPLICATION FUNCT.] (FUn-)

[REFERENCE SWITCH]

[Ref.1B channel] (Fr1b) [Ref. AI1] (AI1)

[Ref.1B switching] (rCb) [LI5] (LI5)
