KP Series Installation 35
Speaker 2-Position Terminal Block Connector
The Speaker 2-Position Terminal Block Connector is used to connect an external speaker.
Wire Specifications
Solid Wire: 26-16 AWG/0.13–1.5 mm
2
Stranded Wire: 26-16 AWG/0.13–1.5 mm
2
Torque: 3.0 lb-IN/0.34 Nm
WARNING: The positive (+) and negative (-) terminals of the connector should be connected to the positive (+) and
negative (-) terminals of the external speaker. These terminals should never be connected to GND or
permanent damage can occur.
To connect the 2-position terminal block to the keypanel, do the following:
1. Align the 2-position terminal block connector with the 2-position connector on the rear side of the keypanel.
2. Gently push the connector into place.

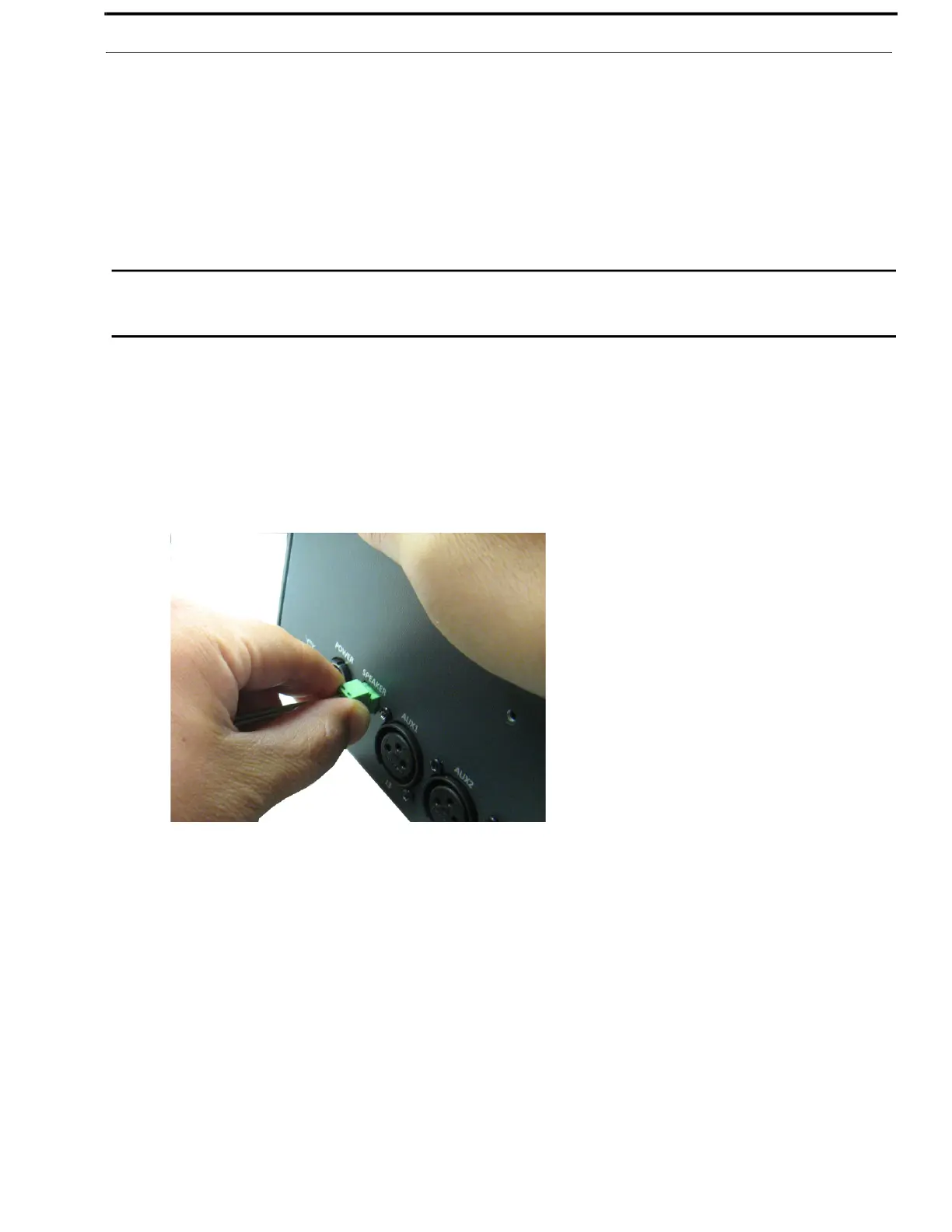

To detach the 2-position terminal block connector from the keypanel, do the following:
> Using the thumb and fore-finger, carefully wiggle the 2-position terminal block until is comes free from the
connector.
