34 Installation KP Series
GPIO 12-Position Terminal Block Connector
The GPIO 12-Position Terminal Block Connector is used to provide connections to relays (outputs) and opto-isolators
(inputs). Using the table, “GPIO Connector: J10” on page 20, connect the correct wires to the 12-position connector.
Wire Specifications
Solid Wire: 26-16 AWG/0.13–1.5 mm
2
Stranded Wire:26-16 AWG/0.13–1.5 mm
2

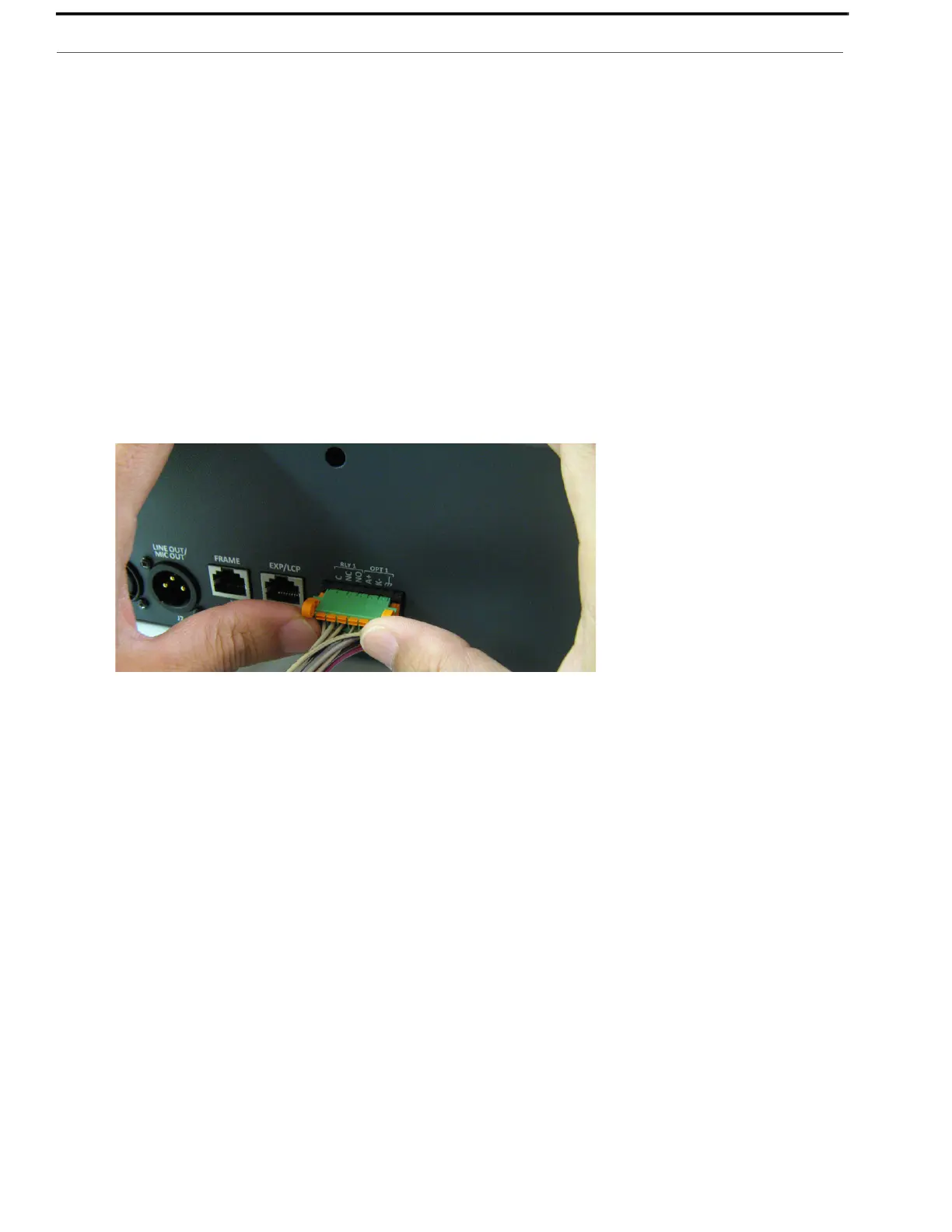

To connect the 12-position terminal block to the keypanel, do the following:
1. Align the terminal block connector with the 12-position connector on the rear side of the keypanel.
2. Gently push the connector into place.
The locking levers click into place.
To detach the 12-position terminal block connector from the keypanel, do the following:
> Using both thumbs, gently press up on the locking levers.
The connector is released from the keypanel.
