Quick Start Guide
KP-5032 Push Button
Keypanel
Included:
• ASSY KP-5032PB KEYPANEL
• POWER SUPPLY 60W 24V @0~2.5A
• KP-OEI2 POWER SUPPLY MOUNTING BRACKET
• Safety Instructions
• LIT Quick Start Guide F / RP5032
• RTS ADDITIONAL WEBSITE INFORMATION
• 2–POSITION, 2–CONTACT TERMINAL PLUG
• 6–POSITION, 12–CONTACT TERMINAL PLUG
Requirements:
• AZedit V 5.0.0 or later
• IPedit V 3.2.0 or later
• MCII-e V 3.2.0 or later
• AIO-16 V 1.6.0 or later
• FWUT V 3.0.3 or later
• DNS-SD V 3.0.3 or later
• OMI V 5.1.5 or later
Installation
IMPORTANT: If you plan to use the Power Supply Mounting Bracket, we recommend you install the mounting bracket before
cabling the keypanel. For detailed information, refer to the KP-Series Technical Manual.

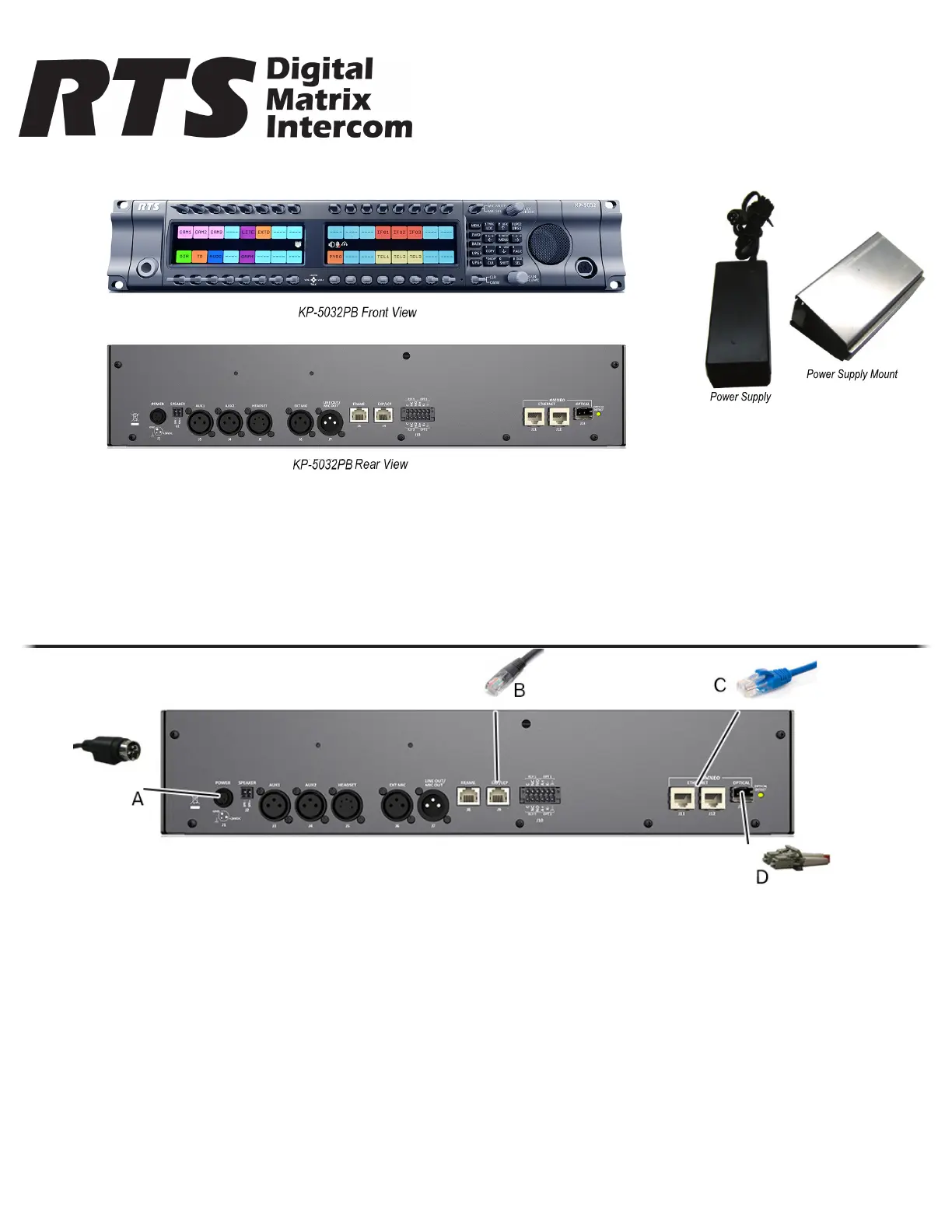

To install the KP-5032PB, do the following:
1. On the rear panel of the KP-5032PB, plug the 24 Vdc power connector (A) of the power supply into the power connector on the
back panel of the unit.
2. Connect an RJ-12 or RJ-45 (568B or USOC) cable (B) with RTS cabling to the J8 FRAME connector on the rear panel. (analog)
OR
Connect an CAT-5e cable (C) to either J11 or J12 ETHERNET connector on the rear panel. (OMNEO CAT-5e)
IMPORTANT: IfyouhavetheoptionalJ13berconnectorinstalled,connectaberconnector(D)totheOPTICALber
connector on the rear panel. (OMNEO Fiber)
3. Once the unit is cabled, plug the other end of AC power supply cord into the wall outlet or power strip.
