36 Installation KP Series
Footswitch Cabling
A Footswitch is a foot activated device used to turn a talk key on or off. There are two steps to cable and configure a
footswitch:
Step 1 Cable the device to the keypanel.
Step 2 Configure the GPIO as a talk key on the keypanel. See “Service Menu, Local GPIO” on page 246.
OR
Enable the Footswitch in the keypanel menu. See “Service Menu, Footswitch” on page 240.
To attach a footswitch to the KP-Series panels, do the following:
1. On the back panel, locate J10, the 12-position terminal block.
2. Using Figure 8, cable the footswitch to OPT 1 at the K- and Chassis ground positions.

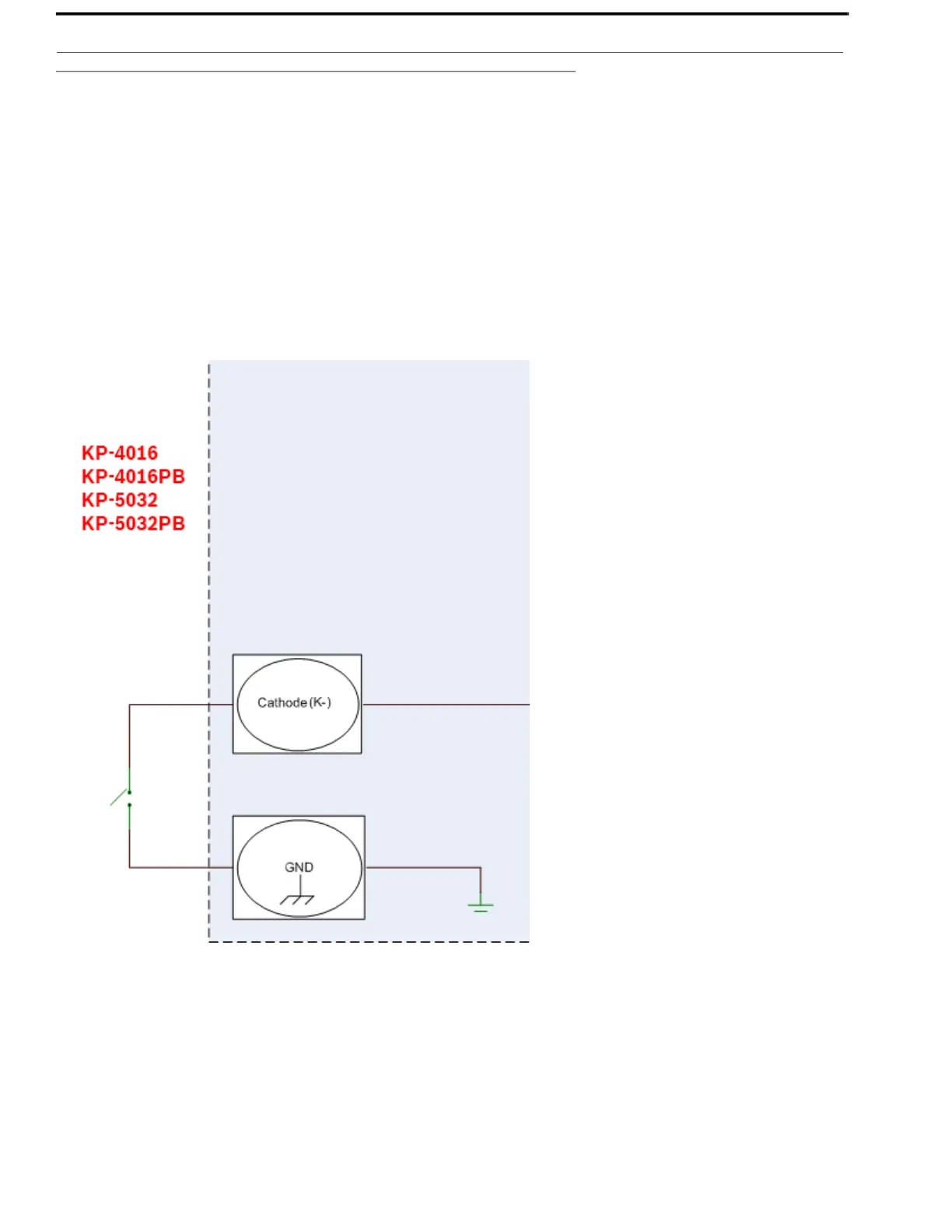

FIGURE 8. Footswitch Cable Drawing
