Multi-Screen Modes
Using [Bus Structure] to select [Span] switches the unit to the span mode. This mode extracts just the horizontal center portions
of the video, then splits it in half outputting each half to each output. Source video at 16:9 is output as video at a wide 32:9 in the
span mode. In addition, you can adjust how the edges are blended using the menu setting.
PinP, KEY and DSK cannot be used in the Span mode.

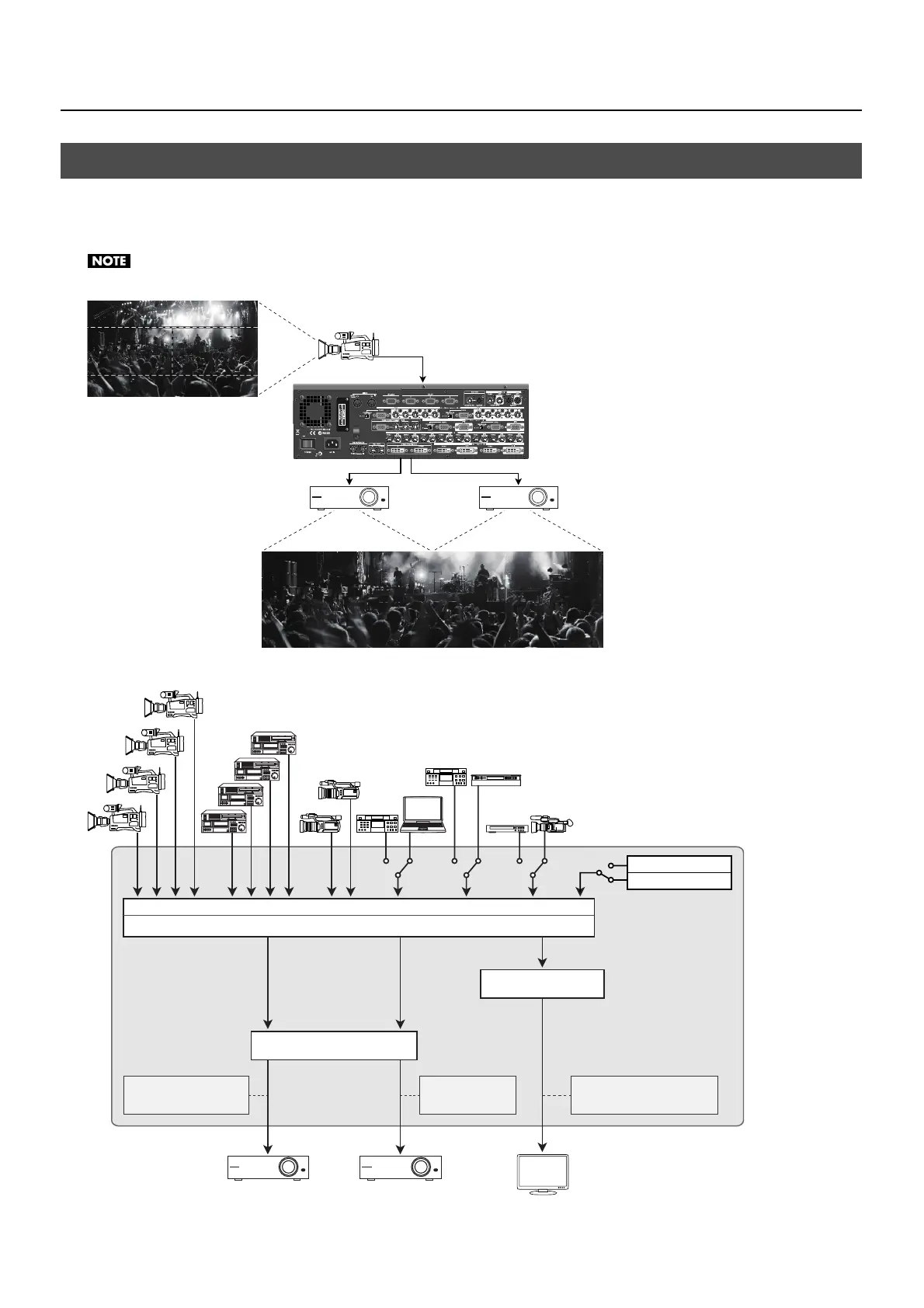

fig.span-mode-image.eps
In the span mode, the internal signal flow is as shown below.
fig.span-mode-flow.eps
Span Mode
1:PGM 2
Still Image
Background Color
1234 5678 910 11 12 13 14
1:PGM PVW
Input Select
Output Fade
Scaler
Left Right
HD-SDI/SD-SDI (1:PGM)
DVI-D/HDMI (1:PGM)
RGB/COMPONENT
SD (COMPOSITE/S-VIDEO)
2
HD-SDI/SD-SDI (2)
DVI-D/HDMI (2)
