Multi-Screen Modes
Using [Bus Structure] to select [Split] switches the unit to the split mode. This extracts, composites, and outputs just the vertical
center portions of two video images. The video selected with PGM is output on the left side, and the video selected with PST/
EFFECT is output on the right side.
PinP, KEY and DSK cannot be used in the Split mode.

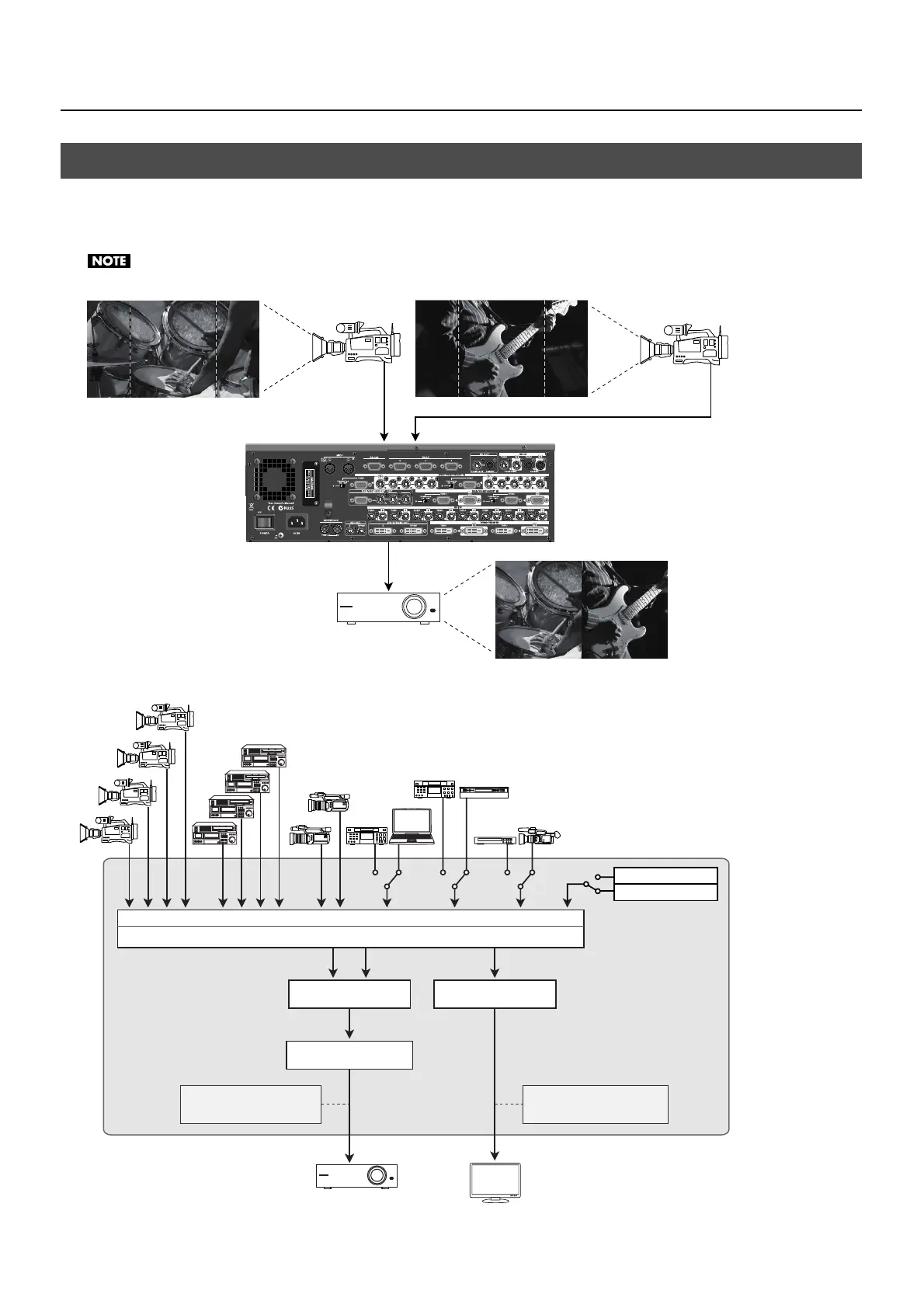

fig.split-mode-image.eps
In the split mode, the internal signal flow is as shown below.
fig.split-mode-flow.eps
Split Mode
1234 5678 910 11 12 13 14
PGM PVW
Input Select
Still Image
Background Color
Splitter
Output Fade
Scaler
Left Right
HD-SDI/SD-SDI (1:PGM/2)
DVI-D/HDMI (1:PGM/2)
RGB/COMPONENT
SD (COMPOSITE/S-VIDEO)
