Multi-Screen Modes
Using [Bus Structure] to select [AUX] switches the unit to the AUX mode. In this mode, the V-1600HD functions as an up or down
converter, enabling simultaneous output of video having two different resolutions.
* The operation methods when changing video in the AUX mode are the same as in the default mode.
DSK cannot be used in the AUX mode. PinP and KEY are still available.
fig.scale-mode-image.eps

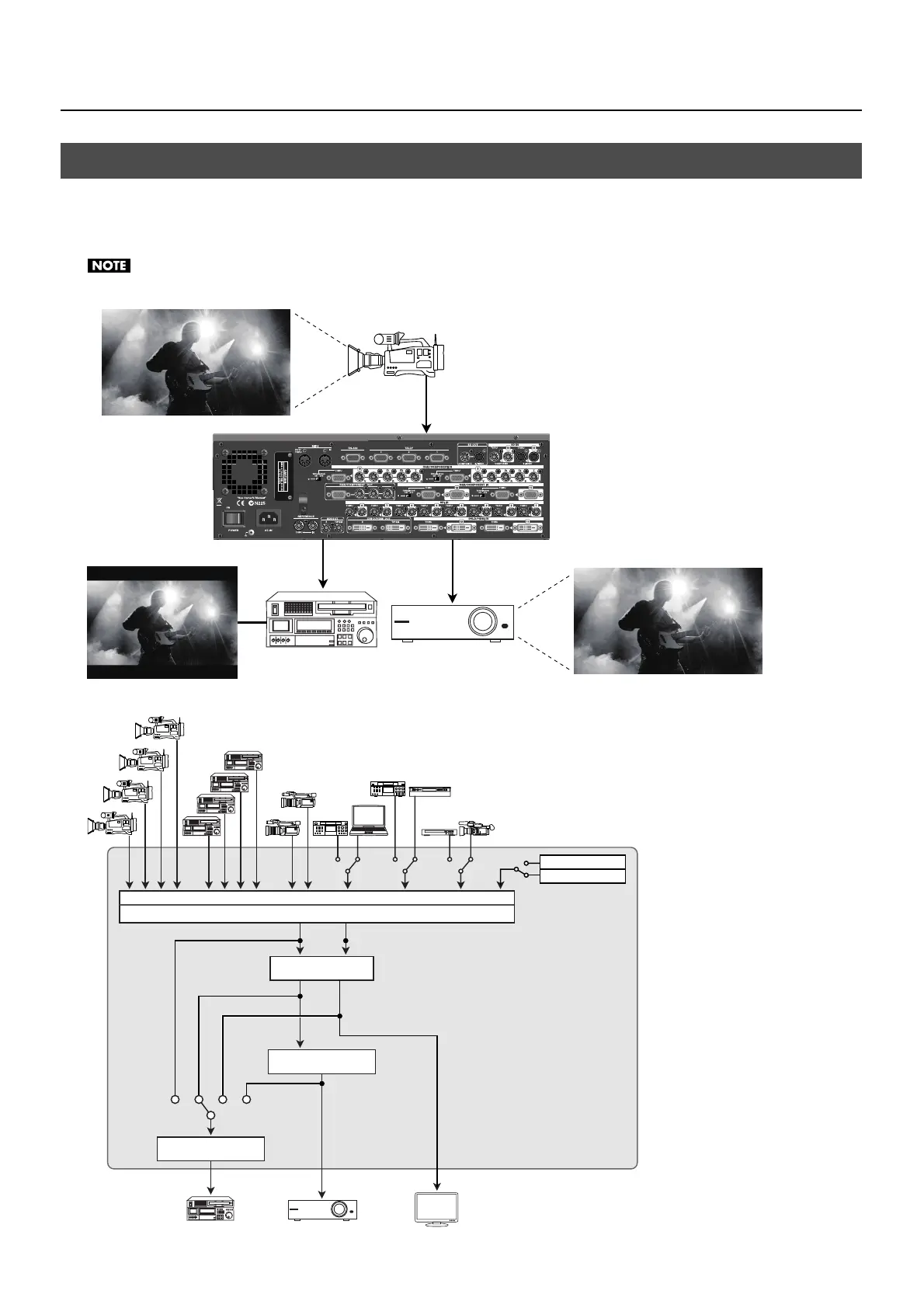

In the AUX mode, the internal signal flow is as shown below.
fig.aux-mode-flow.eps
AUX Mode
PGMAUX
HD (16:9)SD (4:3 with letterbox)
1234 5678 910 11 12 13 14
PST/EFFECTPGM
PGM PVW
Input Select
Still Image
Background Color
Video Mixer
Output Fade
AUX
Scaler
PGM PVW
1. Mixer Input
2. Mixer Output
3. PVW Output
4. PGM Output
