Connecting REAC Devices
Cables for REAC Connections
With RSS Digital Snake and V-Mixing Systems, digital transmission of audio signals is performed by means of REAC (Roland
Ethernet Audio Communication). Compared to analog transmission, this system is extremely resistant to external noise, but in
very rare instances, noise can occur. Selection of the wrong cable and incorrect cable handling can cause noise. Observe the
following points when using cables.
• Ensure that the cables used for connections conform to the Cat 5e (Enhanced Category 5) standard.
• No single cable should be longer than 100 meters.
• Do not use cables with cut or torn covering.
• Do not step on cables or subject them to undue stress.
• Do not wind cables too tightly or sharply bend them.
To maintain transmission quality, use of the following optional REAC cables is recommended.
• 100-meter cables: SC-W100S (cable only) or W100S-R (with reel)
• 20-meter cables: SC-W20F
REAC Connector Cover
When using an ordinary available Ethernet cable (as opposed to optional cables) to connect a REAC device, fit the included REAC
connector covers onto the REAC ports. Electromagnetic noise may be a problem if these are left unattached.

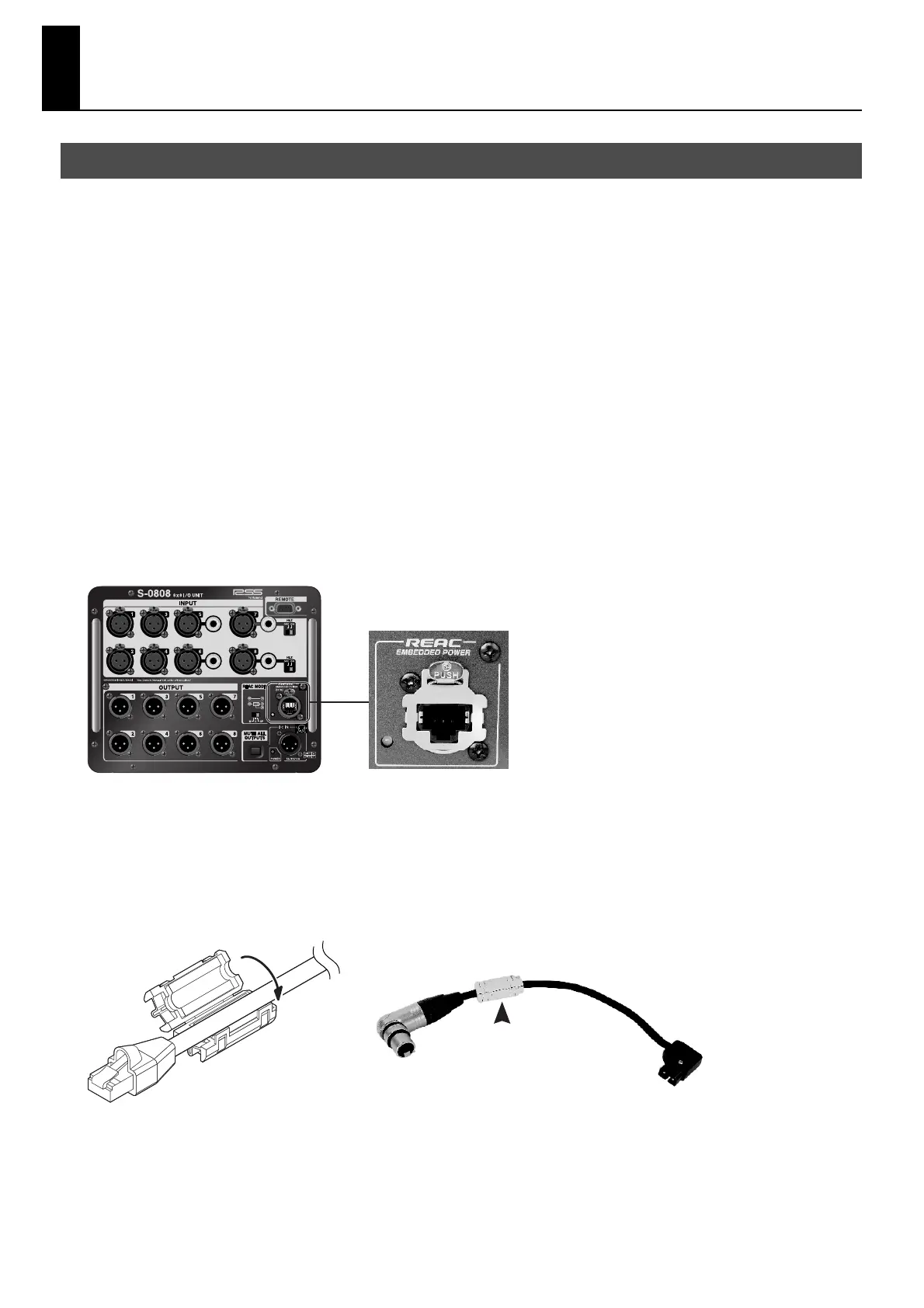

fig.fit-connector-cover.eps
* Attaching a REAC connector cover is not necessary when you’re using an optional REAC cable (described above). When using an ordinary
available Ethernet cable, be sure to use a cable that conforms to the Cat 5e (Enhanced Category 5) standard.
About Ferrite Cores
The S-0808 comes with two ferrite cores. Attach one ferrite core to the REAC cable connected to the S-0808. Clamp the ferrite core
onto the cable at a location near the plug at the end of the cable, pressing down on the ferrite core until it clicks closed.
Attach another ferrite core to the power cable from the external battery.
fig.fit-ferrite-core.eps
* When attaching a ferrite core, be careful to avoid pinching your fingers.
* When connecting a REAC device, use a cable that has a ferrite core attached to it.
