14

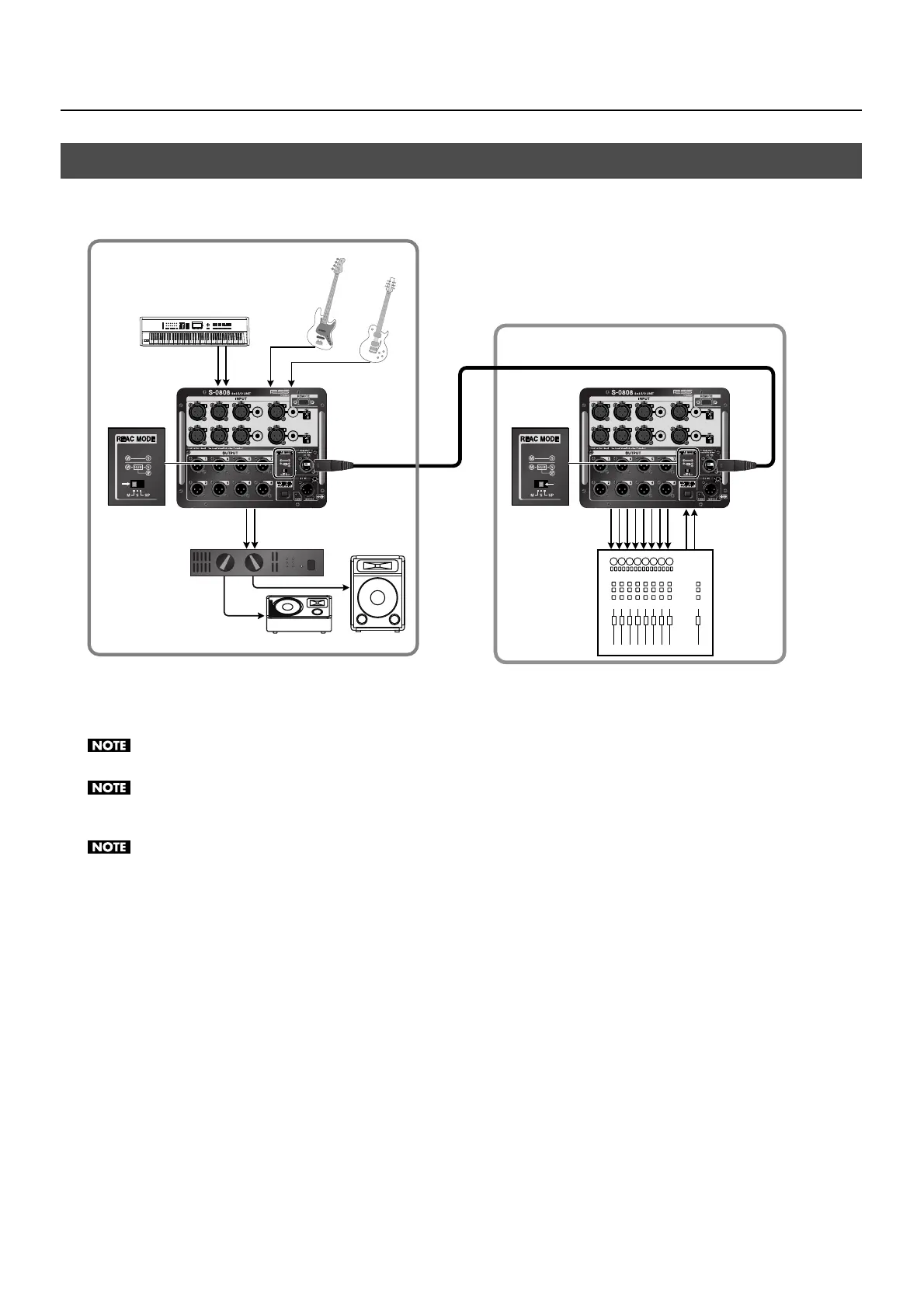

Connecting REAC Devices
You can configure a simple digital snake system having 8-channel inputs and 8-channel outputs by installing one S-0808 at the
stage and another one at the mixing desk (front of house [FOH]).
fig.0808-0808.eps
* Set the operation mode of the S-0808 at the stage to M (master) and the mode of the S-0808 at FOH to S (slave). The signals from INPUT 1
through 8 on the master unit are output to OUTPUT 1 through 8 on the slave unit, and the signals from INPUT 1 through 8 on the slave unit are
output to OUTPUT 1 through 8 on the master unit.
Make the settings for the REAC mode only when the S-0808 units are powered off.
When connecting two S-0808 units directly using a REAC cable, attach external batteries to both S-0808 units and power them via their DC IN
ports. For more information about external batteries, refer to “Using an External Battery” (p. 20).
The output level of OUTPUT 1 through 8 on the S-0808 is fixed at +4 dBu (nominal, maximum: +22 dBu). When connecting the unit to a mixer at
the FOH, make the connection to an input connector capable of a maximum +22 dBu signal.
Connecting S-0808 Units to One Another
STAGE
FOH
M (Master)
S (Slave)
