Page 16
Jandy
®
Pro Series Ozone Generator
Step 6. Perform the Ozone Flow Test
Ozone
Outlet Barb
Flow Meter Assembly
(Remove after testing)
Eclipse
System
Ozone Tube
Check Valve
Tube Adapter
Injector Assembly

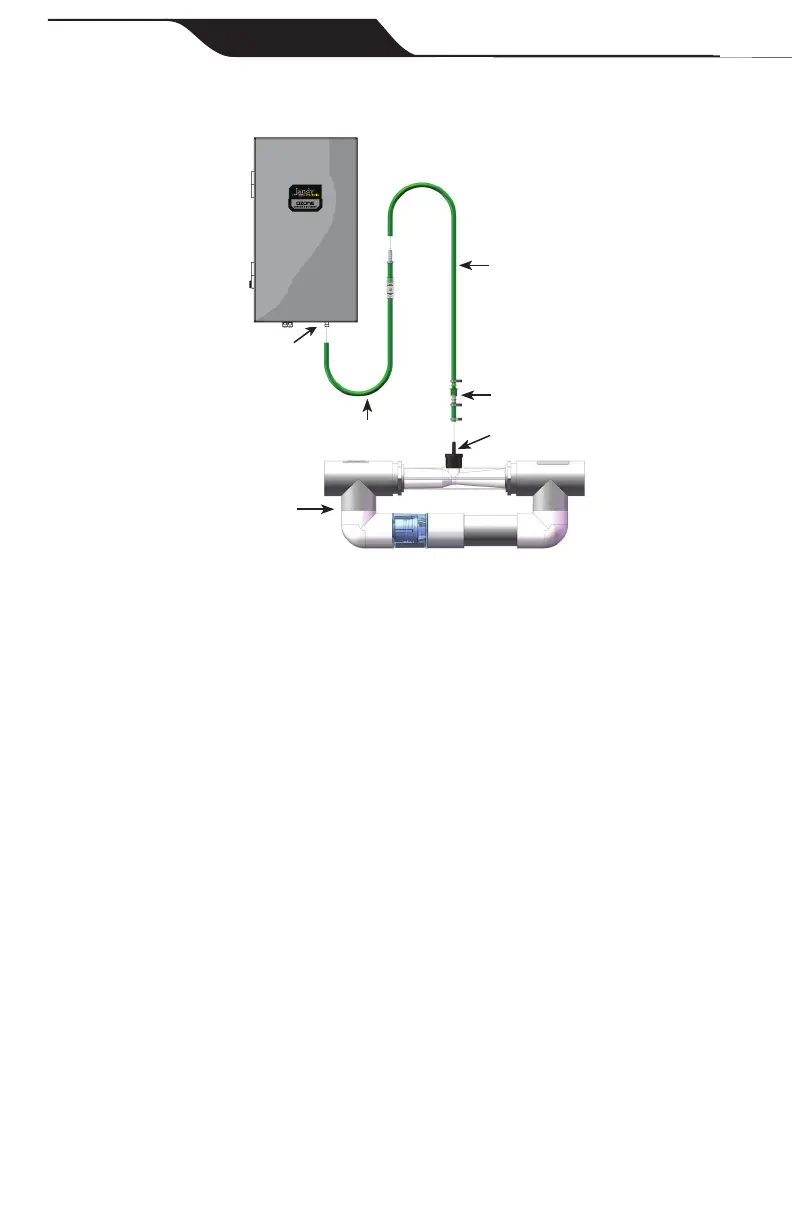

Figure 9. Ozone Flow Test Assembly
1. Install the tube adapter on the manifold injector. Do not use
Teon
®
thread tape to secure.
2. Connect the shorter piece of ozone tubing (with gas line check
valve) onto the tube adapter (Figure 9) and secure with the tube
clamp provided.
3. Connect the longer piece of the ow meter assembly to the
ozone outlet barb at the bottom of the ozone generator
(Figure 9).
4. Connect the remaining ends of the ozone tube and the ow
meter assembly (Figure 9).
5. Hold the ow meter assembly tubing so that the clear plastic
chamber is vertical with the longer tubing toward the bottom.
