GENERAL
These installation instructions cover the 48FE size 20-30 units
with gas heat and electric cooling. Units are pre-wired and pre-
charged with Puron Advance™ (R-454B) refrigerant at the
factory.
See Fig. 1 for model number nomenclature. See Fig. 2-16 for
unit dimensions and service clearances.
Rated Indoor Airflow (cfm)
Table 1 lists the rated indoor airflow used for the AHRI efficiency
rating for the units covered in this document.
Table 1 — Rated Indoor Airflow
WARNING
FIRE HAZARD
Failure to follow this warning could result in severe personal
injury and/or property damage.
Manifold pressure tap set screw must be tightened and
1/8 in. NPT pipe plug must be installed to prevent gas leaks.
WARNING
FIRE HAZARD
Failure to follow this warning could result in severe personal
injury and/or property damage.
Manifold pressure tap set screw must be tightened and
1/8 in. NPT pipe plug must be installed to prevent gas leaks.
WARNING
Use caution when servicing compressor terminal pins. System
or compressor abnormalities can dislodge pins allowing oil
and refrigerant to vent under pressure.
AVERTISSEMENT
Soyez prudent lors de l’entretien des bornes du compresseur.
Les anomalies du système ou du compresseur peuvent déloger
les bornes, permettant à l’huile et au réfrigérant de s’évacuer
sous pression.

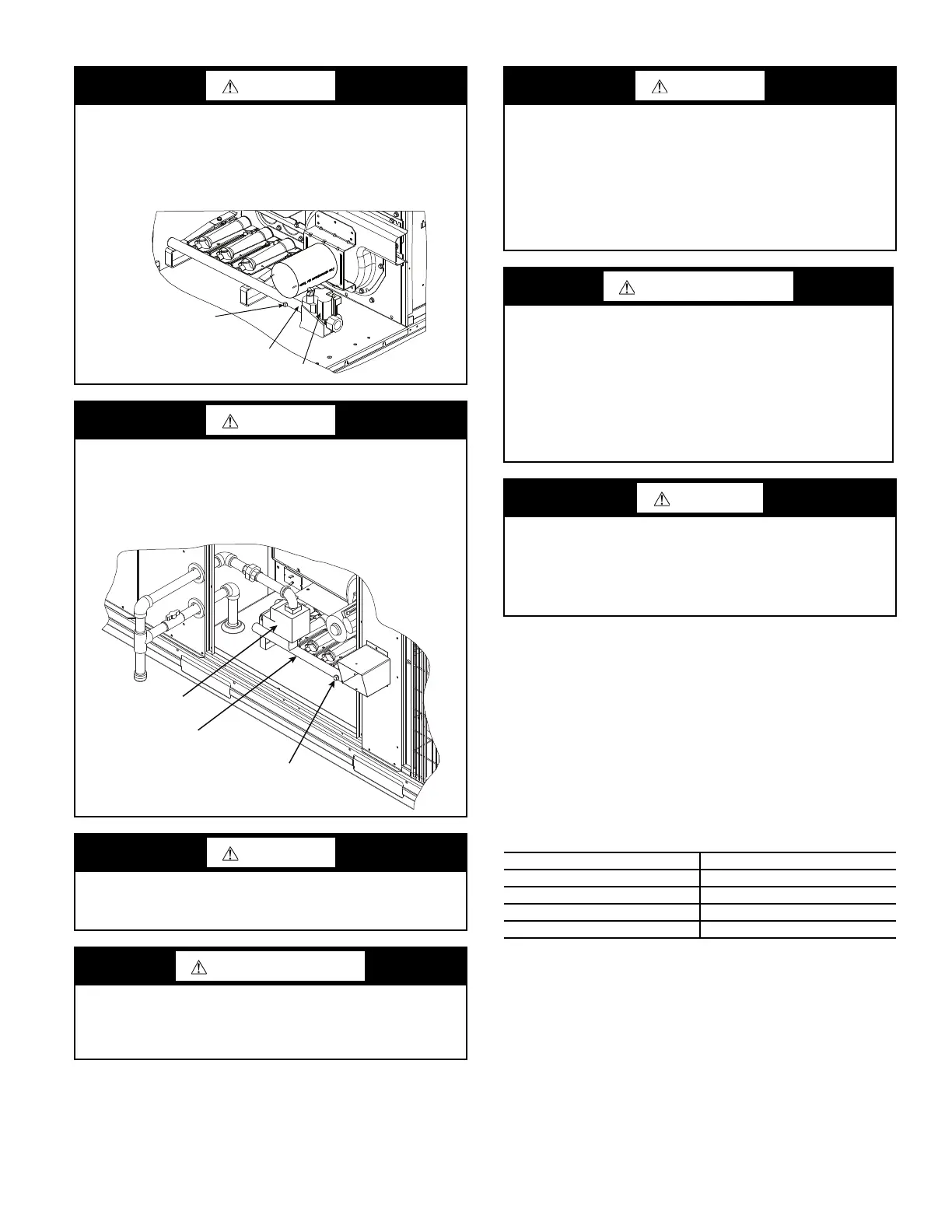

Manifold
Gas Valve
Manifold Pressure
Tap Set Screw
Manifold
Gas Valve
Manifold
Pressure Tap
Set Screw
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow the safety warnings exactly could result in
serious injury, death or property damage.
Never test for gas leaks with an open flame. Use a
commercially available soap solution made specifically for the
detection of leaks to check all connections. A fire or explosion
may result causing property damage, personal injury or loss of
life.
AVERTISSEMENT
RISQUE D'INCENDIE OU D'EXPLOSION
Si les consignes de sécurité ne sont pas suivies à la lettre, cela
peut entraîner la mort, de graves blessures ou des dommages
matériels. Ne jamais vérifier la présence de fuites de gaz au
moyen d’une flamme nue. Vérifier tous les raccords en
utilisant une solution savonneuse commerciale conçue
spécialement pour la détection de fuites. Un incendie ou une
explosion risque de se produire, ce qui peut entraîner la mort,
des blessures ou des dommages matériels.
CAUTION
PERSONAL INJURY HAZARD
Failure to follow this caution may result in personal injury.
Sheet metal parts may have sharp edges or burrs. Use care and
wear appropriate protective clothing, safety glasses and gloves
when handling parts and servicing air conditioning equipment.
MODEL NUMBER FULL LOAD AIRFLOW (cfm)
48FE**20 6125
48FE**24 7000
48FE**28 8350
48FE**30 10000
