27

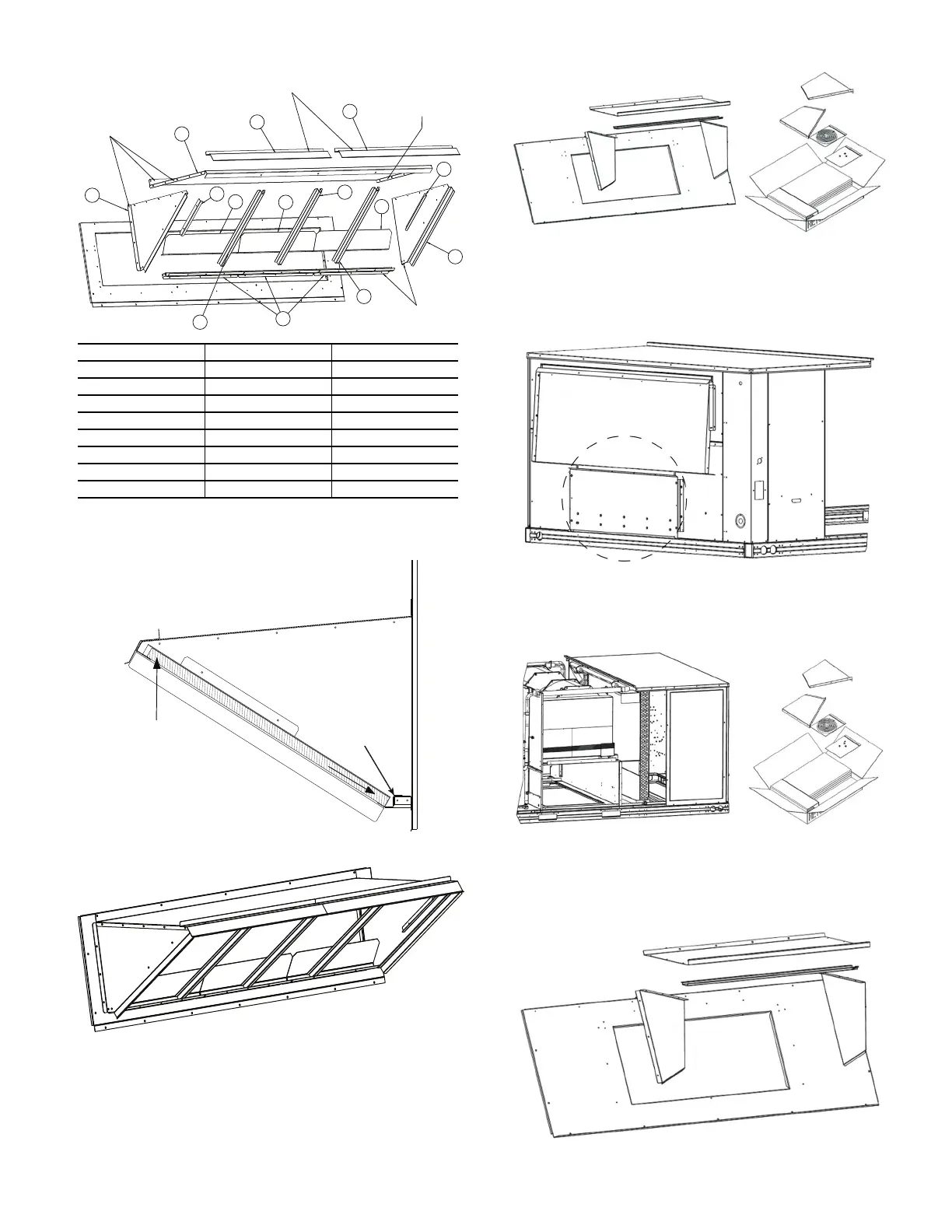

Fig. 26 — Hood Part Identification and Seal Strip
Application Areas
Fig. 27 — Outdoor Air Screen Installation
Fig. 28 — Completed Hood Assembly
Step 9 — Assemble Barometric Hood
The barometric hood can be assembled in vertical or horizontal
configuration. Figure 29 illustrates the barometric hood parts.
Fig. 29 — Barometric Hood Parts
BAROMETRIC HOOD (VERTICAL CONFIGURATION)
1. Remove the hood top panel from its shipping position on the
unit end (see Fig. 30).
Fig. 30 — Shipping Location, Vertical Units
2. Remove the side panels located in the hood parts box (see
Fig. 31).
Fig. 31 — Barometric Hood Box Parts Location
3. Install parts as shown in the following exploded view (see
Fig. 32) using the seal strip and screws provided in the parts
box.
Fig. 32 — Barometric Hood Exploded View
Apply seal strip
to the front of
this flange
Apply seal strip
to the back
of this flange
Apply seal strip
to the back
of this flange
Apply seal strip
to the back
of this flange
7
7
3
5
6
8
8
2
8
6
4
2
1
2
ITEM DESCRIPTION QTY
1 Filter Supports 3
2 Central Retainer 3
3 Hood Top 1
4 Left Hood Side 1
5 Right Hood Side 1
6 Side Retainer 2
7 Top Diverters 2
8 Deflector 3
Insert
Air Screen
Slide
Into
Position
