i-Vu® XT Router (drv_gen5) CARRIER CORPORATION ©2022
Installation and Start-up Guide 3 All rights reserved
Port S2
For communication with a BACnet MS/TP network at 9600 to 115200 bps. This
port's End of Net? switch can be set to Yes to terminate the network segment.
Service Port
Ethernet port at 10 or 100 Mbps for system start-up and troubleshooting
USB port
USB 2.0 host port for device recovery
Microprocessor
32-bit ARM Cortex-A8, 600MHz, processor with multi-level cache memory
Memory
16 GBs eMMC Flash memory (120 MB available for use) and 256 MB DDR3
DRAM.
User data is archived to non-volatile Flash memory when parameters are changed,
every 90 seconds, and when the firmware is deliberately restarted.
Real-time clock
Real-time clock keeps track of time in the event of a power failure for up to 3 days.
Protection
Device is protected by a replaceable, fast acting, 250 Vac, 2A, 5mm x 20mm glass
fuse.
The power and network ports comply with the EMC requirements EN50491-5-2.
CAUTION To protect against large electrical surges on serial EIA-485
networks, place a PROT485 at each place wire enters or exits the building.
LED status indicators
• Tricolor NET LED to show network status
• Tricolor SYS LED to show system status
• A TX (Transmit) and RX (Receive) LED for the following ports:
Gig-E
Port S1
Port S2
See LEDs (page 35).
Environmental operating
range
-40 to 158°F (-40 to 70°C), 10-95% relative humidity, non-condensing
Physical
Fire-retardant plastic ABS, UL94-5VA
Terminal blocks and
connectors
Screw-type terminal blocks.
0.2 in (5.08 mm) pitch connectors
Mounting
35mm DIN rail mounting or screw mounting

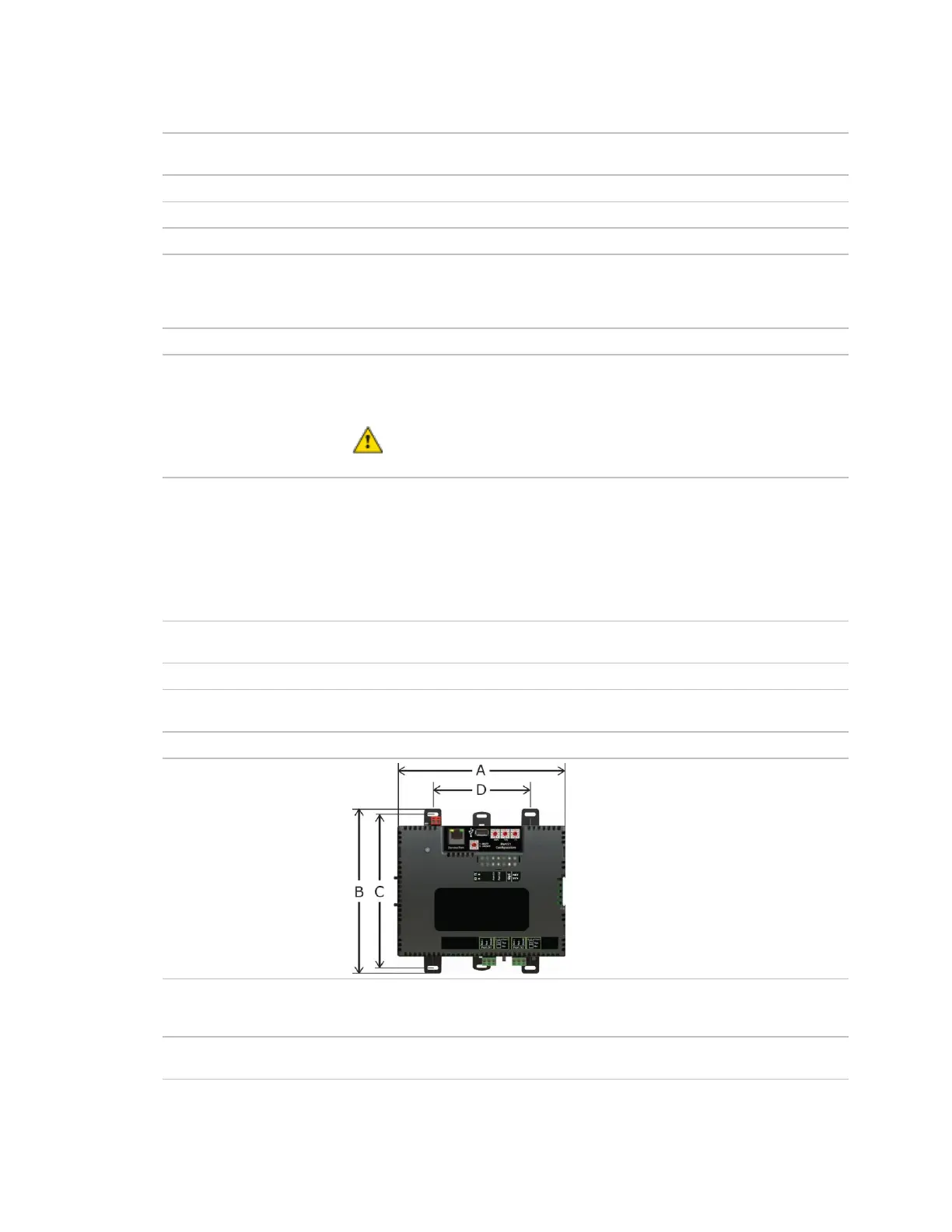

Overall dimensions
A:
B:
Depth:
7.1 in. (18.03 cm)
6.95 in. (17.65 cm)
2.09 in. (5.31 cm)
Screw mounting dimensions
C:
D:
6.45 in (16.38 cm)
4.1 in. (10.4 cm)
