Je bekijkt pagina 38 van 84
38

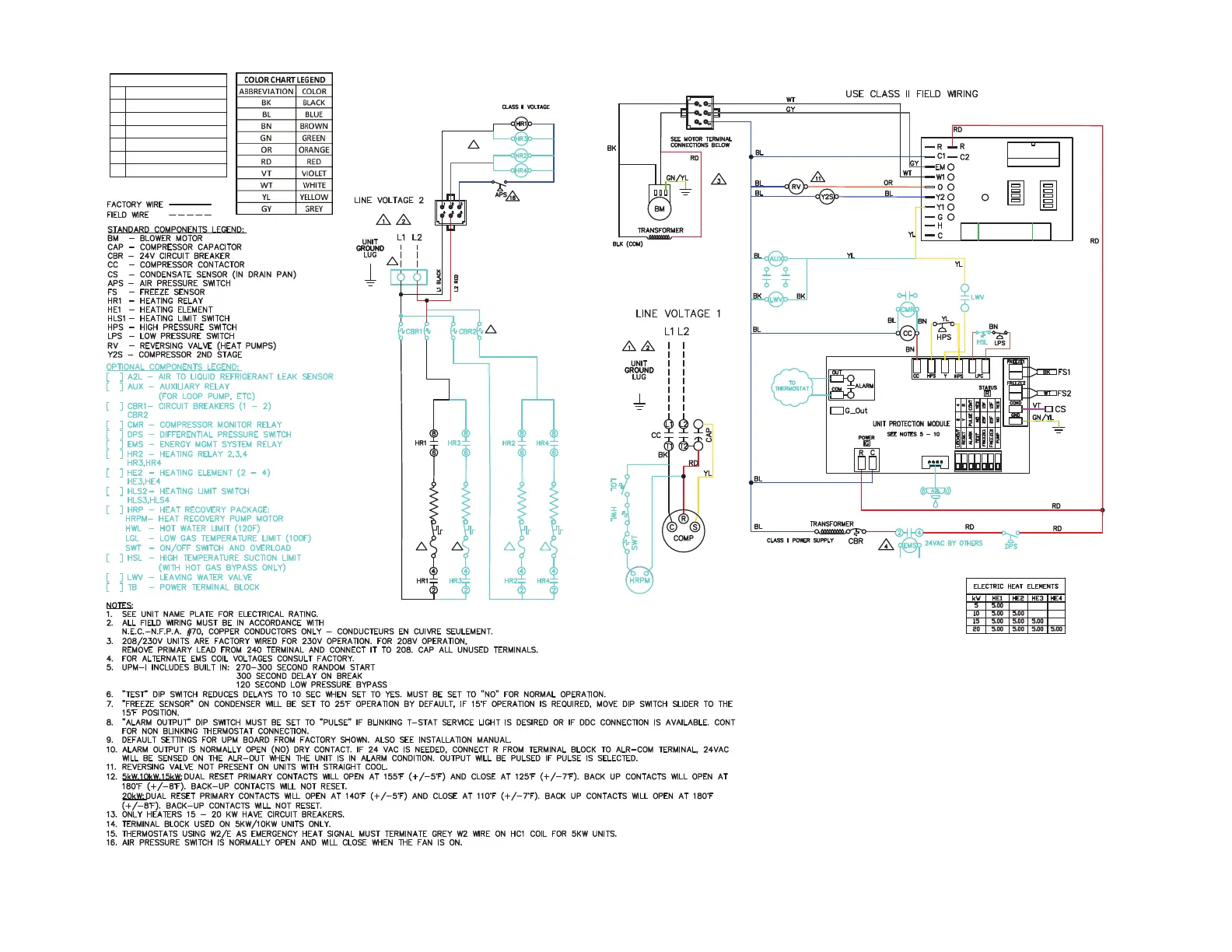

Fig. 35 — Single Phase, Constant Airflow ECM Motor, E-Heat, Dual Point Power, Standard Two Stage Unit (2 - 6 tons)
THERMOSTAT
R C G O Y1 Y2 W1 W2 H C
CFM
ADJUST
TO ECM MOTOR
A
B
C
D
NORM
(+)
(-)
TEST
YES
HGRH
NO
CFM
UPM STATUS LED - BLINK CODES
1
HIGH PRESSURE FAULT
2
LOW PRESSURE FAULT
3
CONDENSER FREEZE CONDITION
4 CONDENSATE OVERFLOW FAULT
5
BROWN OUT FAULT
6
EVAPORATOR FREEZE CONDITION
7
REFRIGERANT LEAKAGE
TB1
HEATER PACKAGE WIRE HARNESS PLUG
CONNECTED TO MAIN CONTROL BOX
GREY -W2
WHITE -W1
BLUE -C
NOTE: L1 AND L2 PROVIDE POWER TO
CONTROL TRANSFORMER AND BLOWER MOTOR
HEATER CIRCUIT 3
HEATER CIRCUIT 1
HLS1
HE1
HLS3
HE3
13
L2
L1
RED
BLACK
BLACK
RED
RED
14
15
1212
HEATER CIRCUIT 4
HEATER CIRCUIT 2
HLS2
HE2
HLS4
HE4
L2
L1
RED
BLACK
BLACK
RED
RED
12
12
BLACK
BLACK
8733841692
