3. Rotating each sheave a half revolution will determine
whether the sheave is wobbly or the drive shaft is bent. Cor-
rect any misalignment.
4. With sheaves aligned, tighten cap screws evenly and
progressively.
NOTE: There should be a 1/8 in. to 1/4 in. gap between the
mating part hub and the bushing flange. If gap is closed, the
bushing is probably the wrong size.
5. With taper-lock bushed hubs, be sure the bushing bolts are
tightened evenly to prevent side-to-side pulley wobble.
Check by rotating sheaves and rechecking sheave alignment.

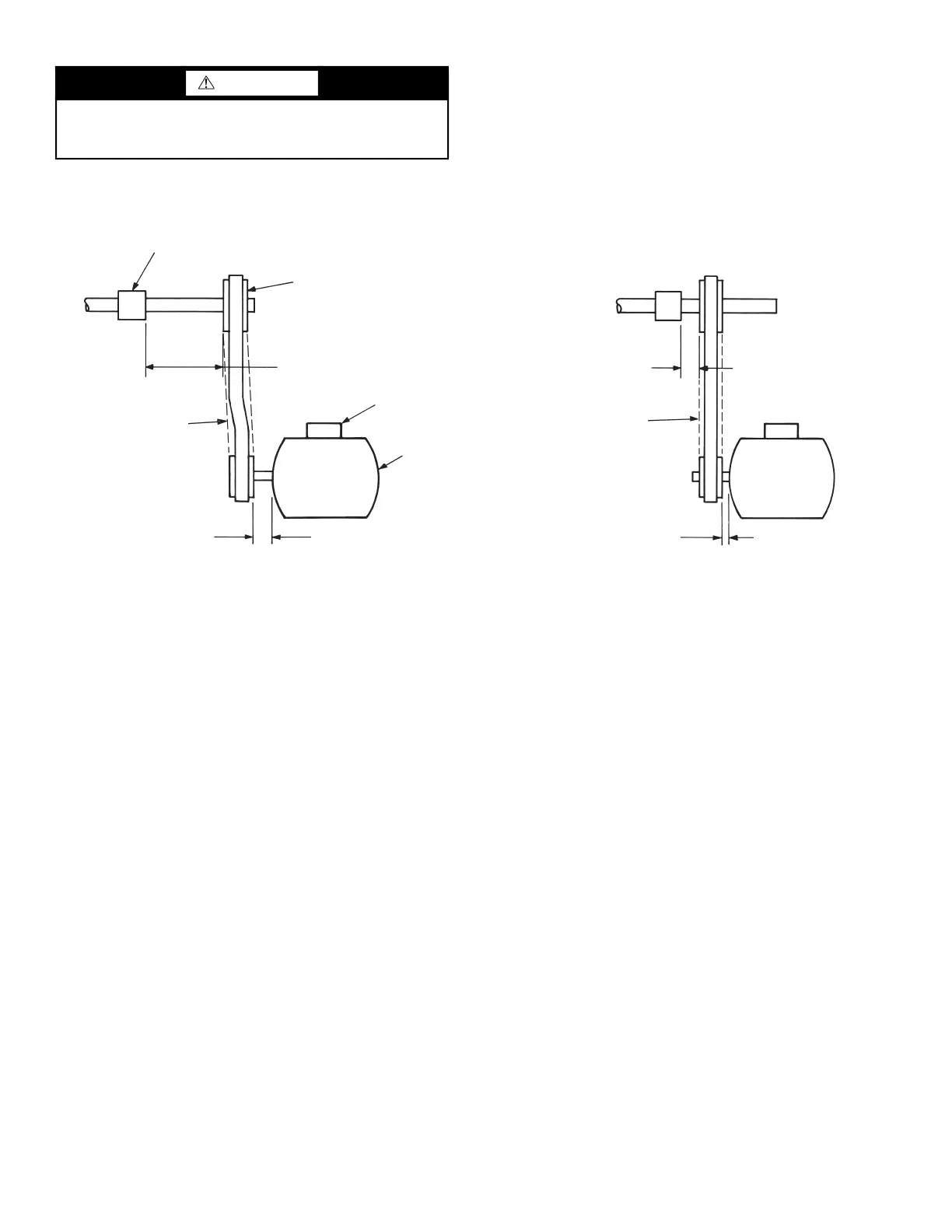

Fig. 47 — Determining Sheave-Shaft Overhang
CAUTION
With adjustable sheave, do not exceed maximum fan rpm.
Failure to follow these instructions may result in equipment
damage.
Shaft Bearing
Driven Sheave
Excessive
Overhang
Sheaves
Misaligned
Excessive
Overhang
Electrical
Junction Box
Motor and Drive Sheave
Minimum
Overhang
Aligned
Sheave
Minimum
Overhang
Poor Installation
Better Installation
