32

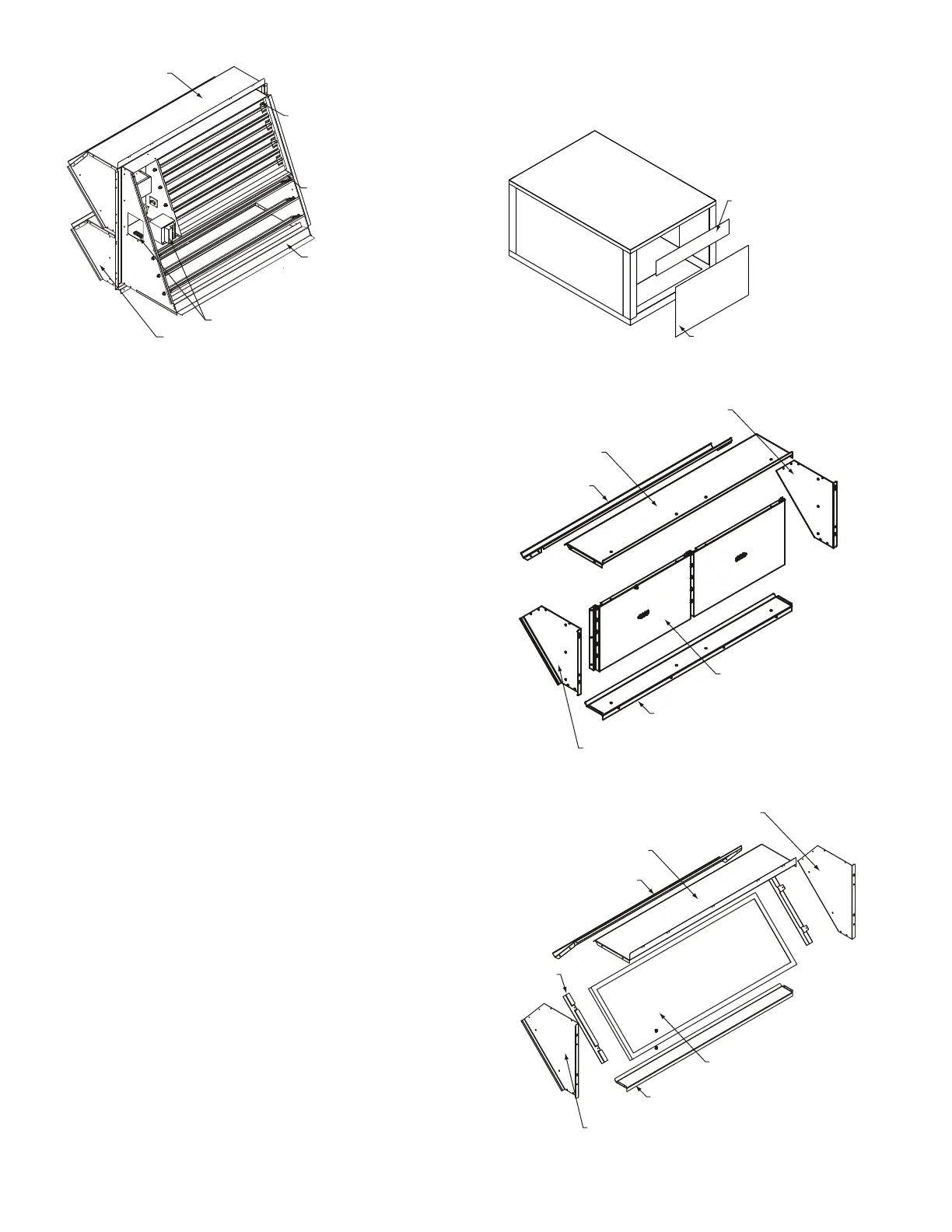

Fig. 32 — Bottom Return Economizer Package
(BREP) for Sizes 07-17
3. Remove return air access panel from unit and rear access
panel(s) if applicable as shown in Fig. 33.
4. To assemble the barometric relief hood, the following will be
needed. See Fig. 34.
30 – Screws (type A No. 10 - 16 x 1/2 in.)
1 – 15 ft gasket (1/8 in. x 1/2 in.)
1 – 15 ft gasket (1/8 in.
x 3/4 in.)
a. Take hood bottom and left hood panel, putting the flange
of hood bottom to the inside of left hood panel and screw
into place.
b. Take right hood panel and screw in place like Step a.
c. Take top rail and place flanges over left hood panel and
right hood panel and secure.
d. Take top panel and do the same as Step c.
e. Take 1/8 in. x 3/4 in.
gasket and place around perimeter
of front panel to seal between damper section and hood.
f. Take front panel and slide inside of left hood panel and
right hood panel and secure.
g. Set barometric relief hood to the side for use later.
5. To assemble the outside air hood, the following will be
needed. See Fig. 35.
20 – Screws (type A No. 10 - 16 x 1/2
in.)
1 – 15 ft gasket (1/8
in. x 1/2
in.)
a. Take hood bottom and left hood panel, putting the flange
of hood bottom to the inside of left hood panel and screw
into place.
b. Place 1/8 in.
x 1/2 in.
gasket on flanges on hood bottom,
left hood panel, right hood panel, and top panel that
attach to the face of the economizer when installed.
c. Take right hood panel and screw in place like Step a.
d. Take top rail and place flanges over left hood panel and
right hood panel and secure.
e. Take side rail and line up to holes in left hood panel and
secure.
f. Repeat Step d for side rail and right hood panel.
g. Take front panel and slide inside of side rails.
h. Take top panel and do the same as Step d.
i. Place 1/8 in. x 1/2 in. gasket on flanges on hood bottom,
left hood panel, right hood panel, and top rail that attach
to the face of the economizer when installed.
j. Set outside air hood to the side for use later.
6. Slide economizer assembly into unit over return opening, but
DO NOT insert completely into unit, as shown in Fig. 36.
Connect low and high voltage wiring to the terminal block
and transformer per wiring diagram shown in Fig. 37.
Fig. 33 — Remove Access Panel(s) from Unit
Fig. 34 — Assemble Barometric Relief Hood
Fig. 35 — Assemble Outside Air Hood
Outdoor Air Hood
Outdoor Air Damper
Economizer Assembly
Return Air Damper
Control and Harness
Barometric Relief Hood
Rear Access Panel
(Removed)
Return Air Access Panel
(Removed)
Right Hood Panel
Top Panel
Top Rail
Left Hood Panel
Hood Bottom
Front Panel
Right Hood Panel
Top Panel
Top Rail
Side Rail
Left Hood Panel
Hood Bottom
Front Panel
