19

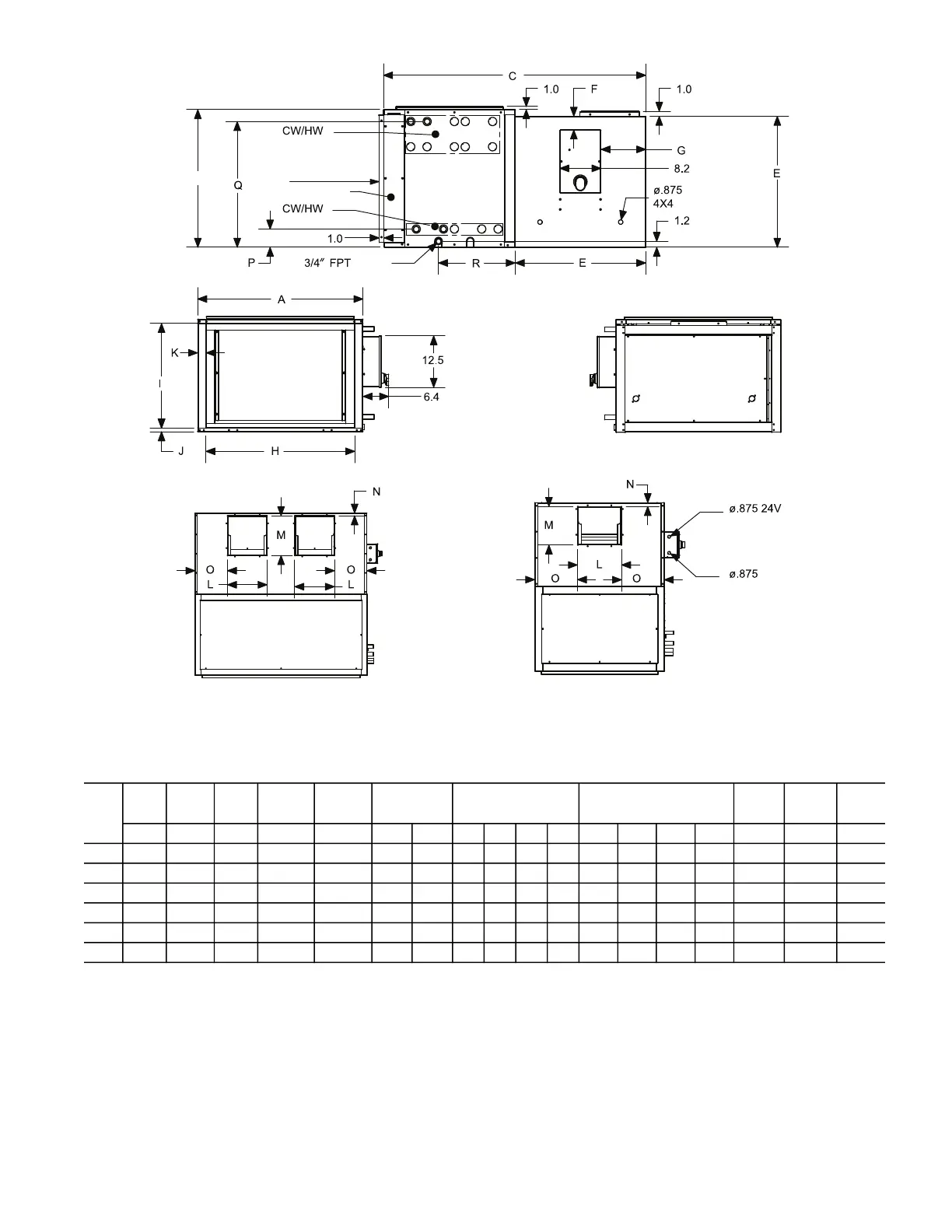

Fig. 14 — 39SM Unit Sizes 04-17 (Horizontal Configuration)
“
Filters
Access Panel
Rear View
Front View
Top View
Sizes 13, 17
Top View
Sizes 04-09
Right View
Drain
D and B
Return Area
AirFlow
Filter Access
Supply Area
Power Conn.
JBOX (w/o MSS)
Control Conn.
Opp. Side
Power Conn.
LEGEND
Dimensions (in.)
a,b,c,d,e
NOTE(S):
a. Dimensions shown in inches.
b. Hand connections are defined by looking at the filters in the direction of airflow.
c. Coil section and blower ship separately and are installed by others.
d. Blower section may be rotated 180 degrees to relocate supply duct.
e. See Fig. 24 for 39SM modular configurations.
39SM
UNIT
SIZE
WIDTH HEIGHT DEPTH
COIL
SECTION
BLOWER
SECTION
MOTOR
START/STOP
(OPT.)
RETURN DUCT
SUPPLY DUCT
(BLOWER OPENING)
SUPPLY
CONN.
RETURN
CONN.
DRAIN
A B C D E F G H I J K L M N O P Q R
04 40.0 27.5 52.0 27.5 26.0 2.7 8.9 36.0 25.5 1.0 2.0 13.6 11.9 1.1 13.1 3.6 20.0 15.2
05 40.0 27.5 52.0 27.5 26.0 2.7 8.9 36.0 25.5 1.0 2.0 13.6 11.9 1.1 13.1 3.6 25.0 15.2
07 50.0 34.5 68.0 34.5 34.0 6.8 12.9 48.0 32.0 1.0 1.0 13.4 16.2 1.2 18.3 3.6 25.0 22.5
09 50.0 34.5 68.0 34.5 34.0 6.8 12.9 48.0 32.0 1.0 1.0 13.4 16.2 1.2 18.3 3.6 30.0 22.5
13 72.0 47.5 68.0 47.5 34.0 6.7 12.9 66.0 45.0 1.0 2.9 16.4 16.4 1.1 14.0 3.6 30.0 23.0
17 72.0 47.5 68.0 47.5 34.0 6.7 12.9 66.0 45.0 1.0 2.9 16.4 16.4 1.1 14.0 3.6 42.6 23.0
CW — Chilled Water
HW — Hot Water
JBOX — Junction Box
w/o MSS — Without Motor Start/Stop Station
