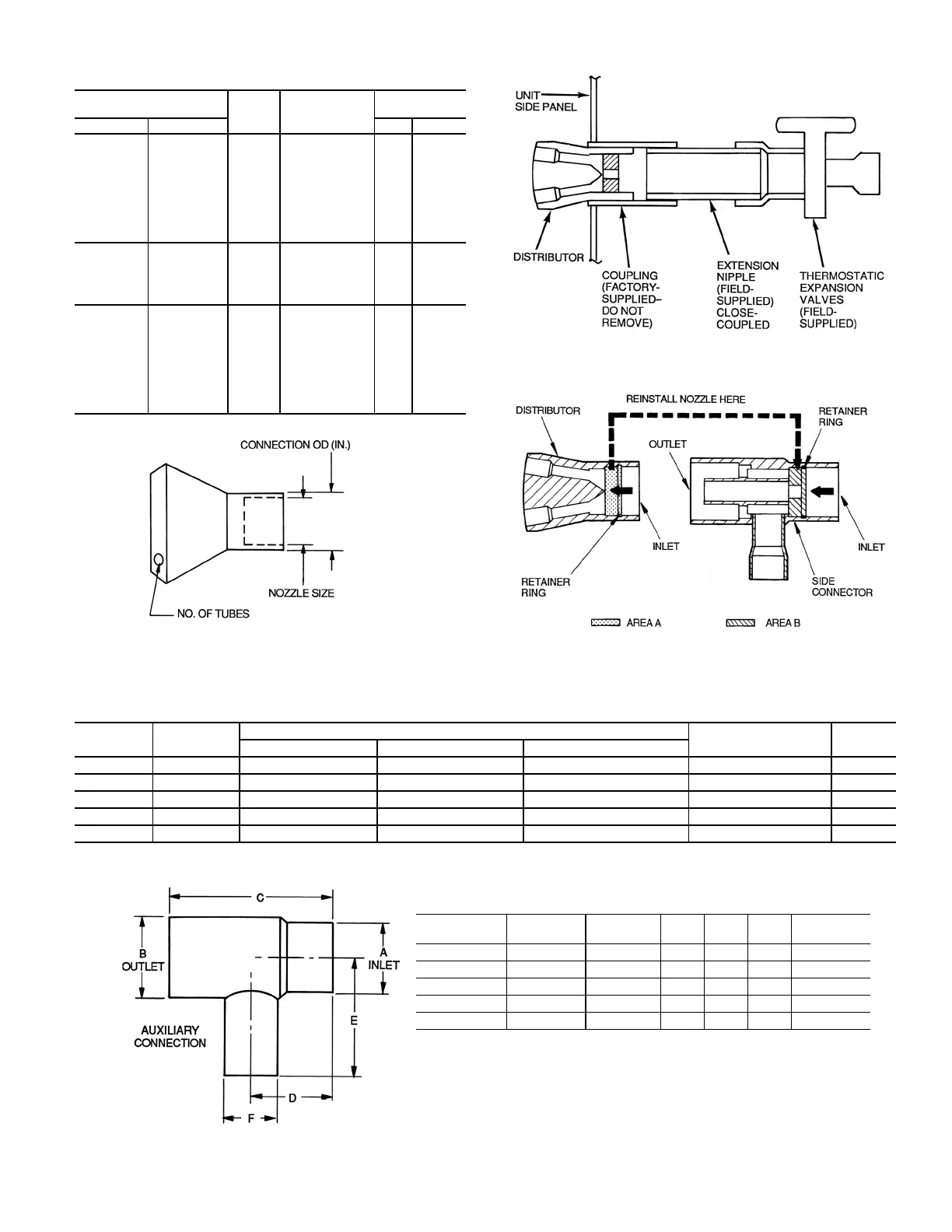

Table 18 — Distributor Part Numbers
Fig. 54 — Expansion Valve Piping
Fig. 55 — Distributor and Hot Gas Bypass Auxiliary
Side Connector
Table 19 — Side Connector (Hot Gas Bypass) Data
Fig. 56 — Side Connector (Hot Gas Bypass) Dimensions
PART NO.
NO.
OF
TUBES
CONNECTION
OD (in.)
SPORLAN
NOZZLE
Sporlan Carrier Type Size
1112-2-1/4 EA07NC261 2
0.88 G 3/4 to 12
1112-3-1/4 EA07FC027 3
1112-4-1/4 EA07NC262 4
1112-5-1/4 EA07NC263 5
1112-6-1/4 EA07NC264 6
1113-7-1/4 EA07HC207 7
1113-8-1/4 EA07HC208 8
1115-8-1/4 EA07KC240 8
1.12 E 3 to 30
1115-9-1/4 EA07KC241 9
1115-10-1/4 EA07KC242 10
1116-11-1/4 EA07HC011 11
1117-11-1/4 EA07LC510 11
1.38 C 3 to 50
1117-12-1/4 EA07HC012 12
1117-13-1/4 EA07HC013 13
1126-14-1/4 EA07TC290 14
1126-15-1/4 EA07HC015 15
1126-16-1/4 EA07TC207 16
1126-17-1/4 EA07HC017 17
SPORLAN
TYPE
CARRIER
PART NO.
CONNECTION SIZES (in.)
USED WITH
DISTRIBUTOR TYPE
NOZZLE
SIZE
Inlet — ODM Solder Outlet — ODF Solder Auxiliary — ODF Solder
ASC-5-4 —
5/8 5/8 1/2 1620, 1622 J
ASC-7-4 EA19BA504 7/8 7/8 1/2 1112, 1113 G
ASC-9-5 EA19BA705 1-1/8 1-1/8 5/8 1115, 1116 E
ASC-11-7 EA19BA905 1-3/8 1-3/8 7/8 1117, 1126 C
ASC-13-9 — 1-5/8 1-5/8 1-1/8 1125, 1127, 1143 A
Dimensions (in.)
LEGEND
SPORLAN
TYPE
ABCDEF
ASC-5-4 5/8 ODM 5/8 ODF 1.88 0.95 1.25 1/2 ODM
ASC-7-4 7/8 ODM 7/8 ODF 2.25 1.06 1.38 1/2 ODM
ASC-9-5 1-1/8 ODM 1-1/8 ODF 2.81 1.47 1.62 1-5/8 ODM
ASC-11-7 1-3/8 ODM 1-3/8 ODF 3.53 1.89 2.19 1-7/8 ODM
ASC-13-9 1-5/8 ODM 1-5/8 ODF 3.72 1.83 2.75 1-1/8 ODM
ODF — Outside Diameter, Female
ODM — Outside Diameter, Male
