5
4.3 Typical Assemblies, Dimensions And Service Areas
4.4 The 39G Air Handling Units are as standard fitted
with factory installed spring or rubber type anti-vibrations
mounts. Externally mounted anti-vibration mounts
in addition to the factory installed anti-vibration are
not recommended.
4.5 When the 39G Air Handling Units are required to
be suspended a platform is required. The platform
must be constructed such that it is strong enough
to support the whole air handling unit under operating
condition. In doubt, please consult your nearest
Carrier representatives.
5.0 UNIT IDENTIFICATION
Each air handling unit will have the identification
sticker on the outer skin of the door to the fan section.
If identification stickers should become lost or
unreadable at job site, refer to your nearest Carrier
representatives for the nomenclature.
Air Flow Direction
Unit Size
A
B C D E Unit Size
A
BCDE
39G0608 800 1000 1100 600 500 39G1420 2000 1000 2300 1300 800
39G0609 900 1000 1200 700 500 39G1621 2100 1500 2400 1400 800
39G0711 1100 1000 1400 700 500 39G1822 2200 1500 2500 1400 900
39G0811 1100 1000 1400 700 500 39G1825 2500 1500 2800 1500 900
39G0912 1200 1000 1500 800 500 39G2025 2500 1500 2800 1500 900
39G0913 1300 1000 1600 800 600 39G2125 2500 1500 2800 1700 1100
39G0914 1400 1000 1700 900 600 39G2226 2600 2000 2900 1700 1100
39G1015 1500 1000 1800 900 600 39G2230 3000 2000 3300 1900 1100
39G1117 1700 1000 2000 1100 600 39G2234 3400 2000 3700 1900 1100
39G1317 1700 1000 2000 1100 600 39G2634 3400 2000 3700 2000 1100
39G1418 1800 1000 2100 1100 800
Note:
(1) For dimension A & D and other
numeral value, add the frame
thickness respectively.
py
~ 50mm for 25mm casing
~ 100mm for 50mm casing
(2) Dimension C is where the access door
and coil connection end applied
accordingly.
Fig. 8 Identification Sticker

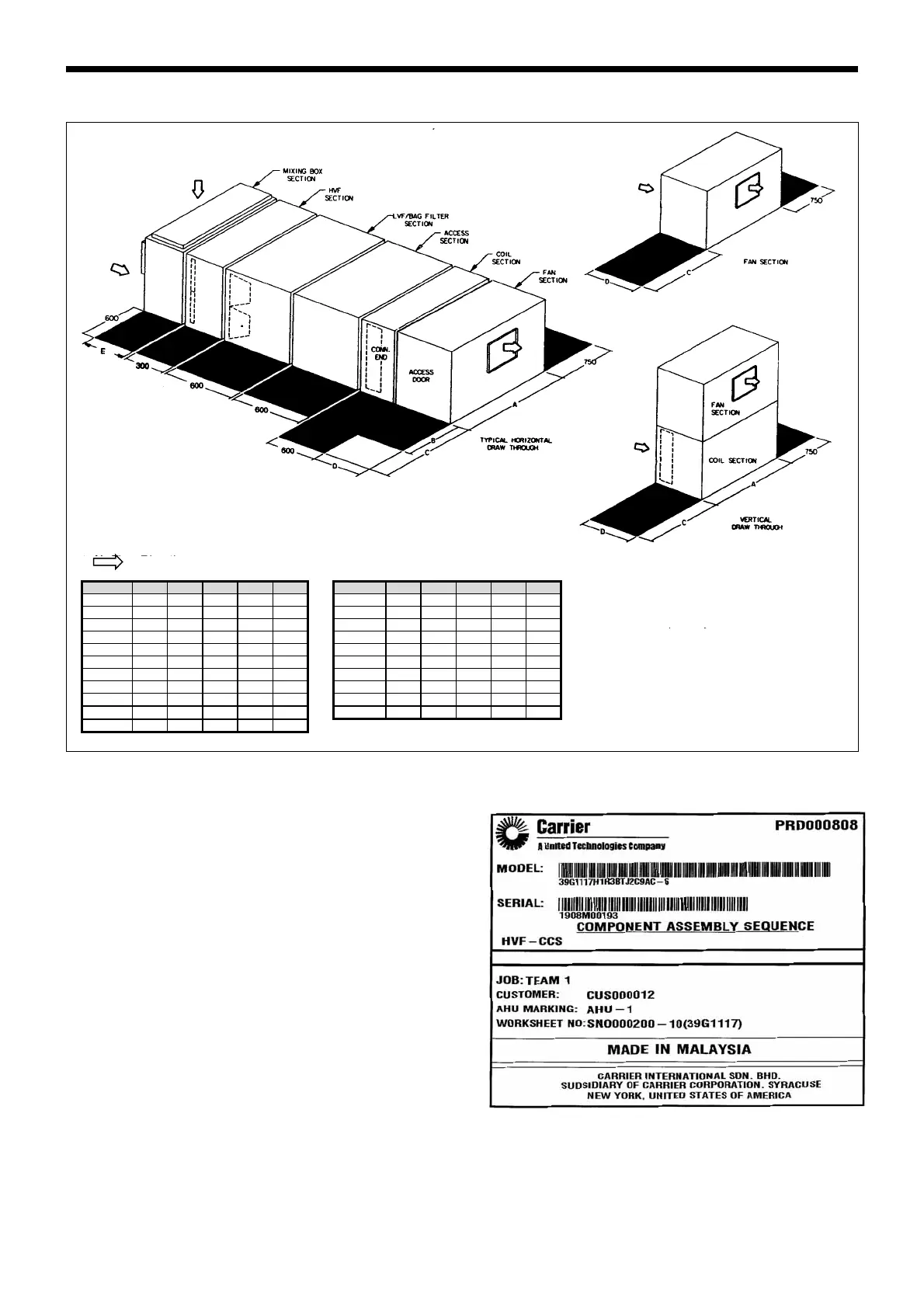

Fig. 7 Typical Assemblies Dimensions and Service Area
