CONNECTIONS (CONT.)

These vehicles will connect to the wiring harness located at the climate control location. Reference the pin cavity from the front of the connector, then trace that pin to the wire behind the

connector. As an alternate Plug n” Play solution, use Metra part number AXSSO-FD instead, which will include a wiring harness and interface.

Ford

F-150 2015-Up

• Disassembly instructions: metraonline.com/part/99-5834CH

Fusion 2015-Up

• Disassembly instructions: metraonline.com/part/99-5841B

Edge 2015-Up

• Disassembly instructions: metraonline.com/part/99-5851CH

Climate Control Connector (pin view)

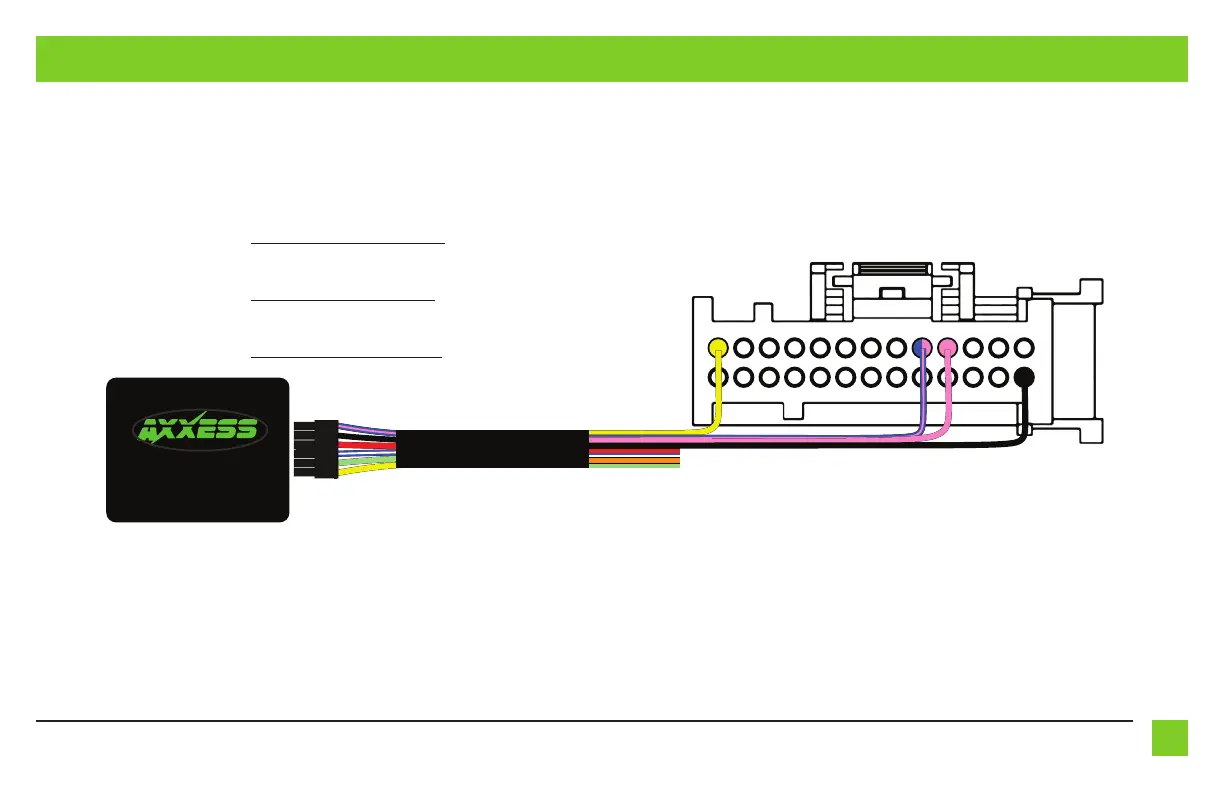

From the AXSSO harness to the wiring harness in the vehicle behind the climate control:

1. Connect the Black wire to Pin-1.

2. Connect the Yellow wire to Pin-26.

3. Connect the Pink wire to Pin-17.

4. Connect the Blue/Pink wire to Pin-18.

5. Any remaining wires tape off and disregard.

This is the view of the factory connector behind the climate

control, looking at the front of the connector (pin view)

after it has been unplugged from the radio.
