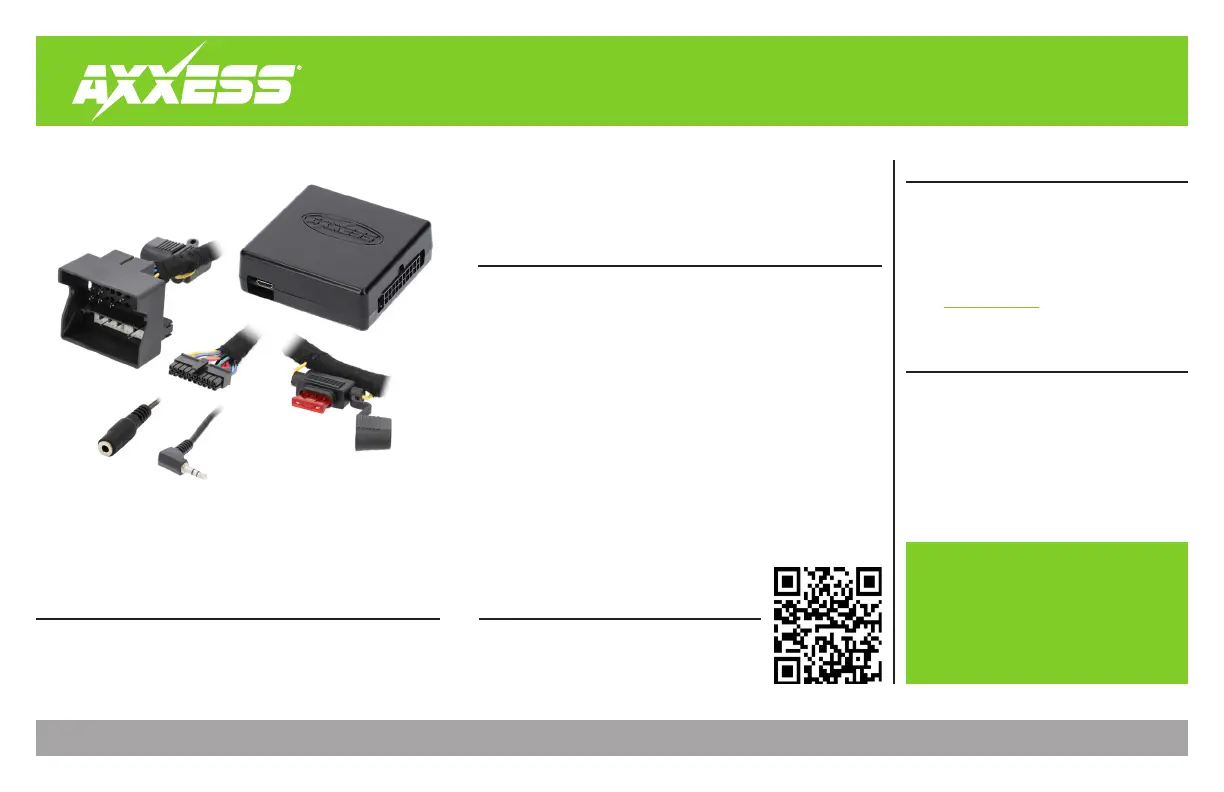

AXTC-MB3
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 11/16/23 INSTAXTC-MB3
ATTENTION: With the key out of the ignition, disconnect
the negative battery terminal before installing this
product. Ensure that all installation connections,
especially the air bag indicator lights, are plugged in
before reconnecting the battery or cycling the ignition to
test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
TABLE OF CONTENTS
Connections: LD-SWCX-MB3 .................................2
Programming .........................................................3
Troubleshooting.....................................................4
Connector View ...................................................... 4
Mercedes SWC (Steering Wheel Control)
and Data Interface 2016-2021
INTERFACE FEATURES
Designed for non-amplified models
Provides accessory power (12 volt 10-amp)
Provides wires for multimedia radios (park brake, reverse, speed sense)
Retains audio controls on the steering wheel
Designed to be compatible with all major radio brands
Auto detects vehicle type, radio connection, and preset controls
Ability to dual assign steering wheel control buttons
Retains memory settings even after battery disconnection or
interface removal (nonvolatile memory)
Provides illumination output
Micro-B USB updatable
INTERFACE COMPONENTS
AXTC-MB3 Interface
LD-SWXC-MB3 Harness
3.5mm Adapter
APPLICATIONS
Mercedes
C Class .................................................................................. 2016-2021
ML/GL ................................................................................... 2016-2021
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors or
• Solder gun, solder, and heat shrink
• Tape
• Wire cutter
• Zip-ties
• Multimeter
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications.
