CONNECTIONS (CONT.)

These vehicles will connect at the wiring harness located behind the OBD2 connector under the driver’s side dashboard. Reference the pin cavity from the front of the connector, then trace that

pin to the wire behind the connector. As an alternate Plug n” Play solution, use Metra part number AXSSO-FD instead, which will include an interface, wiring harness, and OBD2 connector

Ford

Focus 2016-Up

Escape 2017-Up

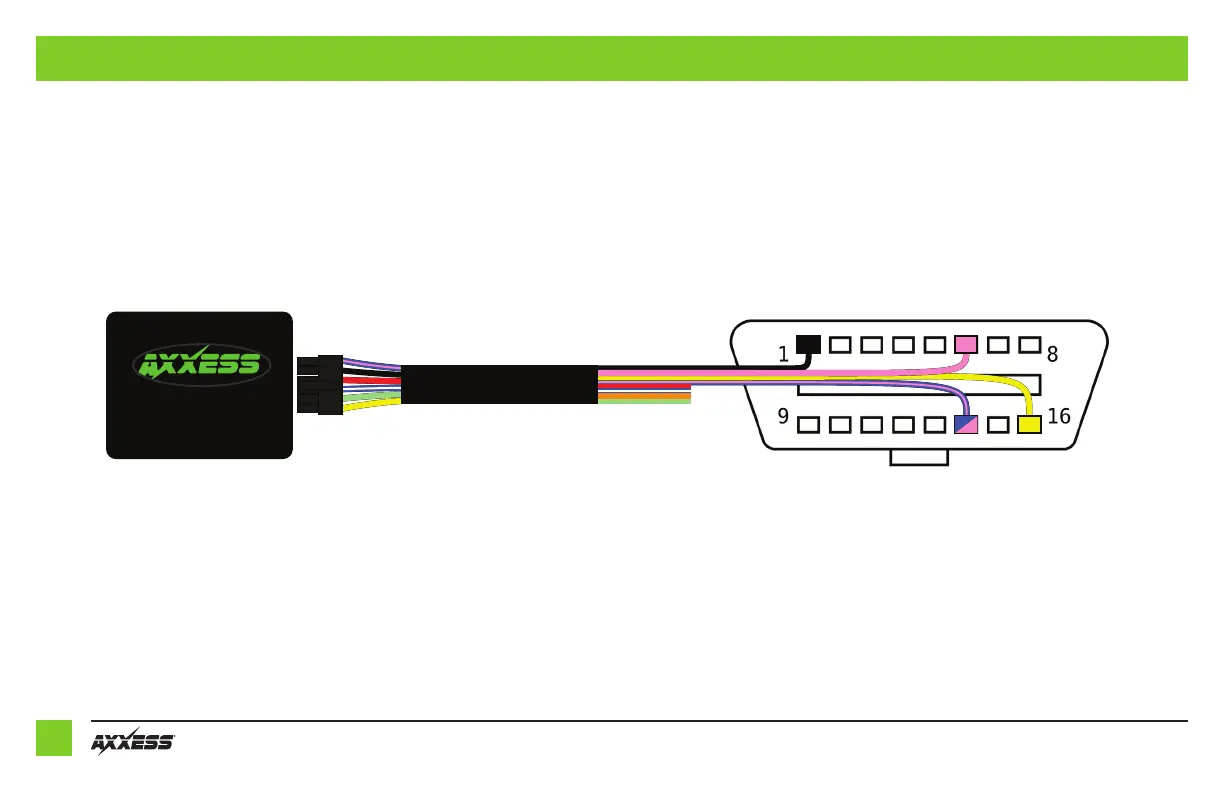

OBD Connector (pin view)

From the AXSSO harness to the wiring harness at the OBD connector:

1. Connect the Black wire to Pin-1.

2. Connect the Yellow wire to Pin-16.

3. Connect the Pink wire to Pin-6.

4. Connect the Blue/Pink wire to Pin-14.

5. Any remaining wires tape off and disregard.

This is the view of the front of the OBD2 connector under

the driver’s side dashboard (pin view)
