2 43 44

CONNECTIONS

These vehicles will connect to the wiring harness located at the radio location. Reference the pin cavity from the front of the connector, then trace that pin to the wire behind the connector.

As an alternate Plug n” Play solution, use Metra part number AXSSO-CH instead, which will include a wiring harness and interface.

Chrysler

Paciﬁca 2017

• Disassembly instructions:

metraonline.com/part/99-6543HG

Dodge

Durango 2016-Up

• Disassembly instructions:

metraonline.com/part/99-6537B

Jeep

Cherokee 2016-Up

• Disassembly instructions:

metraonline.com/part/99-6518B

Gladiator 2019-Up

• Disassembly instructions: N/A

Grand Cherokee 2015-Up

• Disassembly instructions:

metraonline.com/part/99-6536S

Wrangler 2019-Up

• Disassembly instructions: N/A

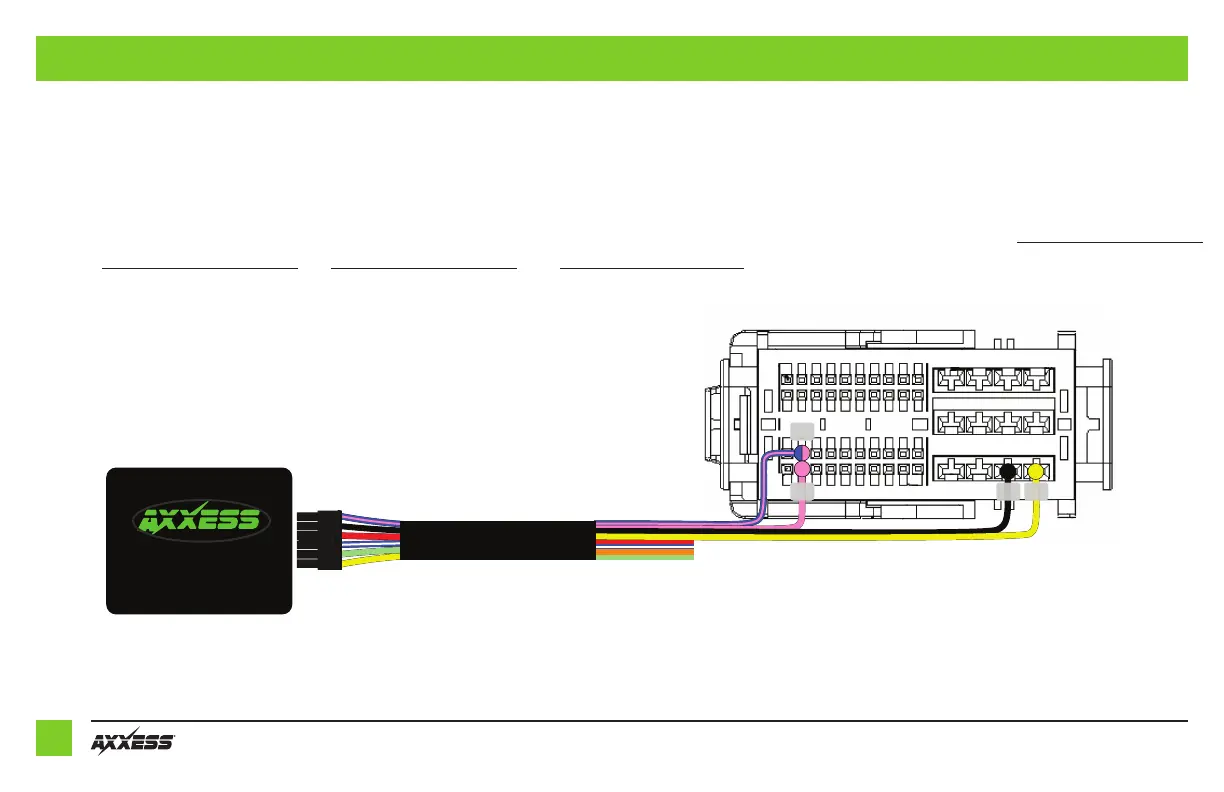

Radio Connector (pin view)

From the AXSSO harness to the wiring harness in the vehicle behind the radio:

1. Connect the Black wire to Pin-43.

2. Connect the Yellow wire to Pin-44.

3. Connect the Pink wire to Pin-2.

4. Connect the Blue/Pink wire to Pin-12.

5. Any remaining wires tape off and disregard.

This is the view of the factory connector behind the radio,

looking at the front of the connector (pin view) after it

has been unplugged from the radio.
