REV. 1/16/25 INSTAX-LOC6.6-PRO
INTERNAL JUMPER LOCATIONS AND SETTINGS
1.
In addition to the external controls for main adjustments, the Axxess models
provide internal configuration jumpers to address specific vehicle or system
conditions.

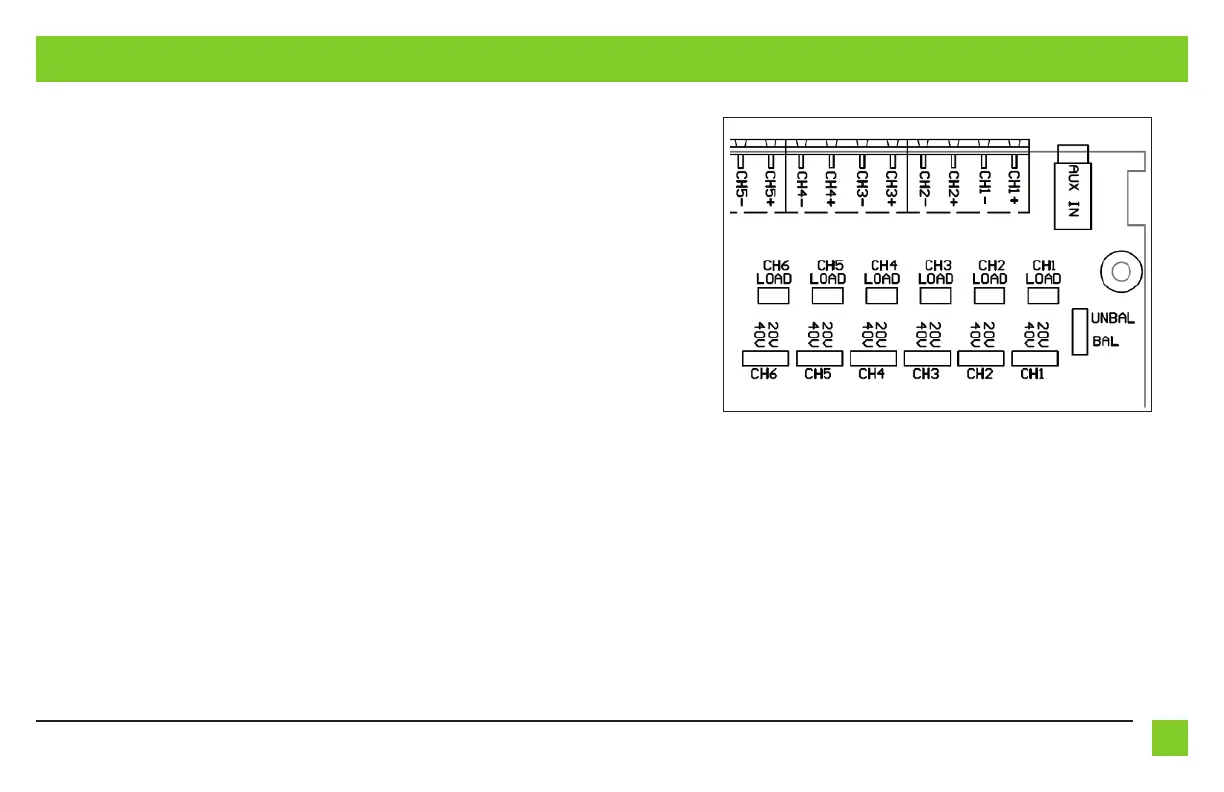

The AX-LOC6.6-PRO unit has designated internal jumper locations and default
settings, as depicted in the accompanying illustration. To access these jumpers,
simply remove the four screws from each side if the LOC to effortlessly remove the
chassis top cover. Prior to making any jumper changes, it is highly recommended to
detach the power supply connector to ensure the unit is fully powered off.
Please note the following:
• The input sensitivity range jumpers (20V/40V) can be independently set for each
speaker input channel to accommodate varying system conditions.
• The load bypass jumpers (LOAD) are specific to each speaker input channel and
should be removed or relocated to a single pin in order to disconnect the internal
loading from that channel.
• The AUX input balanced-unbalanced jumper (BALANCED/UNBALANCED) affects
both the left and right channels. Default (BALANCE)
Figure A
