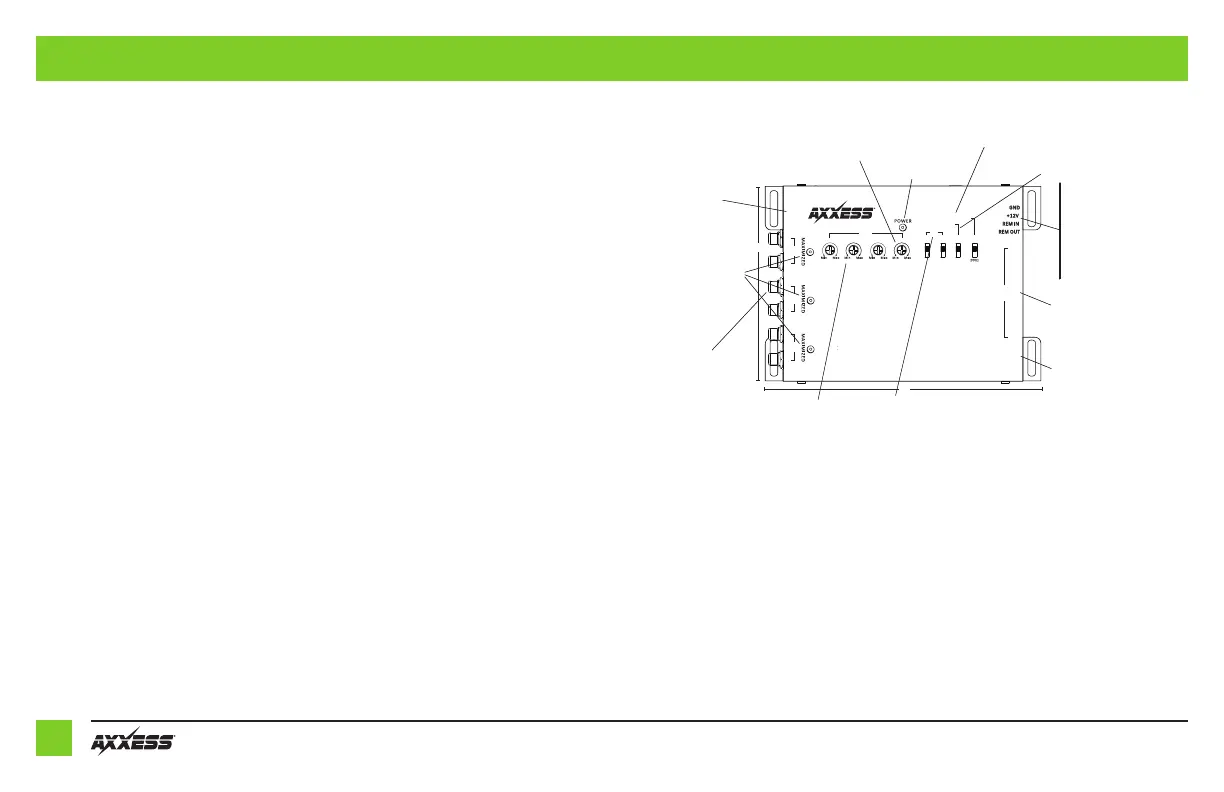

FEATURE BREAKDOWNS
Turn On Signal
Audio sense – When selected the LOC will power up when an audio signal is present, regardless
of source. If the radio is muted and the LOC doesn’t see an audio signal, it will turn off.
DC Signal Sense (Default) – Detects when the OE radio or OE amplifier turns on. The AX-LOC6.6-PRO
detects the DC voltage across the speaker leads and will provide 12 volts to the REM
OUT.
REM IN – This is the standard way to turn off aftermarket equipment by using a dedicated amp
turn on signal or a true ignition signal. When the REM IN is powered it will output through the
REM OUT.
Ground Isolation Settings – Different types of ground noise can easily enter into your audio system.
The Ground Isolation switch on the LOC will help eliminate some of the most common ground noises
with the simple flip of a switch.
GND – The ground for the LOC is tied to the ground shield of the audio signal.
ISO – The ground of the LOC and ground shield of the RCA are separated.
200
Ω
– LOC ground and ground shield of RCA are connected to each other by a 200 ohm resistor,
balancing yet isolating the ground circuit.
Input/Output Setting Switches and Summing Explanation of Input Control Switch below RCA Output
Channels 5/6
The CH1/2 Output Select Switch lets you choose how the output for CH1/2 behaves. The default
setting is 1/2 for direct input pass-through. Alternatively, you can select 5/6, which copies the
signal from CH5/6 internally after the summing stage. This is useful for combining 3-way systems
while retaining remote level control over CH5/6 and getting a separate summed full-range output
from CH1/2.
AX-L0C6.6-PRO
GROUND INSULATION
TURN ON MODE
INPUT
CH
GAIN
CH5/6 CH3/4 CH1/2 AUX
CH5/6
CH3/4
CH1/2
C3/4
DC
ISO
AUDIO
GND
CH4+6
CH 3+5
CH2+4
CH 1+3
REM
CH6-
CH6+
CH5-
CH5+
CH4-
CH4+
CH3-
CH3+
CH2-
CH2+
CH1-
CH1+
R-
R+
L-
L+
INPUT
OUT OUTOUT
CH5CH4CH6 CH3CH2 CH1
AUX IN
REMOTE
Turn on mode - Selectable three position switch that will
control when the LOC turns on. Settings are REM, DC, and
Audio. Refer to the feature detail for additional information.
REM Out - Remote turn on output. Depend-
ing on the Turn on Mode switches position
the AX-LOC6.6-PRO will provide a remote
output signal. Refer to the feature detail for
additional information.
REM In - Remote turn on input or true Igni-
tion, may dier if DC or Audio is selected on
the Turn on Mode switch.
+12 Volt - Connect to constant 12 volt source.
GND - Connect to chassis ground
Speaker Input - Speaker level input. Feed left
and right speaker wires from the head unit or
amplier to the respective terminals.
Ground Isolation - Three selections : 200 Ohm,
ISO, GND. Refer to the feature detail for addi-
tional information. Default setting: ISO
Multi-Function Remote Jack
RCA OUTPUTS
Maximized - While adjusting the
MAIN LEVEL the Maximized LED
may light up meaning a clipped
signal is detected. Reduce the
MAIN LEVEL adjustment until
the LED is no longer lit.
LEVEL Adjustments - Adjusts
the output level of the RCAs.
Auxiliary Input -AUX input is for the
connection of a portable device.
AUX Gain Adjustment - This adjustment
sets the gain for all output channels from
a low level source connected to the AUX
input jack.
Power Indicator - When lit
the AX-LOC6.6-PRO is on.
Input Control Switches- Detail switch settings
are shown on the pages to follow.
6.5”
4.75”
