GM-200
Guitar
AC adapter
Guitar Amplifier
Guitar Amplifier
OUTPUT
INPUT
DC9V
The GM-200 can be powered either from the supplied
AC adapter or from six IEC R6 (size AA) batteries.
When the GM-200 is operating on battery power, the
POWER indicator starts to flash when the batteries are
running low. In such a case, replace the batteries as
soon as possible.
1. Verify that the AC adapter, guitar, and
playback system are correctly connected
to the GM-200.
Turn off power to the amplifier before
changing the setting of the INPUT GAIN
switch. If the switch is operated while the
amplifier is on, shock noise may damage
the speakers.
2. Turn the ZNR control and MASTER
LEVEL control of the GM-200 as well as
the volume control of the playback
system to minimum.
3. Turn on the equipment in the order
GM-200 playback system.
4. Raise the MASTER LEVEL control of the
GM-200 to a position that will provide a
suitable volume.
ZOOM GM-200
Power-On
Battery Operation
5

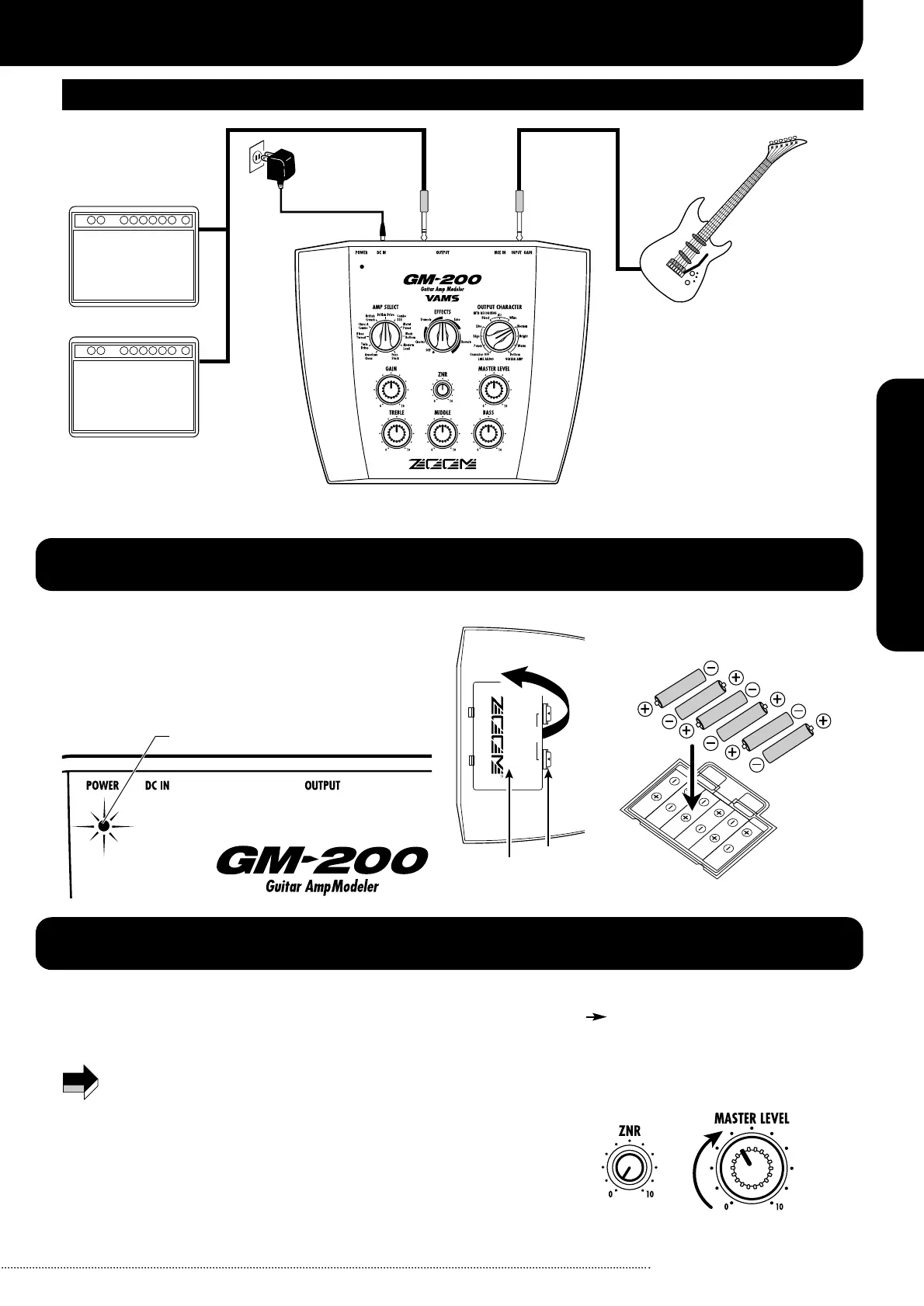

This is an example for guitar amp
connection. If you use one amplifier,
simply connect the OUTPUT jack of
the GM- 200 to the input of the
amplifier, using a shielded mono
cable. To send the output of the GM-
200 to two amplifiers, use a Y cable
(splitter). On the guitar amp, you
should use the clean channel input
with no equalization.
Guitar Amplifier Connection (for guitar amplifier)
POWER LED
OPEN
BATTERY:R6(SUM-3)or"AA"SIZEx6
Adjacent batteries
are inserted with
opposite polarity.
Battery
compartment cover
Tab
Battery compartment
Six IEC R6 (size AA) batteries
Rear of GM-200
Open
Getting Connected
Battery Operation / Power-On
NOTE
