ZOOM GM-200
Getting Connected
Getting Connected
4

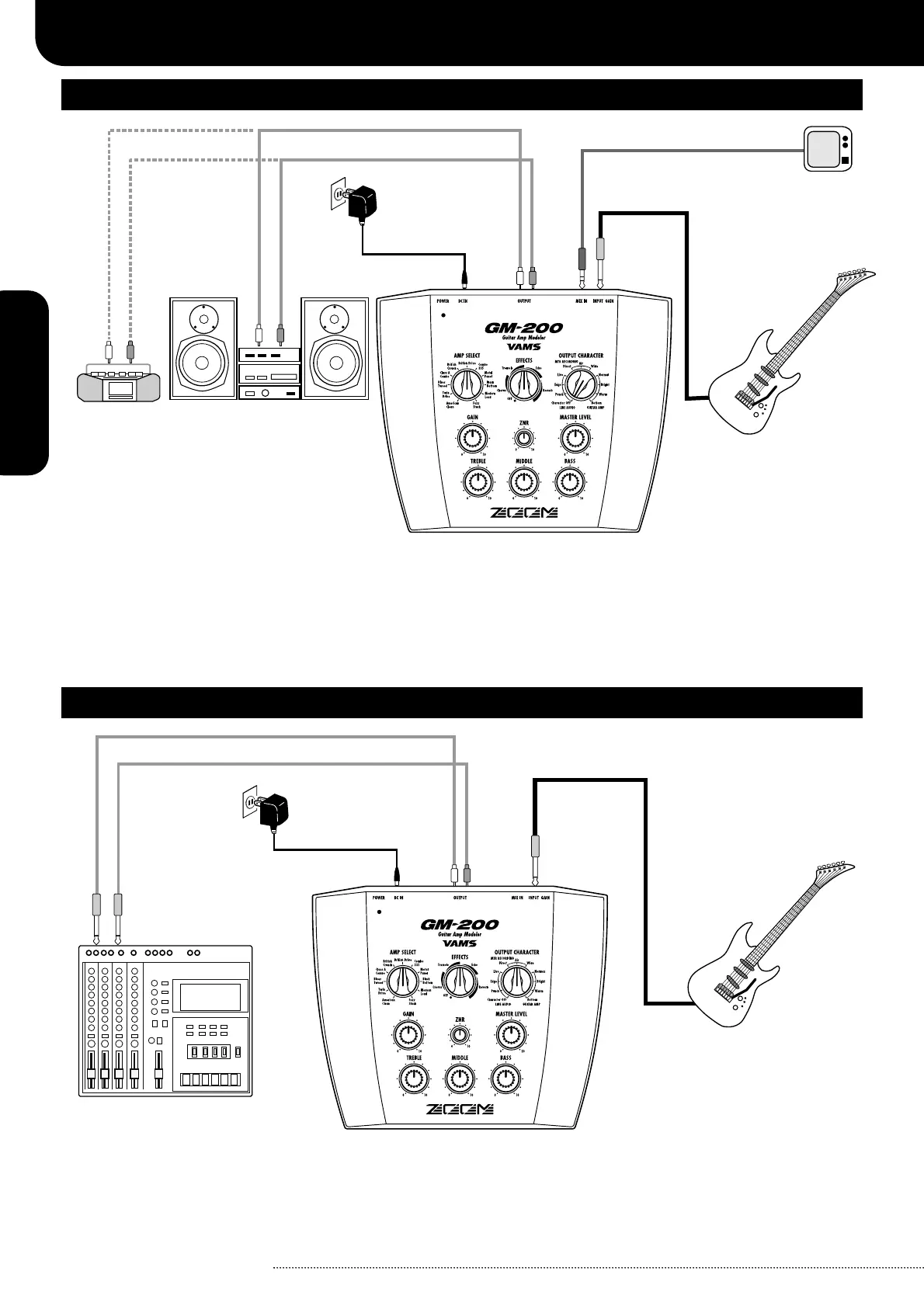

Audio System Connection (for line audio)
MTR/Recording Mixer Connection (for recording)
This example shows how to connect the GM-200 to a Hi-Fi system or a portable stereo such as a radio/ cassette/ CD
player or similar. Use two audio cables with RCA type plugs to connect the OUTPUT L/R jacks of the GM-200 to
the AUX inputs (line inputs) of the stereo system. By connecting the line output of a CD player or MD player to the
MIX IN jack of the GM-200 using a stereo mini phone plug cable, you can mix the sound from a CD or MD to your
session.
This example shows how to connect the GM-200 to a multi- track recorder or a recording mixer or similar. Use a
shielded mono cable with phone plug or two cables with RCA type phono plugs to connect the OUTPUT jack (or
OUTPUT L/R jacks) of the GM-200 to the line inputs of the recorder.
