5

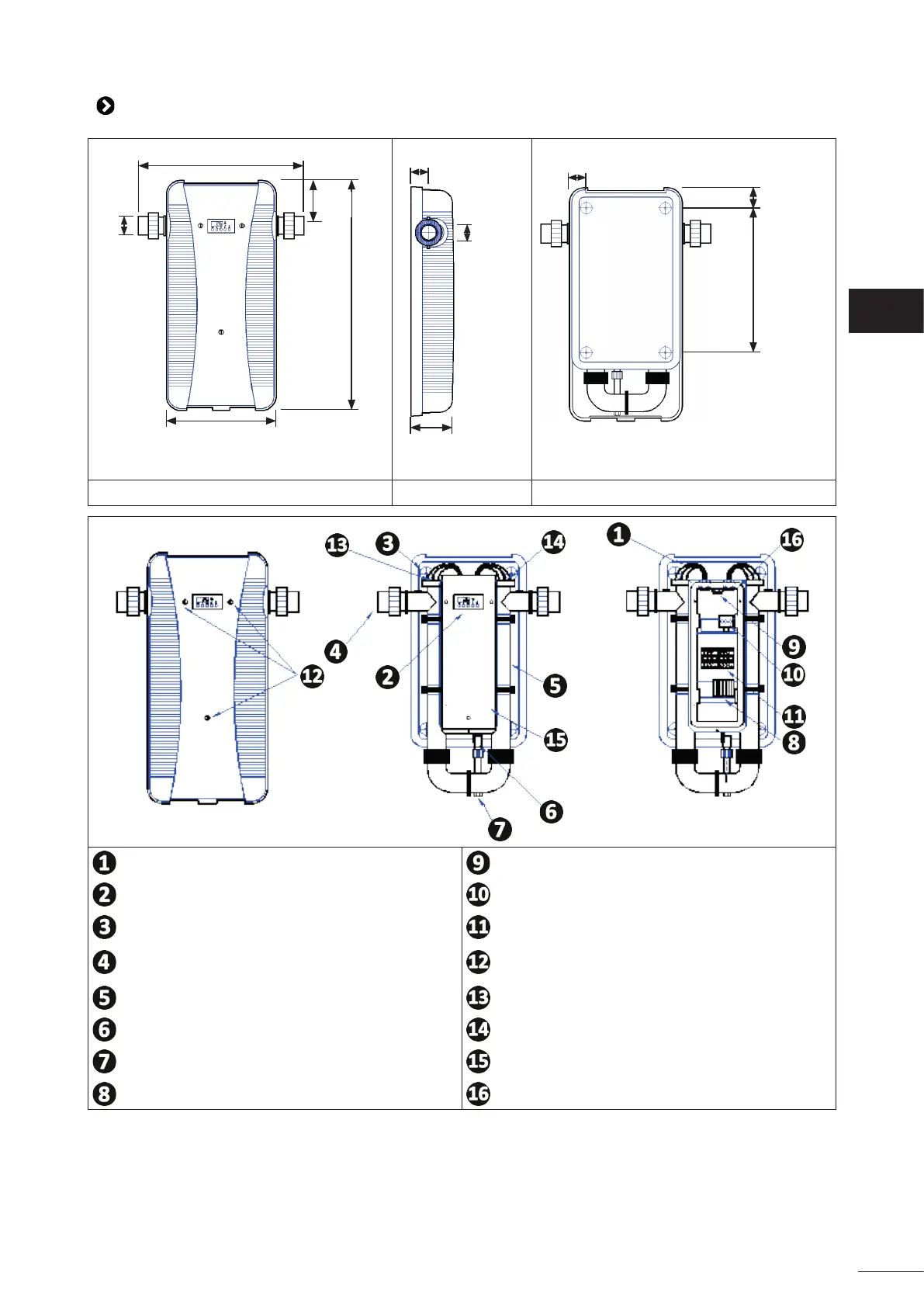

1.3 I Dimensions and marking
600
Ø63
385
160
±2 mm
800
143
60
±2 mm
Ø50
50
495
±2 mm
70
Dimensions in millimetres
Dimensions in milli-
metres
Dimensions in millimetres
Front view Side view Rear view
Power cords of the tanium electrical resistor Fail-safe thermostat
Digital display controller Star point terminal
Heater 4-point aachment support Power contactors
1/2 union ng Ø50 (internal) or Ø63
(external)
Cover aachment screw
Injecon-moulded body Digital thermostat sensor*
Flow switch Safety thermostat sensor*
Heater drain plug Switch box
Electric terminal block Cable gland
* Factory posion for a water ow from le to right.
