CLEANING, MAINTENANCE, STORAGE, DISPOSAL
ZIPPER MASCHINEN GmbH www.zipper-maschinen.at 36
ZI-HB204N | ZI-HB254N
16.6 Check/lubricate chain-drive (feed)
Check the chain for any damage (cracks, break-outs). The chain can be moved by turning the
friction wheel to view all parts. Lubricate chains with normal machine grease.
16.7 Replacing/adjusting the planing knife
NOTE
The planer shaft is suitable for strip knives.
If the planing surface is bad, the planing knives must be replaced. The appropriate di-
mensions can be found in the technical data.
WARNING
Danger from cutting edges! Always wear protective gloves when working on the plan-
ing shaft! Injuries to hands due to sharp cutting edges

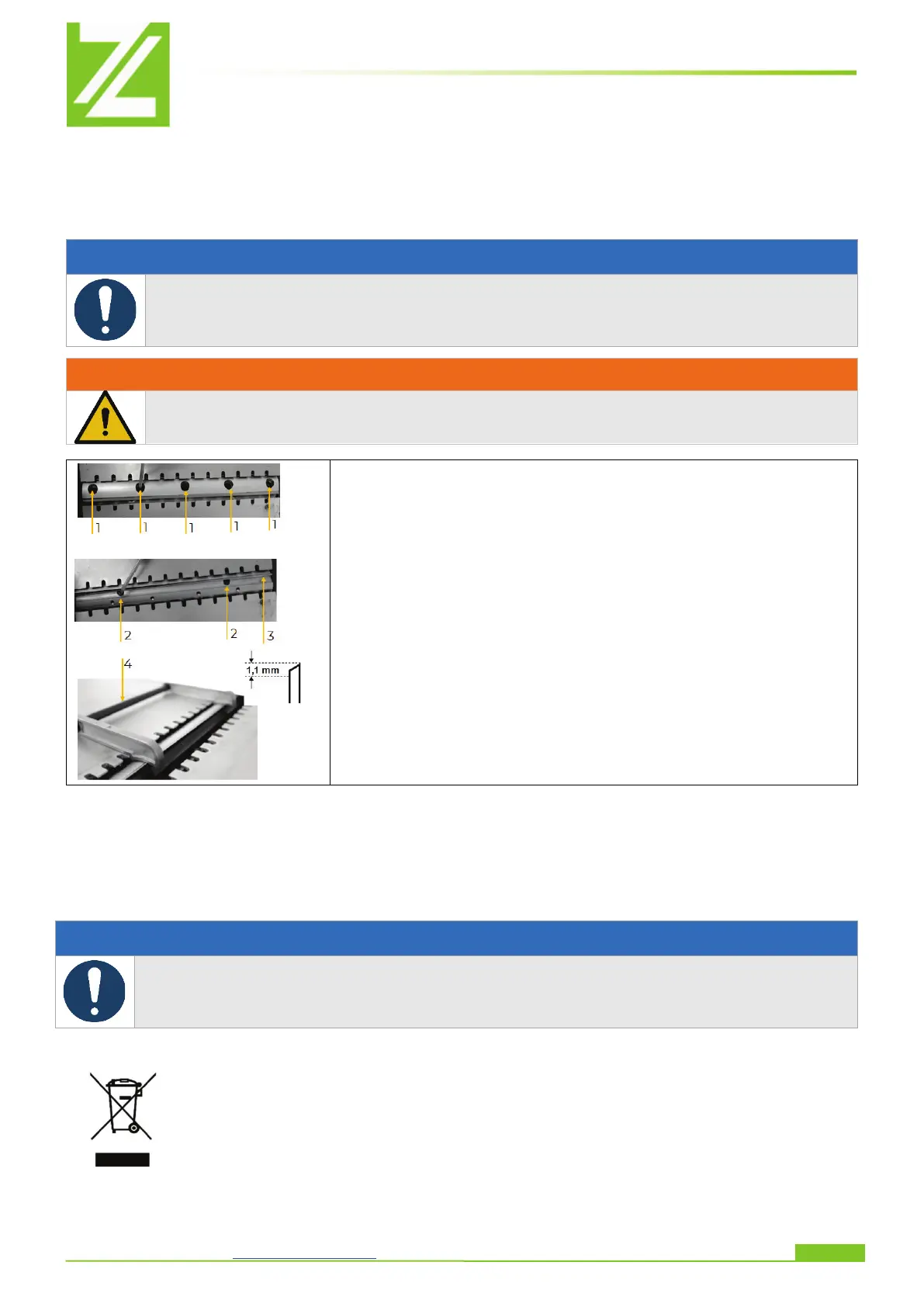

1. Set planer knif cover all the way back and remove the dust
collector hood in order to have access to the planer shaft
2. Loosen the gib screws (1)
3. Remove the gib and the planing knife (3)
4. Clean the planer shaft and gibs
5. Replace sharpend/new planning knife and gib
6. Slightly tighten the gib screws and and perform the adjust-
ment procedure.
7. Place the setting gauge (4) on the planning shaft and adjust
the correct height with setting screws (2).
8. Tighten the gib screws (1) to fix the gib (recommended mini-
mium tightening torque 20Nm)
9. Repeat procedure for all planing knives.
16.8 Storage
Store the machine in a dry, frost-proof and lockable place when not in use. Disconnect the machine
from the power supply. Make sure that unauthorised persons and especially children do not have ac-
cess to the machine.
Prepare the surfaces and lubricate the bare machine parts with an acid-free lubricating oil (e.g. WD40
rust inhibitor).
NOTE
Improper storage can damage and destroy important components. Only store packed or
already unpacked parts under the intended ambient conditions!
16.9 Disposal
Observe the national waste disposal regulations. Never dispose of the machine,
machine components or operating equipment in the residual waste. If necessary,
contact your local authorities for information regarding available disposal options.
If you purchase a new machine or equivalent equipment from your specialist
dealer, he is obliged in certain countries to dispose of your old machine properly.
