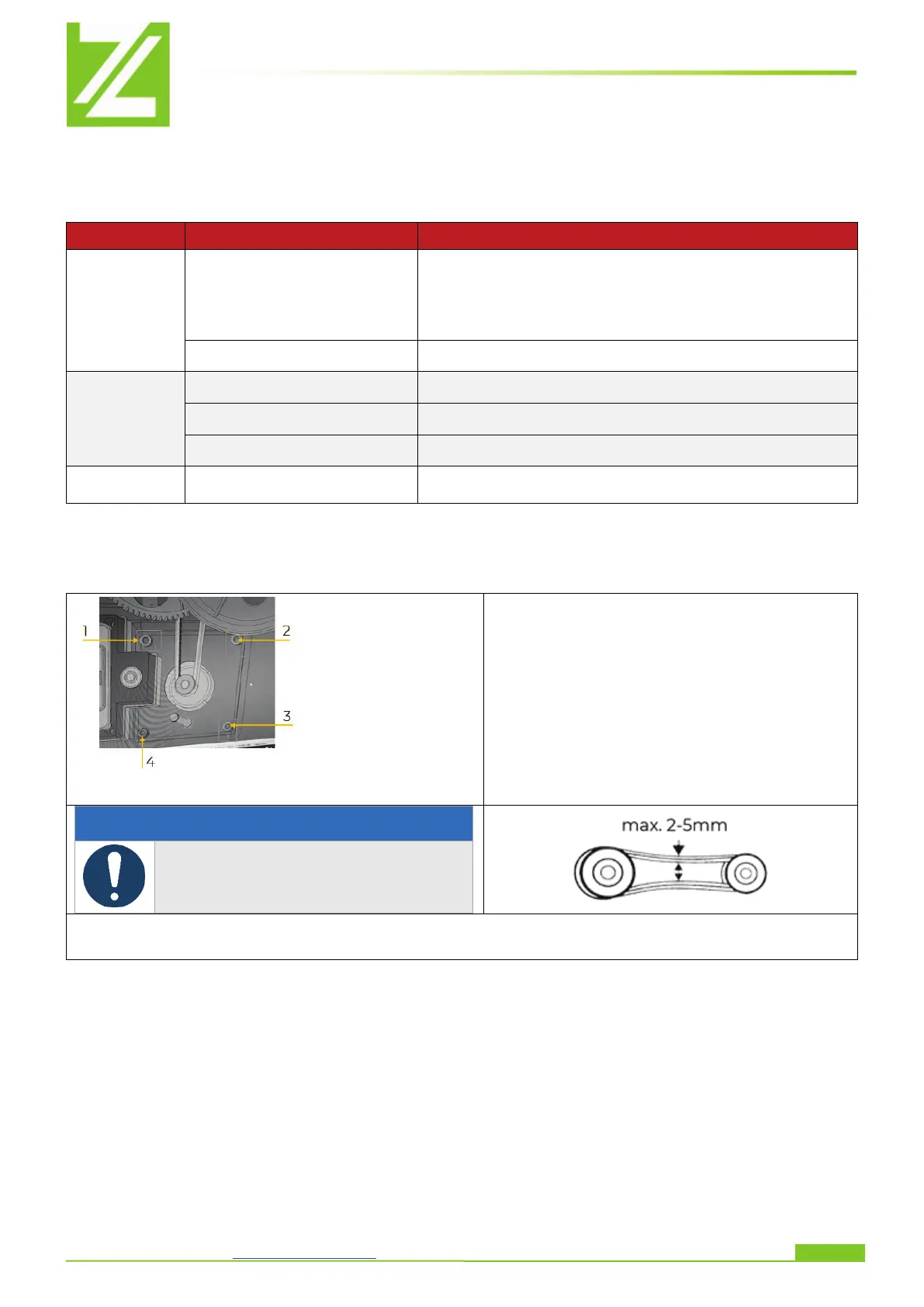

CLEANING, MAINTENANCE, STORAGE, DISPOSAL
ZIPPER MASCHINEN GmbH www.zipper-maschinen.at 35
ZI-HB204N | ZI-HB254N
16.2.1 Maintenanceplan
Wear of machine depends strongly on operation condition. The following intervals are valid when us-
ing the machine within the operation limits
Interval Componente Activity
Before every
usage
Anti-kick-back device
At least once per work-shift by inspection to verify
that they are in good working condition, eg have no
impact damages to the surface and that the anti-kick
back device fall back freely due to its own weight after
lifting.
Machine Cleaning (from dust and chips)
monthly
V-Belt Check retighten or replace if necessary.
Feed/Pull-out roller Check and clean thoroughly
Height adjustment Control, lubrication
Half yearly Chain-drive (feed)
Check for damage/wear, lubricate, replace if neces-
sary
16.3 Checking/adjusting/replacing the V-Belt
The belt tension is set correctly for new machines ex factory. By stretching the belts over the running
time, retensioning of the belt is necessary.
To check/adjust or replace the belt, remove the planer fence and the belt/chain cover.
To adjust the V-belt, first loosen the three
screws (1-3) (it is not necessary to remove the
screws completely), then turn the motor clo-
ckwise to tighten the belt and finally tighten
the screws.
If you turn the motor clockwise and find that
it is difficult to turn, you can loosen screw (4)
slightly.
NOTE
Do not over-tension the V-belt! Ten-
sion the V-belt only until sufficient
power transmission is ensured.
For changing the drive-belt, completely de-tension the belt, pull it over and insert new belt. Then
establish correct belt tension again.
After completion, remount the planer fence and the cover.
16.4 Lubricate height adjustment (thicknesser)
Remove chips and dust from the machine.
Remove the belt/chain cover (loosen the screws and remove the cover).
Set the thickness table all to the top.
Clean spindle/height adjustment unit and then grease with machine grease.
Move the thickness planing table 1x up and down to distribute the grease.
Mount the cover again (hang in the cover and tighten the screws).
16.5 Check/clean anti-kick-back device
Check: Lift up Anti-kick back device, it must fall back on your own.
Cleaning: Remove dust and chips or resin residues.
