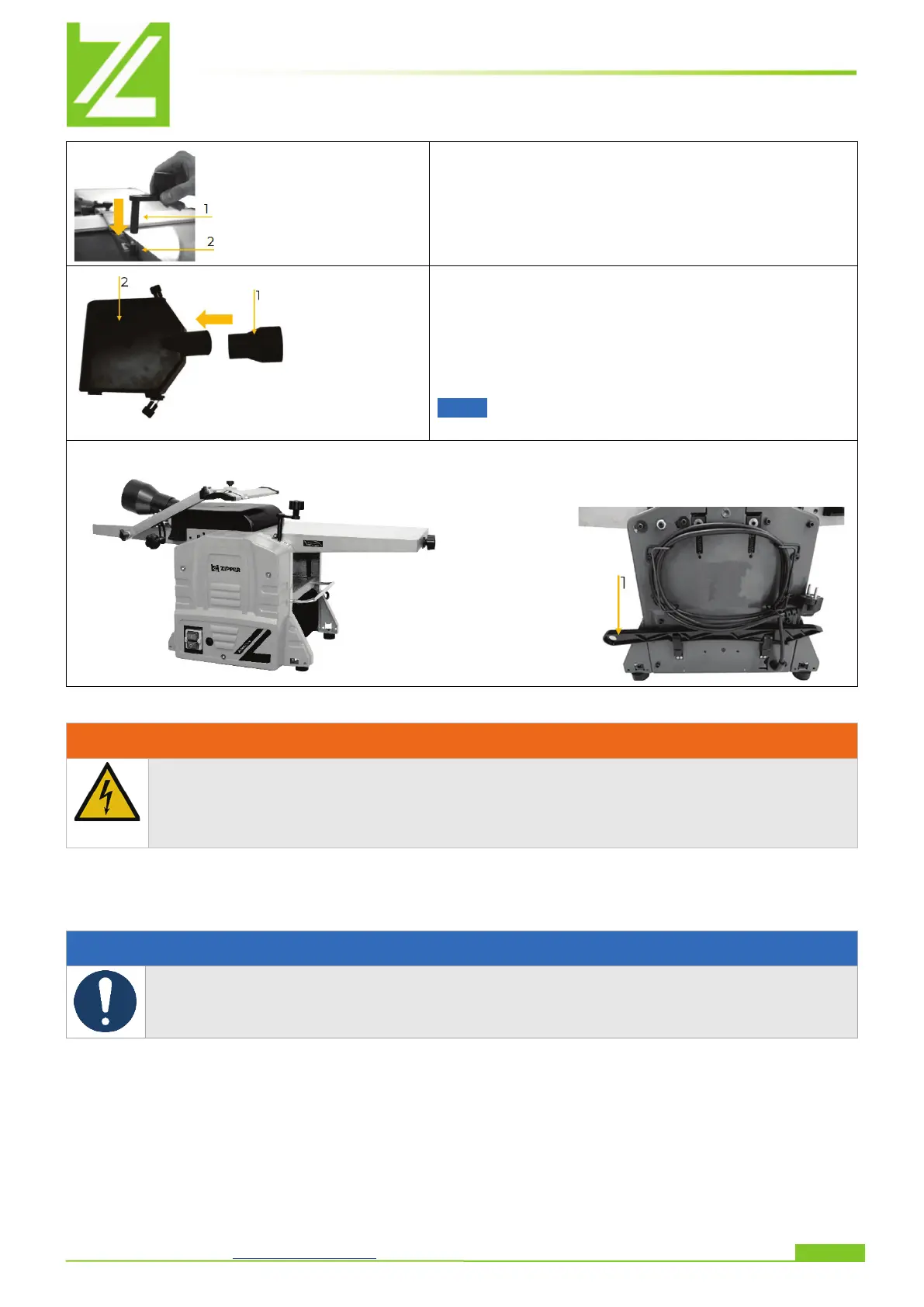

ASSEMBLY
ZIPPER MASCHINEN GmbH www.zipper-maschinen.at 29
ZI-HB204N | ZI-HB254N
5. Assembly hand crank height adjustment
thicknesser
• Plug the hand crank height adjustment thick-
nesser (1) on the spindle (2)
6. Assembly dust collector plug adaptor
• Loosen the screws on the dust collector plug
adaptor (1)
• Insert the extension onto the dust collector hood
(2)
• Refix the screws
NOTE: The assembly of the dust collector hood is ex-
plained in detail in the chapter dust collection plug
push stick tray (1)
14.5 Electrical connection
WARNING
Dangerous electrical voltage!
The machine may only be connected to the power supply and the associated
checks carried out by a qualified electrician or under the instruction and supervi-
sion of a qualified electrician!
• Check, whether the neutral connection (if existing) and the protective grounding function
properly.
• Check, whether the supply voltage and the frequency correspond to the specifications of
the machine.
NOTE
Deviation of the supply voltage and frequency!
A deviation from the value of the supply voltage of ±5 % is permissible.
A short-circuit fuse must be provided in the power supply system of the machine!
• Use a supply cable that fulfils the electrical requirements (e.g. H07RN, H05RN) and take
the required cross-section of the supply cable from a current carrying capacity table. Pay
attention to the measures for protection against mechanical damage.
• Make sure that the power supply is protected by a residual current circuit breaker.
• Connect the device only to a properly grounded outlet.
• When using an extension cable, make sure that the dimension matches the connected
load of the machine. The connection power can be found in the technical data, the corre-
lation of cable cross-section and cable lengths can be found in the technical literature or
obtain information from a specialist electrician.
• A damaged cable must be replaced immediately.
