OPERATION
ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at 26
ZI-BSF1500

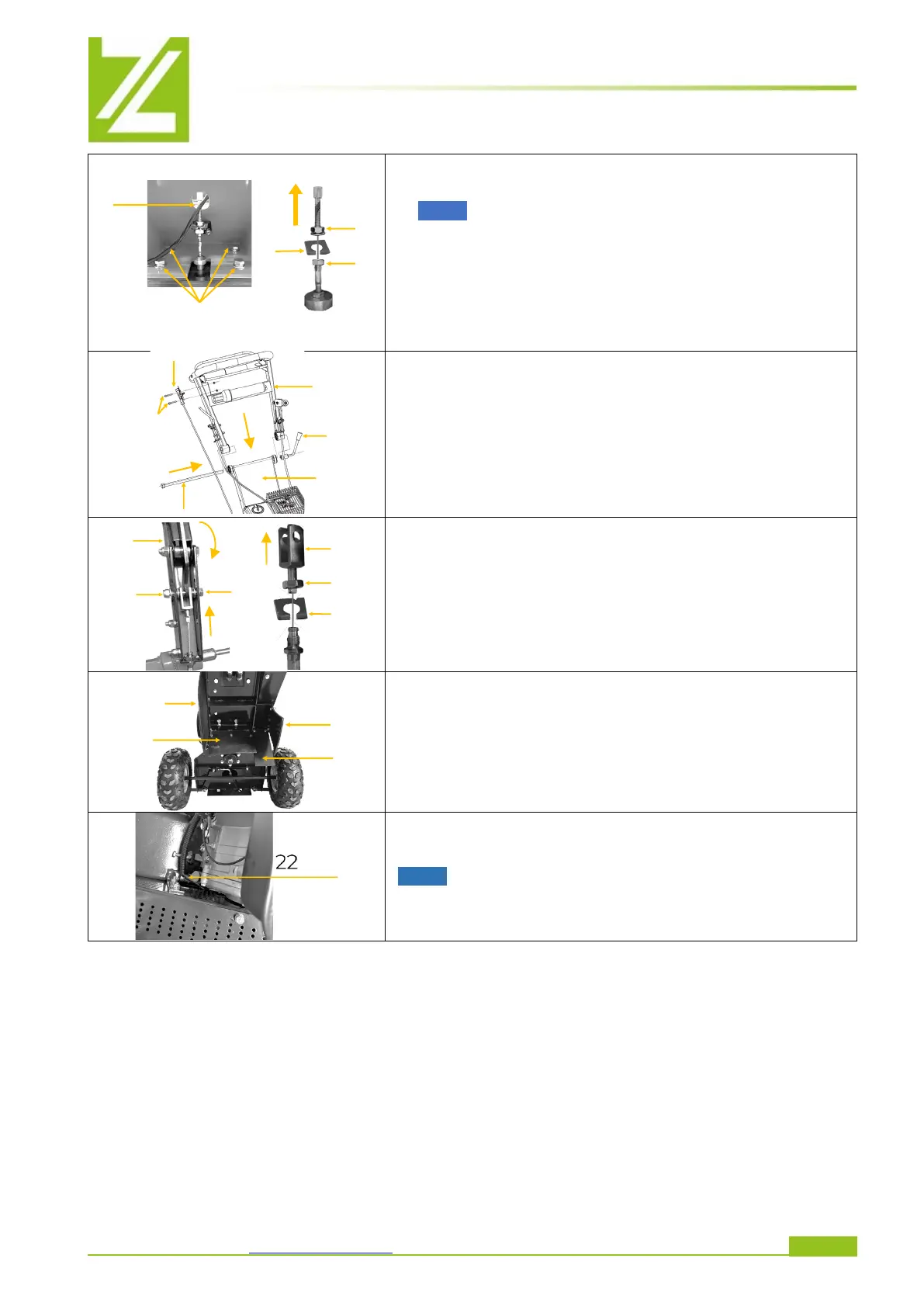

3. Screwing and connection
• Steering device with 4 hexagon screws M12×45 (6)
including washers and nuts.
NOTE: Make sure that the throttle cable is first inserted
through the recess (10) in the steering device.
• Mount the throttle cable on the inner bracket of the
steering device
• Unscrew the nut (7) and slide it down
• Now pull on the gas cable (8) so that you can insert the
cable into the recess (9) of the bracket
•
Release the throttle cable and tighten it with nut (x)
and tighten it with nut (x)
4. Install the upper steering device
• Connect the upper steering device (11) to the lower
steering device (12) with hexagon screw M16×360 (13)
and fix it with the clamping lever (14).
• Fix the throttle lever (15) to the upper steering device
with 2 hexagon screws M6×40 with elastic and flat
washers and lock nuts M6 (16).
5. Install the brake cable
• Unscrew the lock nut (17) and pull the coupling (18)
upwards to insert the brake cable into the opening (19)
of the brake unit.
• Then screw the lock nut (17) back on.
• Push the brake lever (22) down to connect the clutch to
the clutch mechanism.
• Finally, fix with screw (20) and nut (21) throug the clutch
6. Install rubber protective mats
• Secure the rubber protective mats to the underside of
the machine as shown using the M8×25 hex bolts, M8
lock nuts, and washers.
(Numbering of the mats is as per the scope of delivery)
7. Connect the safety switch plug
• Connect the safety switch plug (22) to the handle.
•
NOTE: When laying the cable, make sure that it cannot
be crushed during the swivel movement of the milling
unit.
15 OPERATION
Only operate the machine when it is in a perfect condition. Before each operation, a visual
inspection of the machine must be carried out. Safety devices and operating elements must be
checked carefully. Check screw connections for damage and tight fit.
15.1 Operating instructions
• Check the fuel system regularly. Check for wear, leaks, loose or missing fuel hoses and shut-off
valves. Repair or replace defective parts.
• Check that the machine is in perfect condition. Damaged or missing parts must be replaced or
repaired immediately.
• The running engine emits carbon monoxide, which is odorless and tasteless and can lead to
unconsciousness. Avoid inhaling the exhaust fumes.
• Never pull the starter handle when the engine is running. This damages the engine.
• Never work near sources of sparks or flames. Never smoke near the running machine.
• Keep hands, feet and clothing away from moving machine parts (drive belts, milling cutters,
etc.).
• Be aware of possible kickback when coming into contact with the stump.
• Only work when there is sufficient daylight.
6
10
8
9
7
11
12
13
15
16
14
21
17
20
19
18
22
4-4
4-1
4-3
4-2
