ASSEMBLY
ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at 21
ZI-ASA550B

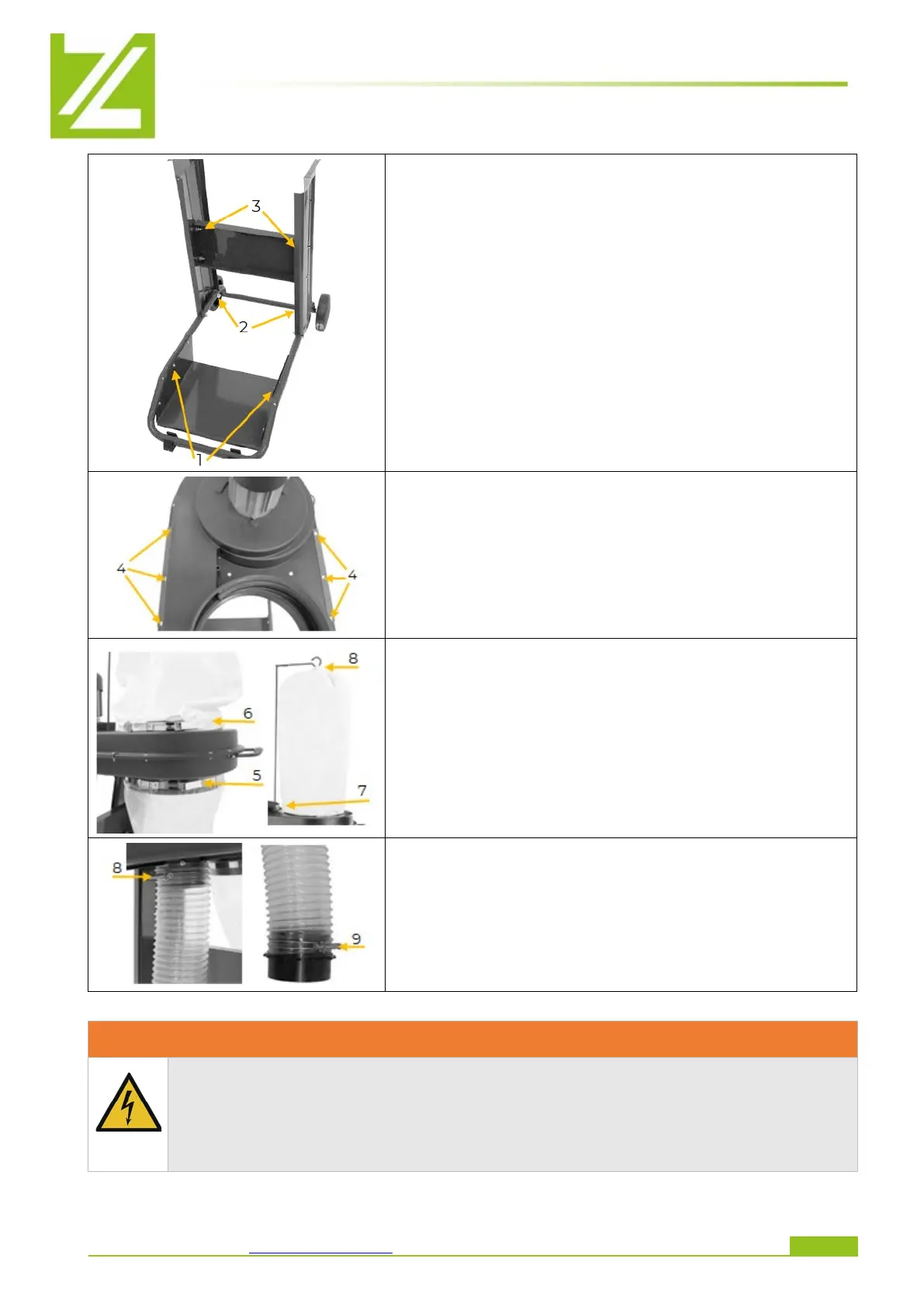

1. Machine base
• Mount the base plate to the base frame with 6 M5×20
screws and nuts (1).
• Mount both side plates to the base frame with 4
M5×20 screws and nuts (2).
• Attach the connecting panel on both sides to the side
plates with flat head screws M8×12 and nuts (3).
2. Extraction unit
• Remove all screws and nuts from the extraction unit.
• Fix the extraction unit to the side plates with 3 flat
head screws M5×20 including nuts per side (4).
• Tighten all nuts firmly.
3. Chip bag and filter bag
• Fix the chip bag to the lower edge of the extraction
unit with the clamping band (5).
• Thread the clamping band into the loops of the filter
bag and fix the filter bag to the upper edge of the
extraction unit (6).
• Insert the holder into the extraction unit (7).
• Hang up the filter bag (8).
4. Extraction hose
• Fix the extraction hose to the extraction unit (8) with
the hose clamp.
• Fix the hose adapter at the end of the extraction hose
with a hose clamp (9).
14.3 Electrical connection
WARNING
Dangerous electrical voltage!
Risk of injury due to dangerous electrical voltage!
The machine may only be connected to the power supply and the associated
checks carried out by a qualified electrician or under the instruction and
supervision of a qualified electrician!
• Check, whether the neutral connection (if existing) and the protective grounding function
properly.
