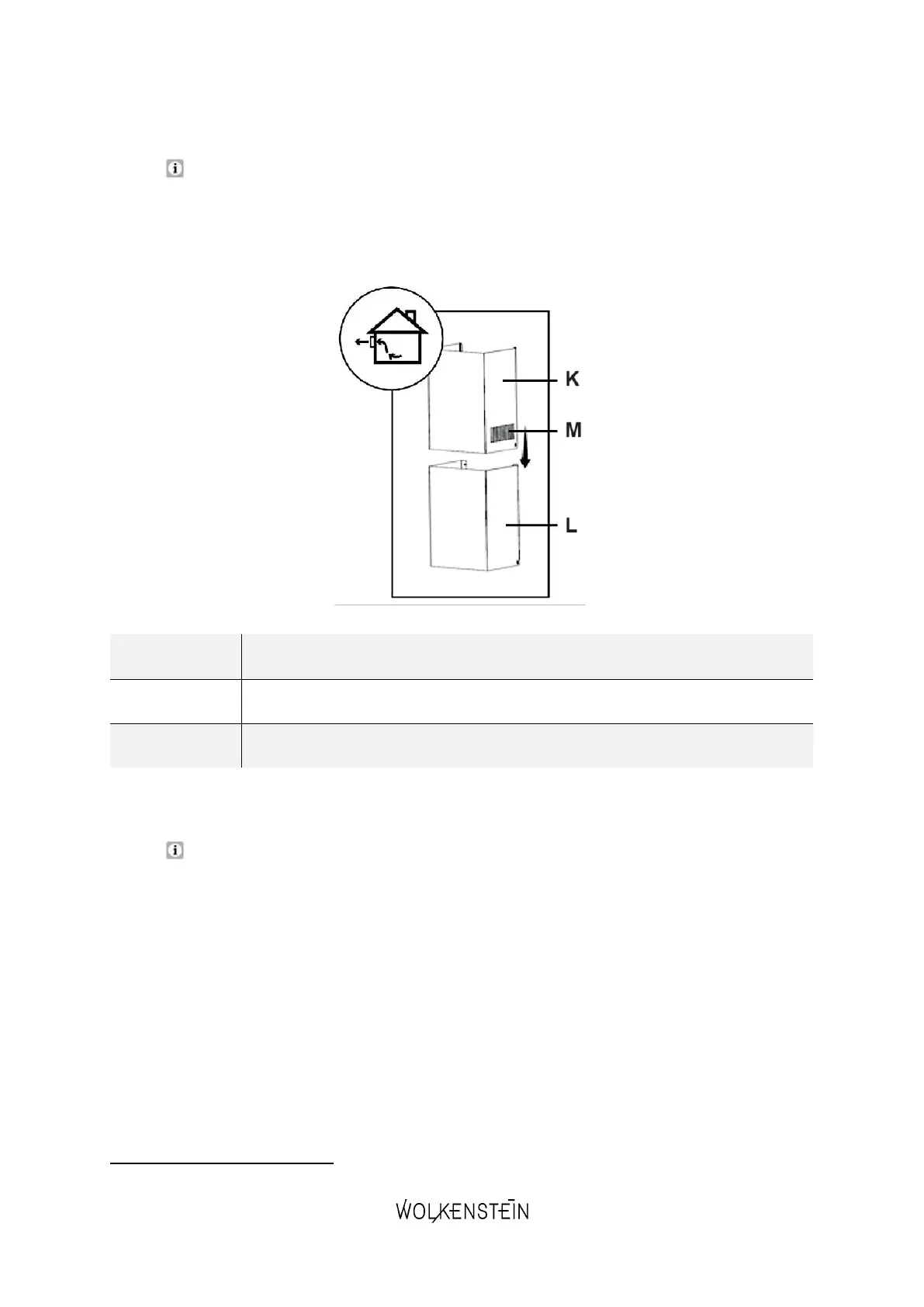

a. INSTALLATION OF THE CHIMNEY / EXTRACTION MODE

The air vents

18

(M) of the upper chimney (K) must face downwards and

be covered by the lower chimney (L). S. fig. below. The air vents in the

inner chimney are not available on all appliance models. If your appliance

model does not have air vents in the inner chimney, you can skip this point.

K

INNER CHIMNEY

L

OUTER CHIMNEY

M

AIR VENTS

b. INSTALLATION OF THE CHIMNEY / RECIRCULATION MODE

The air vents (M) of the upper chimney (K) must face upwards and not

be covered by the lower chimney (L). S. fig. below. The air vents in the

inner chimney are not available on all appliance models. If your appliance

model does not have air vents in the inner chimney, you can skip this point.

18

Depending on model.
